Notifier LCD-80 User Manual

20 PN 15037:D2 9/9/02

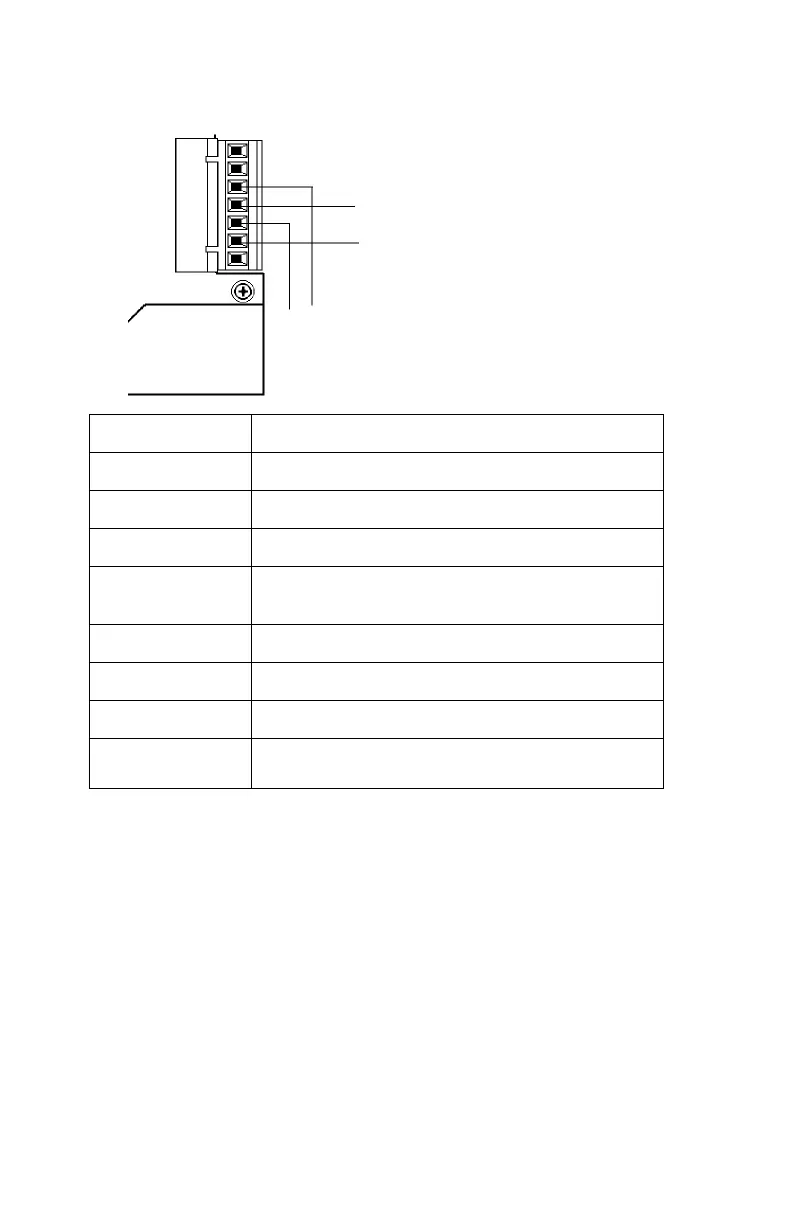

Figure 2-5 Supplying Power to the LCD-80
7
6
5
4
3
2
1
P1
From Main Power Supply
(-) Common
(+) 24 VDC Power
(+) (-) To next LCD-80
LCD-80
24 VDC (+) Common (-)
MPS-24A
TB3-3 TB3-4
MPS-24B
TB2-1 TB2-2
AFP-200
TB1-3 TB1-4
AFP-300,
AFP-400, MPS-6
TB2-1 TB2-2
APS-6R
TB2 + TB2 -
FCPS-24
TB4 + TB4 -
NCA
TB1-2, TB1-3, or TB1-4 TB1-5, TB1-6, or TB1-7
NFS-640
TB7 Nonresettable
24VDC +
TB7 Nonresettable
24VDC -
