NV-DVR1104/CD, NV-DVR1108/CD and NV-DVR1116/CD ver. 1.1 - user's manual
All rights reserved © NOVUS Security Sp. z o.o.
10
DEVICE POWER UP

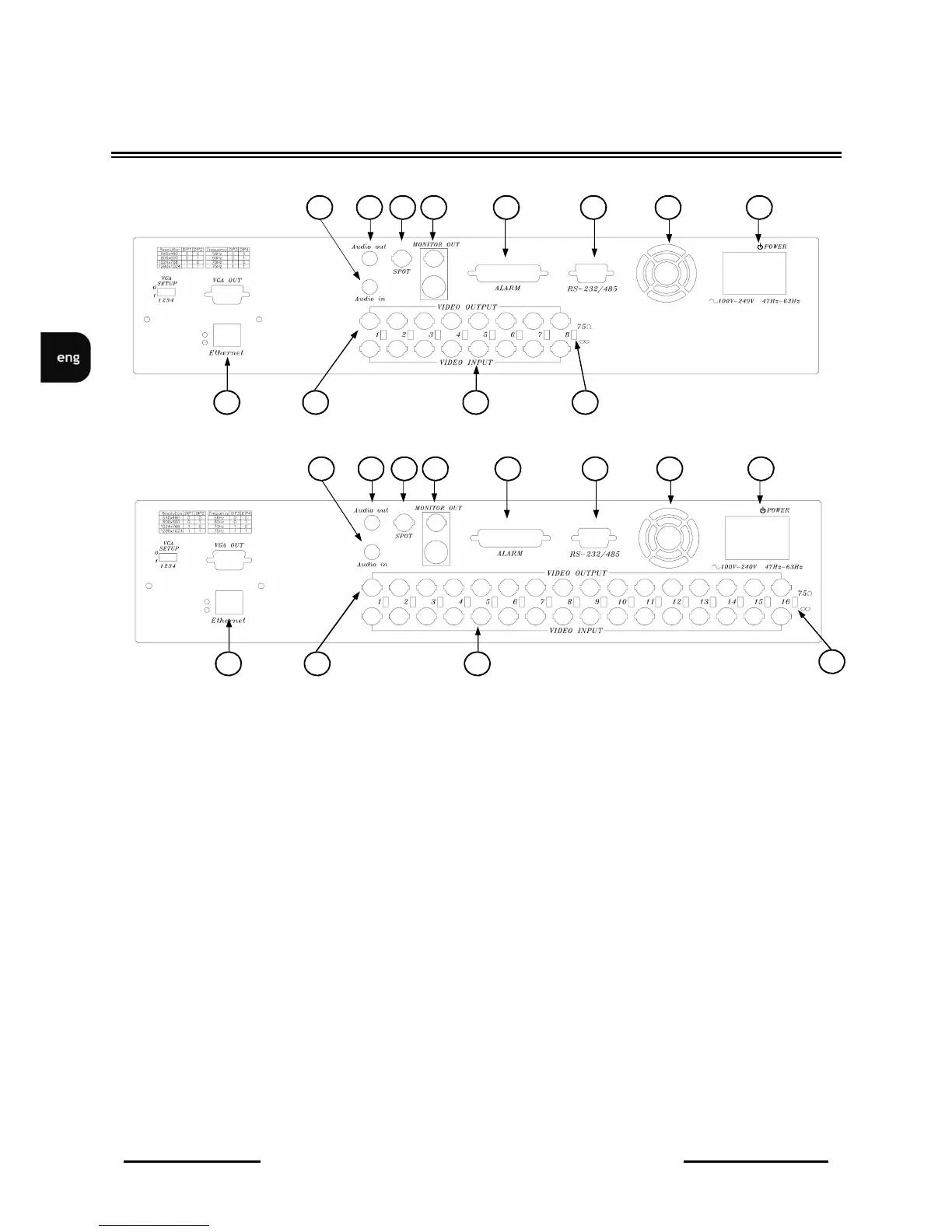

2.2 Electric connectors on back panel of the multiplexers.
1. Audio in: 1 x RCA audio recording input;
2. Audio out : RCA audio output;
3. SPOT: video output for spot monitor connection, only full screen display available;
4. MONITOR OUT: main monitor connection (1 x BNC and 1 x S-Video connectors available);
the possibility of selection from various display modes
5. ALARM: alarm inputs, alarm outputs;
6. RS-232/485: D-Sub 9 PIN connector, for device remote control and PTZ camera control;
7. cooling fan (do not cover!);
8. POWER ~90~260V : Power supply socket;
9. 75Ω / ∞: video inputs termination switch;
10. VIDEO INPUT: video inputs for camera connection;
11. VIDEO OUTPUT: loop-through video outputs;
12. Ethernet: RJ-45 socket for net computer connection;
2 1 3 4 5 6 7 8
10 12 11
2 1 3 4 5 6 7 8
10 12 11
NV-DVR1108/CD
NV-DVR1116/CD
9
9
