NV-DVR1104/CD, NV-DVR1108/CD and NV-DVR1116/CD ver. 1.1 - user's manual
All rights reserved © NOVUS Security Sp. z o.o.
11
DEVICE POWER UP
1. CAMERA OUT: loop-through video outputs;
2. MONITOR OUT: main monitor connection (1 x BNC and 1 x S-Video connectors available);
the possibility of selection from various display modes;
3. Audio out : RCA audio output;
4. cooling fan (do not cover!);
5. POWER ~90~260V : Power supply socket;
6. ALARM,RS-232/485: alarm inputs, alarm outputs, remote control and PTZ camera control terminal;
7. Audio in: 1 x RCA audio recording input;
8. CAMERA IN: video inputs for camera connection;
9. Ethernet: RJ-45 socket for net computer connection;

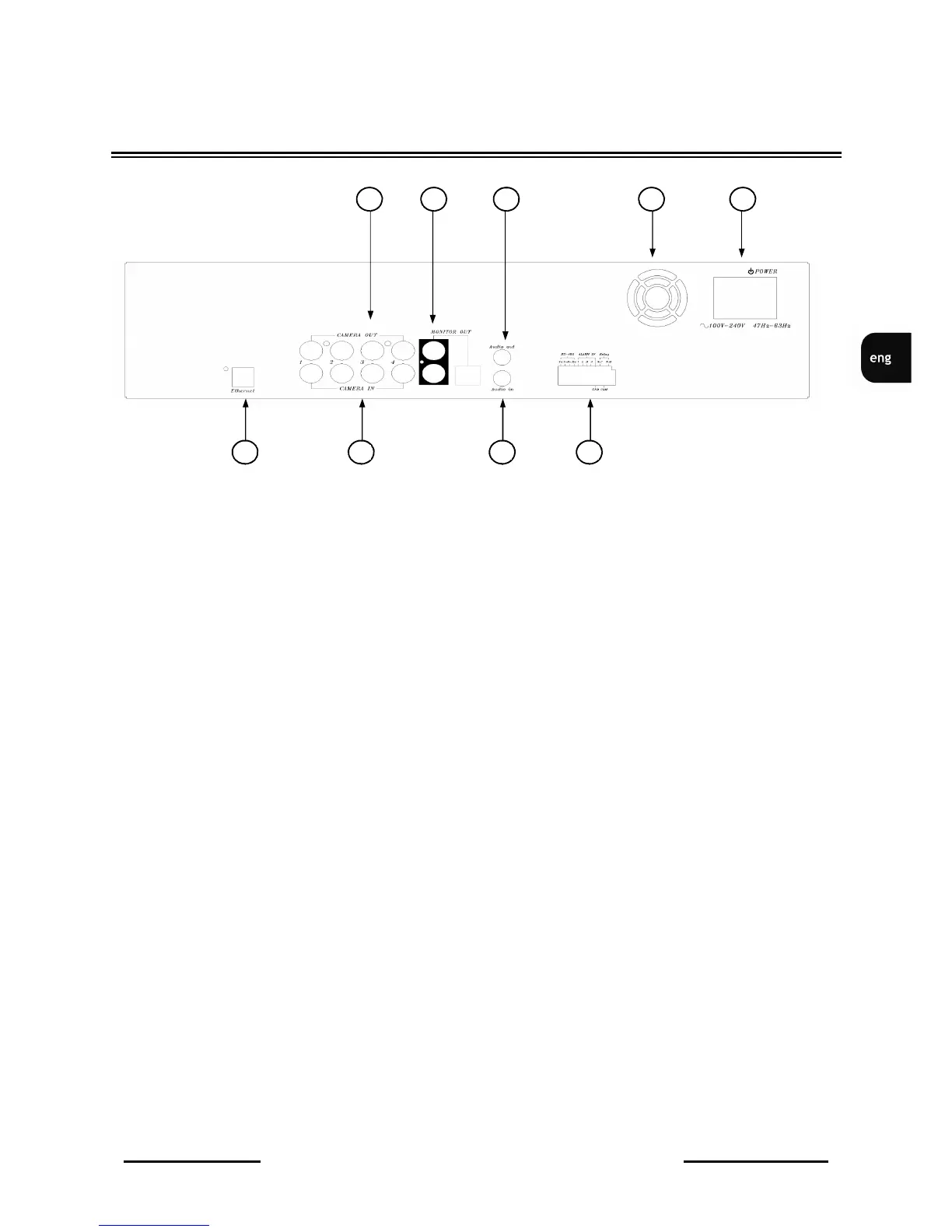

NV-DVR1104/CD
1 2 3
6
4 5
7 9 8
