- 12 -
LUBRICATION
GREASING PROCEDURE
Manual greasing for hammers without AUTOLUBE system.
1. Place the hammer in a vertical position, applying enough downforce to push the tool
up into the hammer.
2. Turn the machine off.
3. Grease the hammer until grease begins to come out around the tool and lower
bushing.
4. Grease hammer at least once an hour, or install an NPK Autolube System. See
“Correct Grease and Grease Intervals” for a more exact greasing procedure.

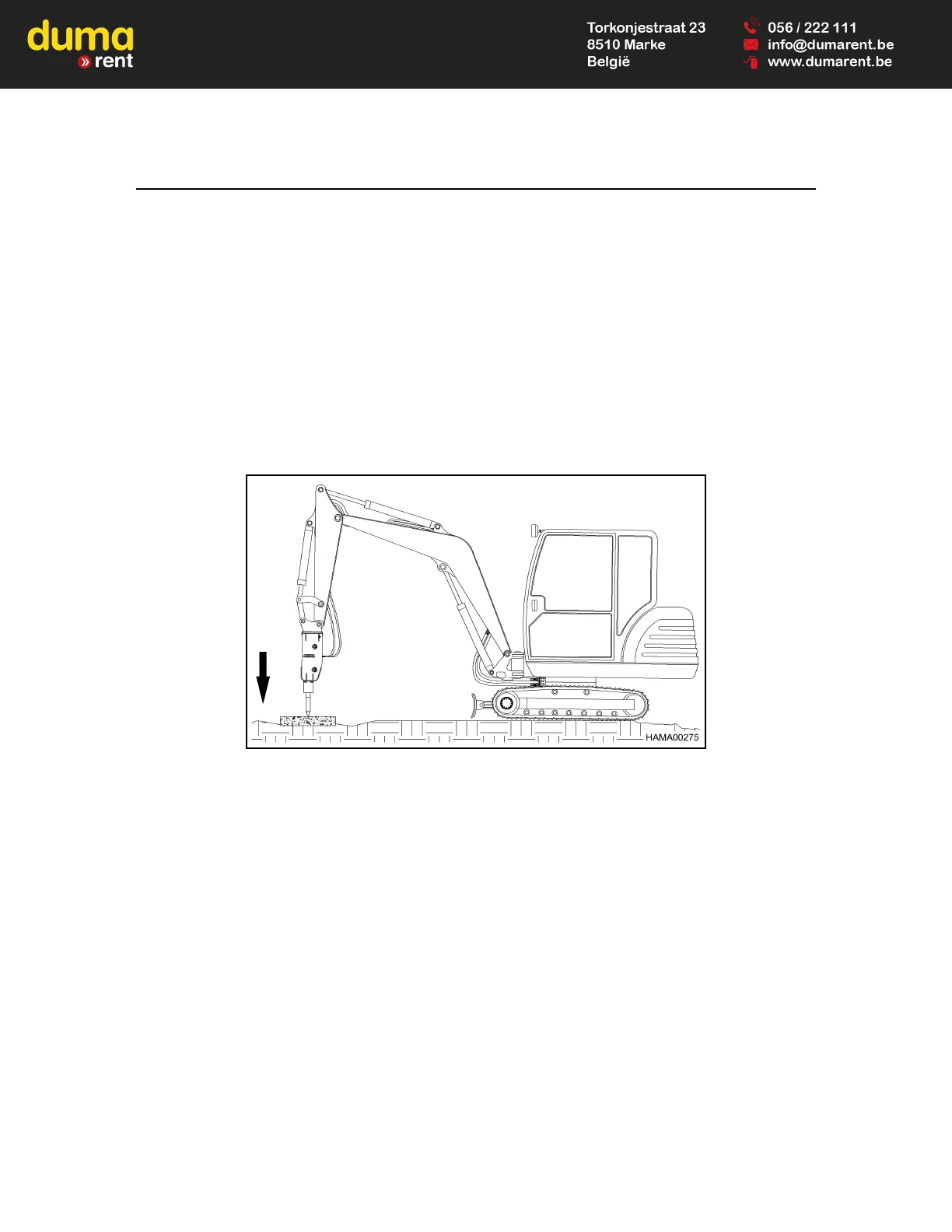

APPLY DOWNFORCE TO PUSH TOOL UP INTO HAMMER
NOTE: USE A GOOD QUALITY EP #2 LITHIUM BASED GREASE WITH WEAR
INHIBITING ADDITIVES, SEE PAGES 13, 14, AND 15.
