Operation of SMH/HMH Series
4 – 2 – 4 ContraAngle Attachment 200, Primado Contra Angle Attachment

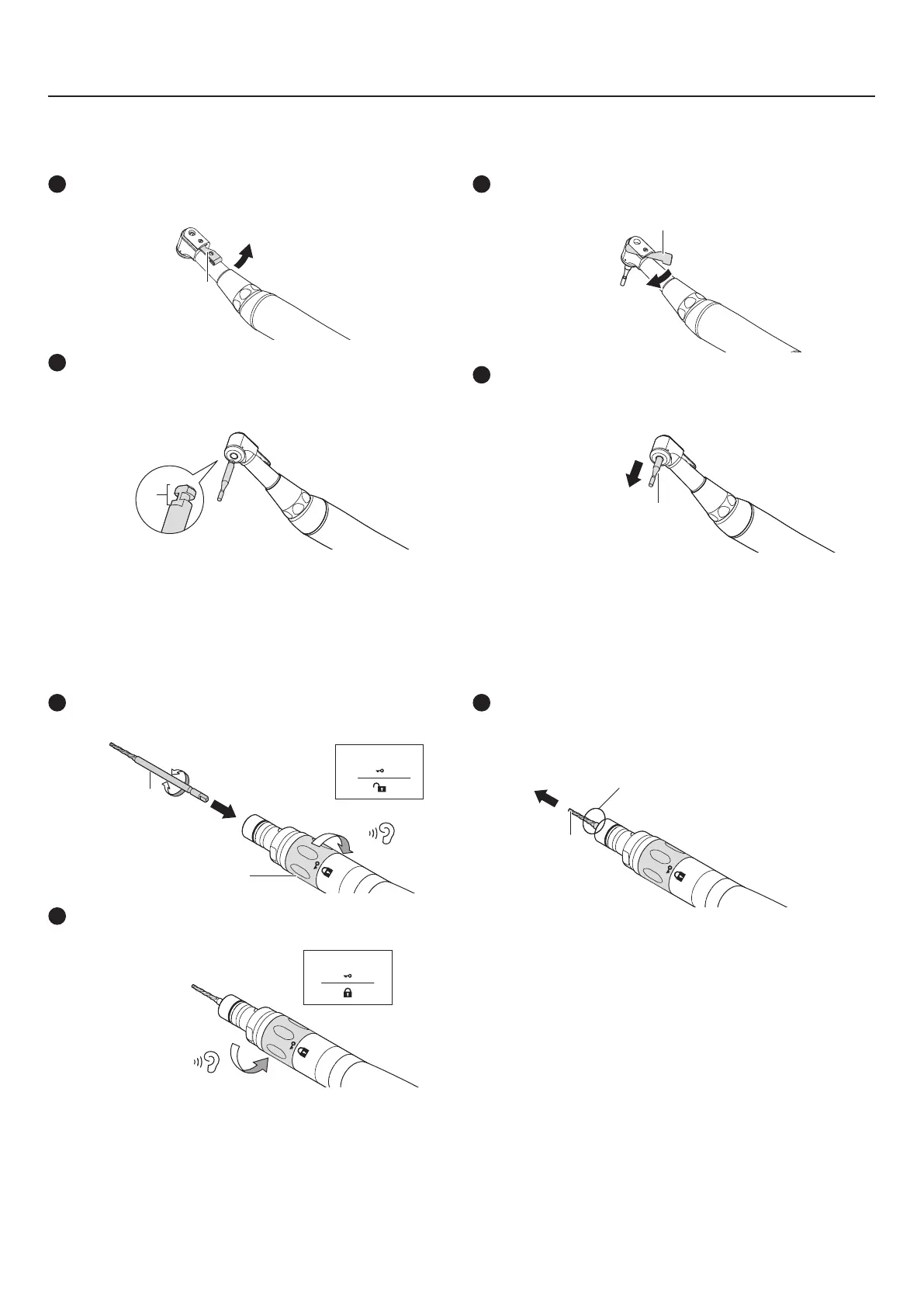

Mounting and Removing the Cutting Accessories (Commercially Available)
_ Mounting
1
Slide the Latch Ⓐ in the direction of Ⓑ.
Ⓐ
Ⓑ
2
Match the notch of the bur Ⓒ to the corresponding part of the
shaft and push the bur all the way through.
Ⓒ
3
Slide the Latch Ⓐ in the direction of Ⓓ to set the bur in place.
Ⓐ
Ⓓ
4
After mounting the bur Ⓔ, pull it lightly to confirm that it is
securely connected to the Attachment.
Ⓔ
_ Removing
Perform steps 1 through 3 of the mounting procedure in the reverse order.
4 – 2 – 5 Craniotome Handpiece 200, Craniotome Handpiece
Mounting and Removing the Cutting Accessories (Optional)
_ Mounting
1
Rotate the Twist Collet Ⓐ in the direction of Ⓑ until it clicks.
Insert the Cutting Accessory Ⓒ all the way while twisting it.
Ⓒ
Ⓑ
Ⓐ
Ⓒ
Chuck Open
2
Rotate the Twist Collet Ⓐ in the direction of Ⓓ until it clicks.
Ⓓ
Chuck Close
3
Pull the Cutting Accessory Ⓒ lightly to confirm that it is
securely connected to the Attachment.
Ⓒ
Securely
_ Removing
Perform steps 1 and 2 of the mounting procedure in the reverse order.
