Terminal Connection for RS232

If control via serial connection is going to be used (i.e. using Telnet or SSH), serial control can be achieved using the “USB

Console” port (all models) or the “RS232” port (E-16D only) or “RS232 AUX” port (E-5D only). A terminal connection is

accessible by the user “root” only.

To use the “RS232” port

, connect one end of a CAT5 patch cable (supplied) to the port labeled “RS232” on the rear of the

ENVIROMUX. Plug the other end of the CAT5 cable into an RJ45-to-DB9F adapter (supplied), and connect the adapter to the

RS232 port on the control terminal. Follow the instruction in the Serial Control Manual

for configuration and use of the Serial

Control feature.

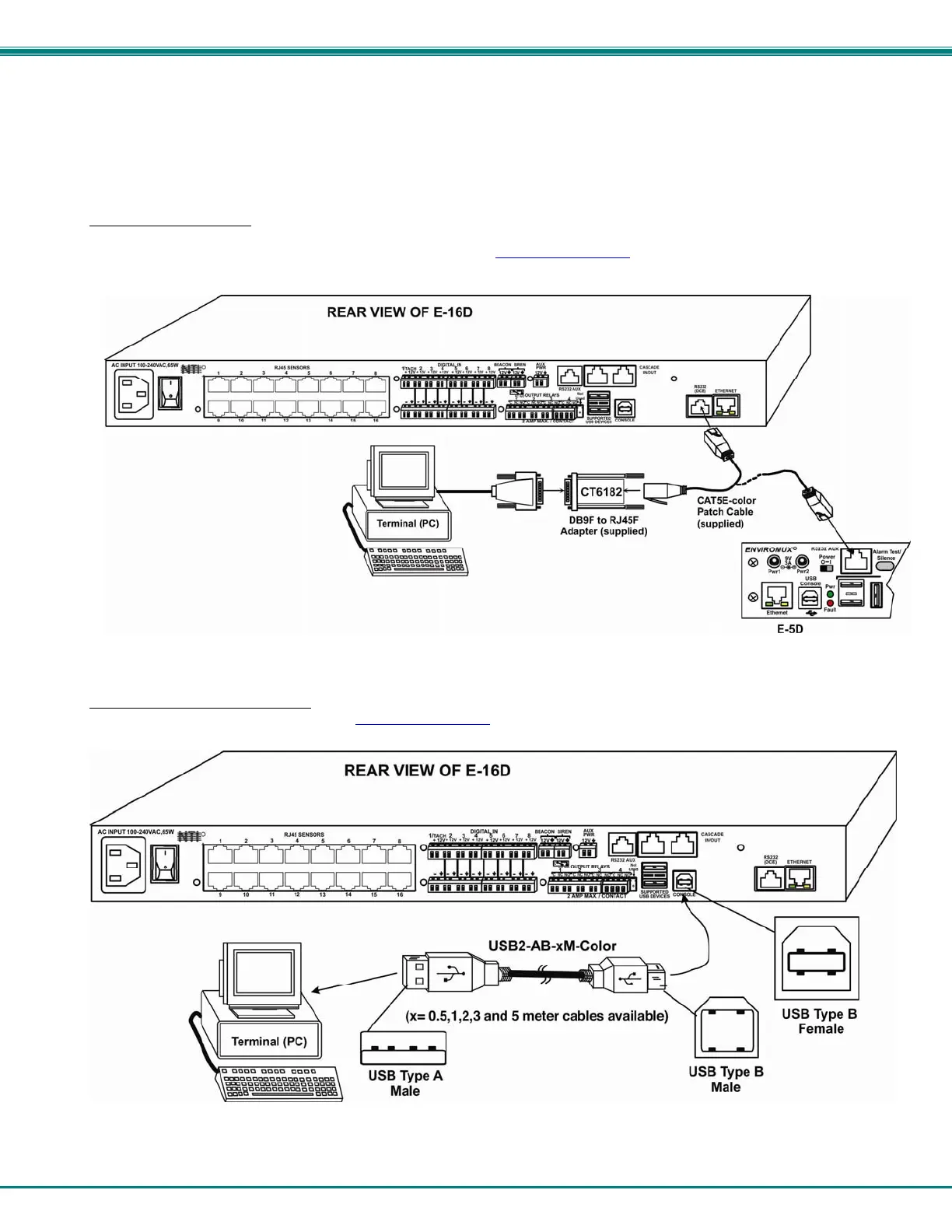

Figure 14- Connect a terminal for direct RS232 serial communication

To use the USB “CONSOLE” port, connect a USB cable (2 meter cable supplied) between the ENVIROMUX and your PC.

Then install the drivers as described in the Serial Control Manual.

Figure 15- Connect a terminal using USB Console port
