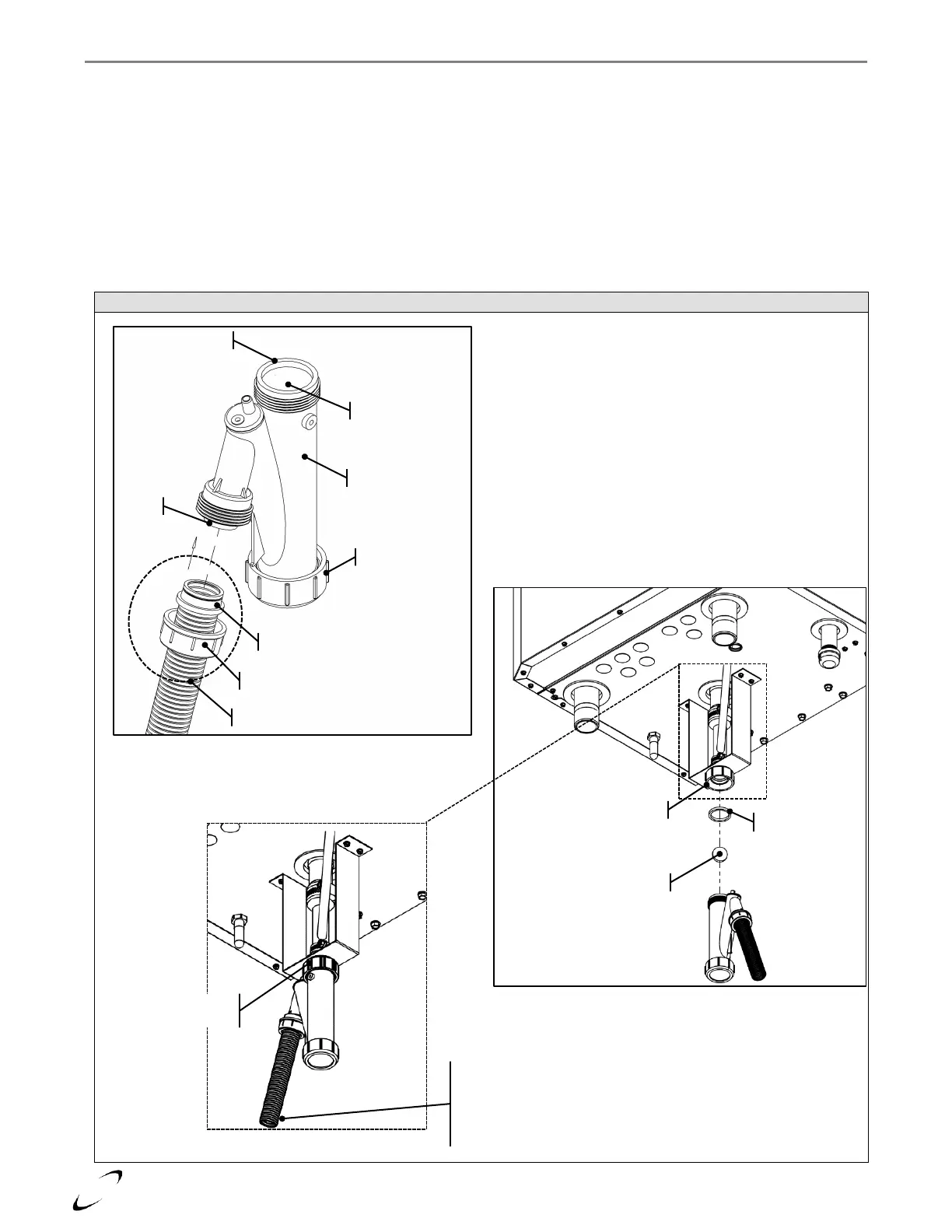

For TFTN285-399 models the Siphon is shipped loose inside the boiler cabinet and must be connected to the bottom of the
boiler as described below and in Figure 6-2:
1. Inspect Siphon to ensure all parts were shipped with the assembly. The Siphon must be periodically disassembled and
cleaned as part of a regular maintenance plan.
2. Attach Corrugated Outlet Tube – remove the Outlet Retaining Nut and Outlet Gasket from the Siphon and slide them
onto the Corrugated Outlet Tube, maintaining the same orientation (Note: gasket should be positioned approximately
1/8” from the edge of the outlet tube – see Figure 6-2). Press the Corrugated Outlet Tube into the Siphon outlet
connection and firmly hand-tighten the Outlet Retaining Nut.
3. Connect Siphon to Boiler – ensure the Ball-float is placed inside the Siphon, position the Inlet Gasket between the Siphon
and boiler, then firmly hand-tighten the Inlet Retaining Nut to secure the Siphon in place.
Outlet to Drain
route to household drain, condensate pump or
neutralizer (check with your local authority
regarding the disposal of condensate). DO NOT
route drain higher than the Siphon outlet
