NTI Trinity TX151(C) - Roof Termination Details - Direct Vent Installation; IPEX Concentric Termination (Roof); Polypro; Innoflue Roof Termination; Exhaust Only Roof Termination

Tx I&O Manual │General Venting
21


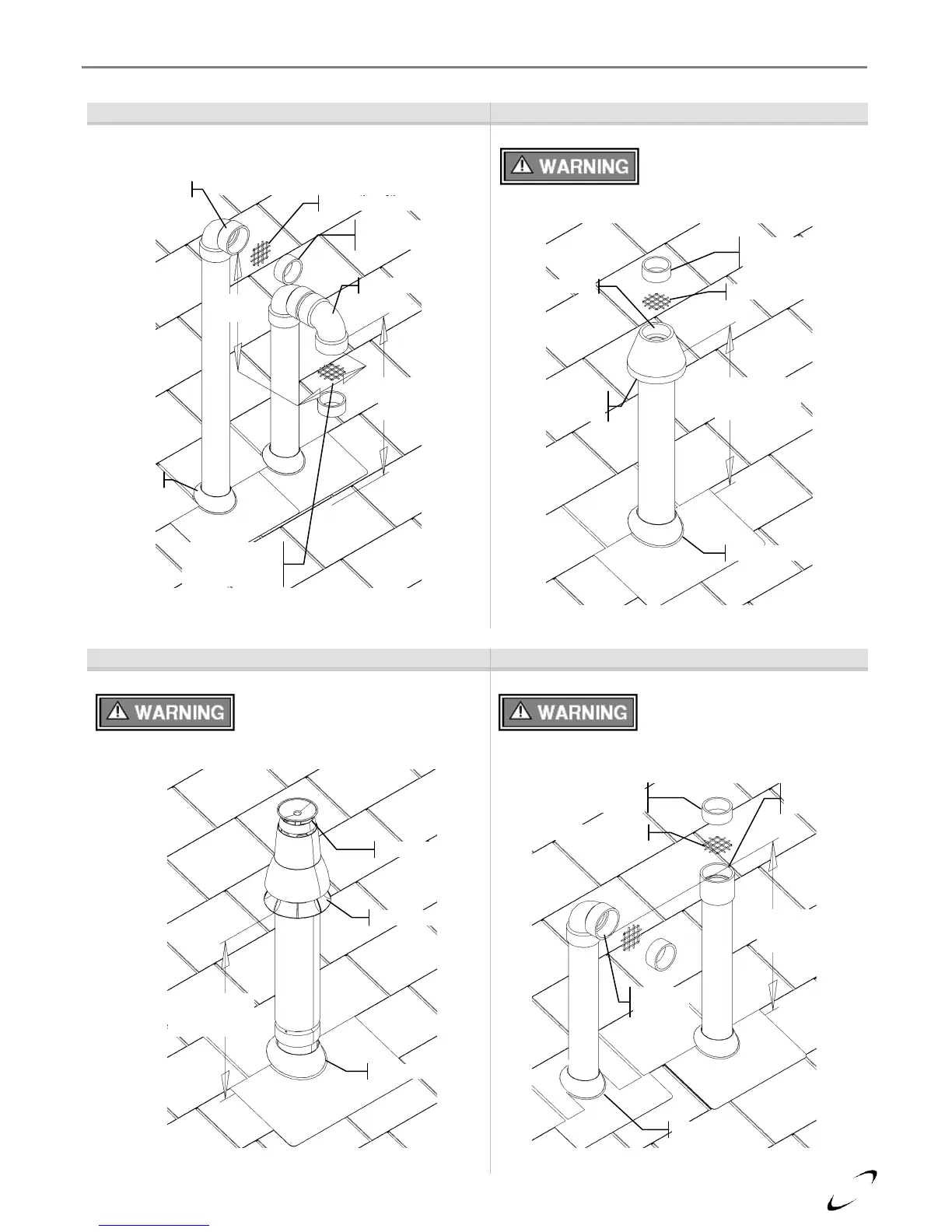

Roof Termination Details – Direct Vent Installation
Figure 4-6(a)
Figure 4-6(b)
Two-Pipe Termination (Roof)
IPEX Concentric Termination (Roof)
Figure 4-6(c)
Figure 4-6(d)
PolyPro / InnoFlue Roof Termination
Exhaust only Roof Termination
Min. 12”
above grade
or snow level
Vent Screen
Vent pipe piece to
retain vent screen
Exhaust
Air-inlet
Vertical
Min. 18”
Horizontal
4-12” or greater
than 36”
Flashing
Min. 12”
above grade
or snow level
Vent Screen
Vent pipe piece to
retain vent screen
Exhaust center
Air-inlet around
perimeter
Flashing
Refer to documentation included with termination kit for
complete installation instructions.
Refer to documentation included with termination kit for
complete installation instructions.
Min. 12”
above grade
or snow level
Flashing
Exhaust
Air-inlet
Figure illustrates two options for exhaust termination only;
neither vent pipe illustrated is for combustion air-inlet.
Min. 12”
above grade
or snow level
Flashing
Vent pipe piece to
retain vent screen
Vent Screen
Exhaust
Option 1
Exhaust
Option 2
