Gas Piping │ Tx I&O Manual

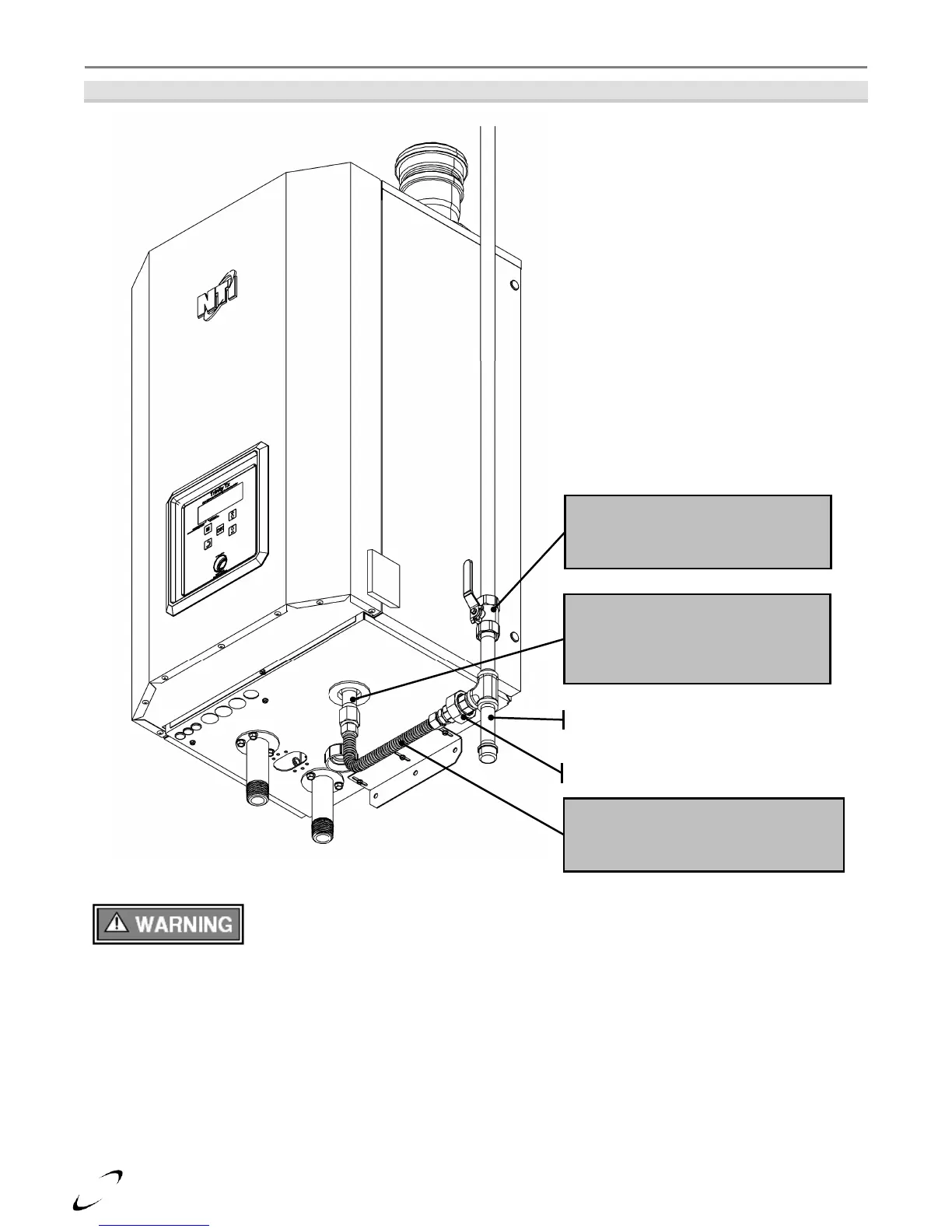

Figure 7-1 Gas Line Connection (Typical)
Test all gas piping, internal and external to the boiler, for leaks. Failure to follow
these instructions may result in fire, property damage, serious injury or death.
Manual Gas Shutoff Valve
Should overheating occur or the gas
supply fail to shutoff, close the Manual
Gas Shutoff Valve to the boiler.
Flexible Gas Line Piping
Recommended to eliminate strain on the
boiler gas components (only use if
acceptable by local codes).
Rigid Gas Line Piping
Use only rigid gas line piping within the
boiler cabinet. Rigid piping must
protrude beyond the outside of the
cabinet wall.
