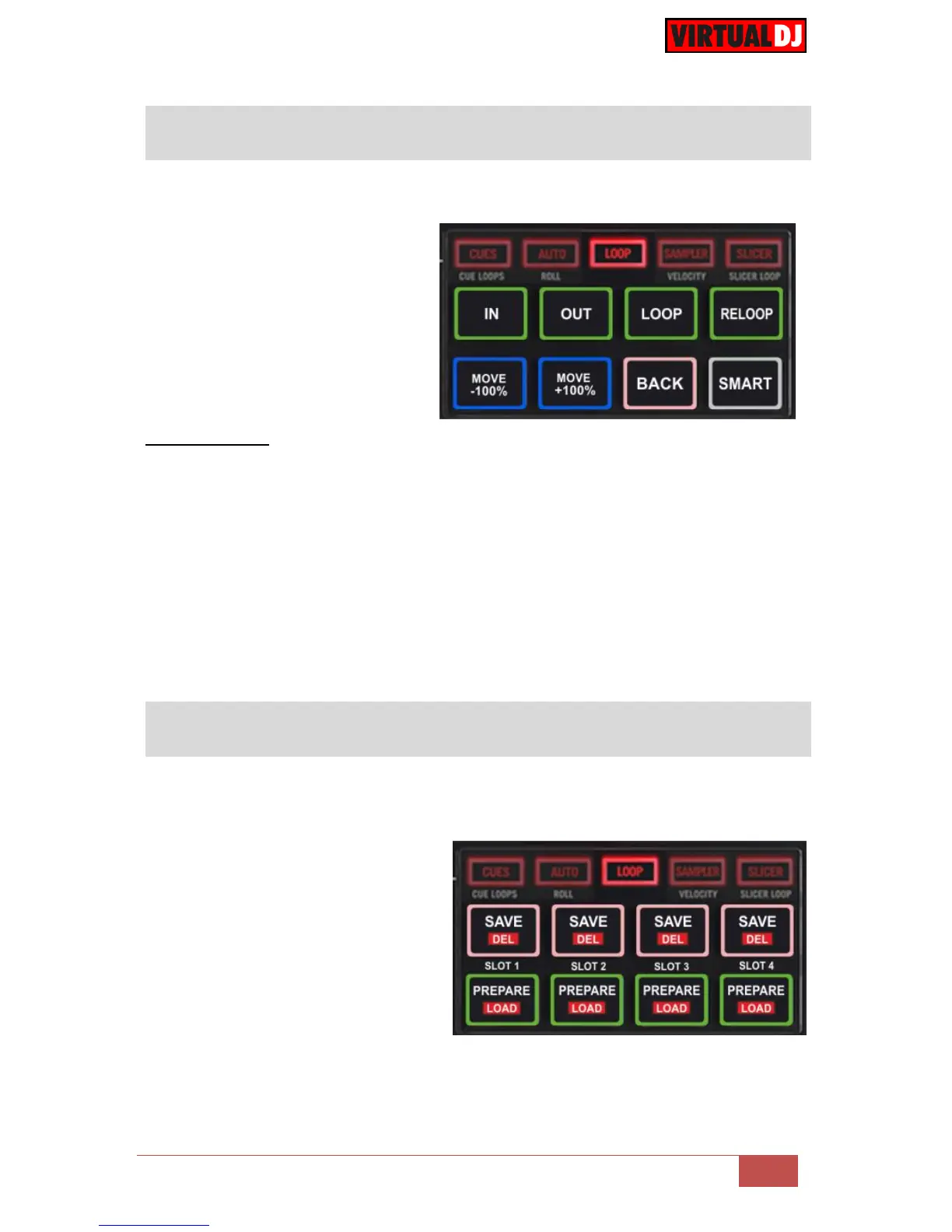

Press the LOOP mode button to set the Pads to Manual Loop mode.
Each one of the 8 pads offers a
different loop function.
Use Pads 1 and 2 to set a Loop In
(Entry) and a Loop Out (Exit) point.
Use the 3
rd
pad to trigger an Auto
Loop of the selected size or exit from
a manual loop.
Use Pad Nr4 to trigger the last
triggered Loop (Reloop)
Loop Fine adjust:
While a Loop is triggered use Pads Nr5 and 6 to move-shift the Loop backwards or forward
by the size of the applied Loop.
While a Loop is triggered hold down Pads 1 and 2 (both Leds will blink) and then use the
jogwheel to fine move-shift the Loop backwards or forward.
While a Loop is triggered hold down Pads 1 or 2 (Leds will blink) and then use the jogwheel
to fine adjust the Entry and Exit point of the loop.
The last 2 Pads offer Loop Back mode (when Loop is pressed, the current track’s position
will be considered as Loop Exit point) and Smart Loop (will snap the size of the manually
triggered loop to the nearest beat size).
Use the PARAMETER < and > (38) buttons to half and double the size of the Loop.
Press the LOOP Mode button twice (or once if the selected mode was Manual Loop) to set
the Pads to Saved Loops mode (the led of the LOOP button will blink).
This mode offers the ability to save up to
4 Loops to individual Loop Slots.
The 4 upper Pads will save the Loop at
the current track’s position (of the
selected size in beats) to slots 1 to 4.
Hold SHIFT down and then press these
Pads to delete the Saved Loop.
When a Loop slot is saved, press the
corresponding lower Pad to arm
(prepare) the Saved Loop.
If the track’s position is before the Saved Loop point, the loop will be enabled but the track
will not jump to that position (Prepare status). Use the same Pad to disable the Loop.
