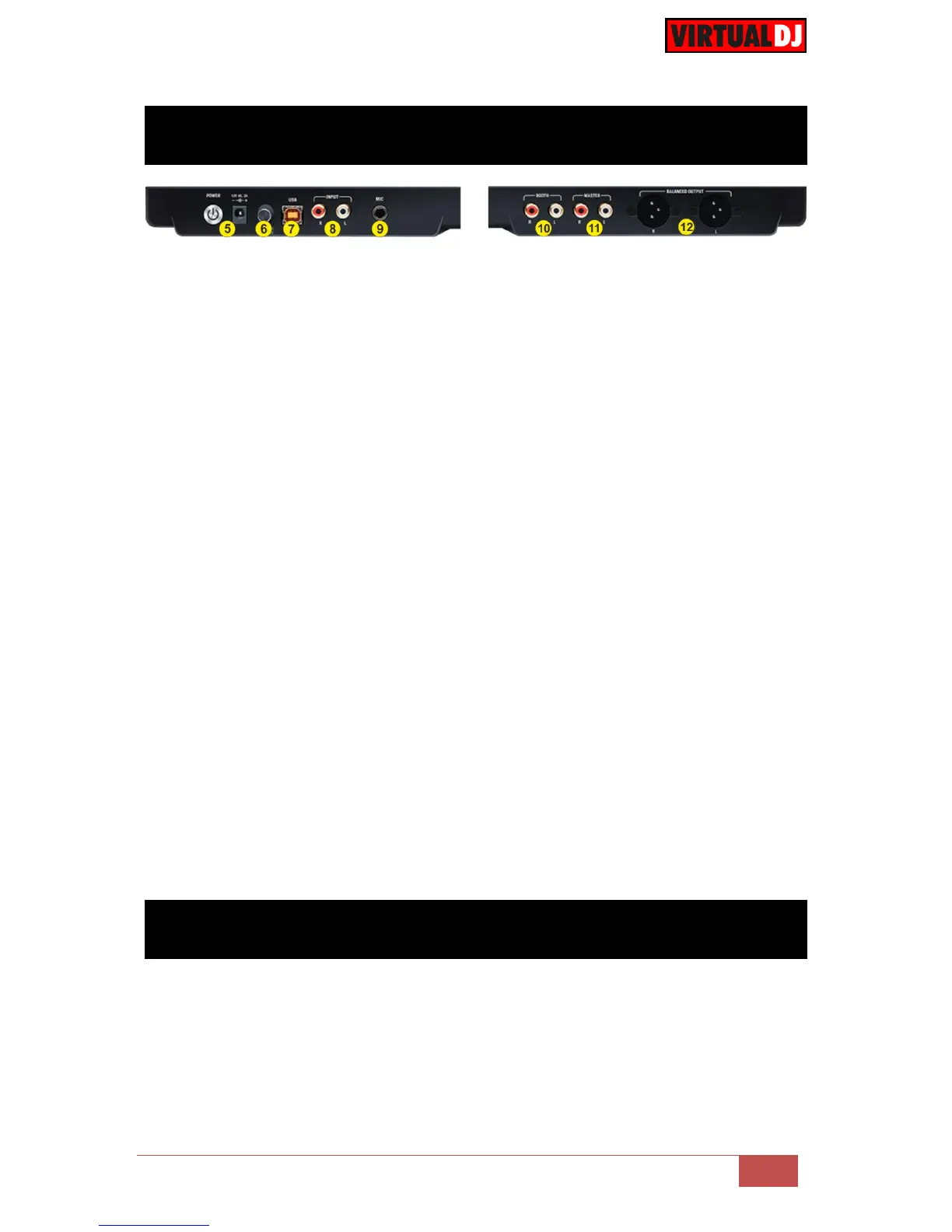

5. POWER: Use included power adapter (12 V DC, 2 A, center-positive) to connect NV
to a power outlet. While the power is switched off, plug the cable into NV first, and
then plug the other end into a power outlet. Use the Power Switch to turn the NV on
and off. Turn on the NV after all input devices have been connected and before you
turn on amplifiers. Turn off amplifiers before you turn off the unit
6. CABLE RESTRAINT. You can secure cables to this restraint to help avoid
disconnecting them accidentally.
7. USB. This USB connection sends and receives audio and control information from a
connected computer.
8. LINE INPUT. Connect your audio sources to this stereo input.
9. MIC INPUT. Connect a 1/4" microphone to this input. Microphone controls are
located on the top panel of the NV
10. BOOTH OUTPUT (RCA): Use standard RCA cables to connect this output to a booth
monitoring system. The level of this output is controlled by the Booth knob on the top
panel.
11. MASTER OUTPUT (RCA): Use standard RCA cables to connect this output to a
speaker or amplifier system. The level of this output is controlled by the Master knob
on the top panel.
12. MASTER OUTPUT (XLR): Connect this low-impedance XLR output to a PA system
or powered monitors. The level of this output is controlled with the Master knob on
the top panel.
13. CROSSFADER. Blends audio between the channels assigned to the left and right
side of the crossfader.
14. FADER START. Turn these switchers to ON to enable Fader Start for the left and/or
right assigned channels/decks. If enabled, the corresponding decks will automatically
start playing if the Crossfader starts moving from the other side towards the side
assigned to these decks (same behavior is applied for the Volume faders).
To Next Page
