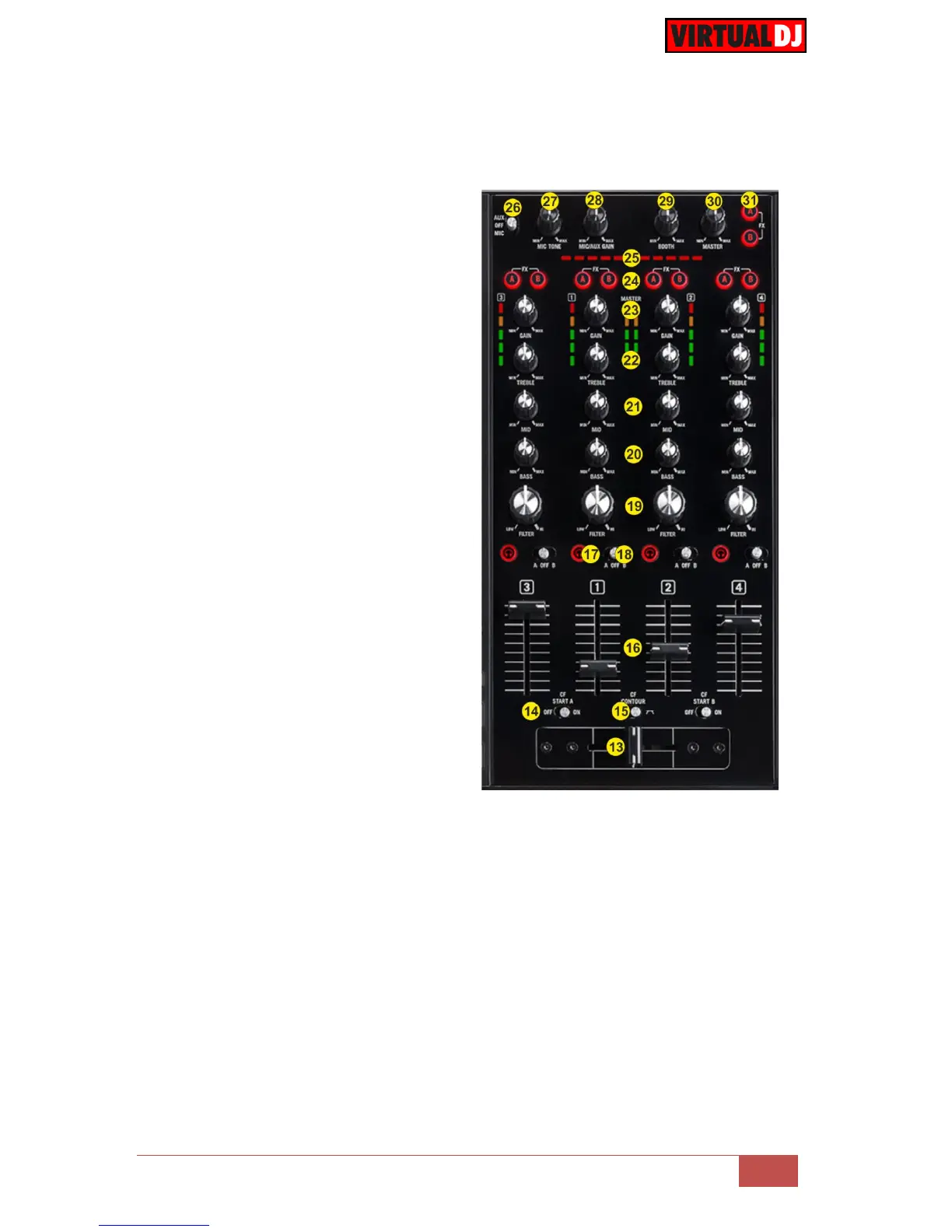

15. CROSSFADER CONTOUR.
Selects the slope of the crossfader
curve. Set the switcher to the left
for a smooth fade (mixing) or to the
right for a sharp cut (scratching).
16. VOLUME. Volume Faders (mixer
channel order is 3-1-2-4 decks).
17. PFL. Press these buttons to send
this channel's pre-fader signal to the
Cue Channel for monitoring. When
engaged, the button will be lit. By
pressing one PFL button at a time,
you will cue that channel alone (and
deactivate PFL monitoring for the
other channels). To cue to multiple
channels simultaneously, press the
PFL buttons for those channels at
the same time.
18. XFADER ASSIGN: Routes the
audio playing on the corresponding
channel to either side of the
crossfader (A or B), or bypasses
the crossfader and sends the audio
directly to the Program Mix (center,
THRU).
19. FILTER. Applies a resonance Filter
on the software decks. Depending
on the FILTER MODE (45) The
Filter knob also offers 2 additional
functions.
On FILTER ROLL Mode, the knob applies a Loop Roll as well. The size of the loop
roll starts from 1/2 beat and ends to 1/16 beat (left or right end position)
On FILTER FX Mode the knob also controls the 1
st
parameter of the selected effect.
On zero position the effect slider gets value 0%, and at the right/left end positions the
parameter gets value 100%.
20. EQ LOW. Adjusts the low (bass) frequencies of each mixer channel/deck. When
Touch EQ Mode is activated, touching the knob will mute the corresponding
channel's low frequencies (aka "EQ kill").*
21. EQ MID. Adjusts the middle (mid) frequencies of each mixer channel/deck. When
Touch EQ Mode is activated, touching the knob will mute the corresponding
channel's mid frequencies (aka "EQ kill").*
