Numatic HGB 3045 - Tgb 4055 T

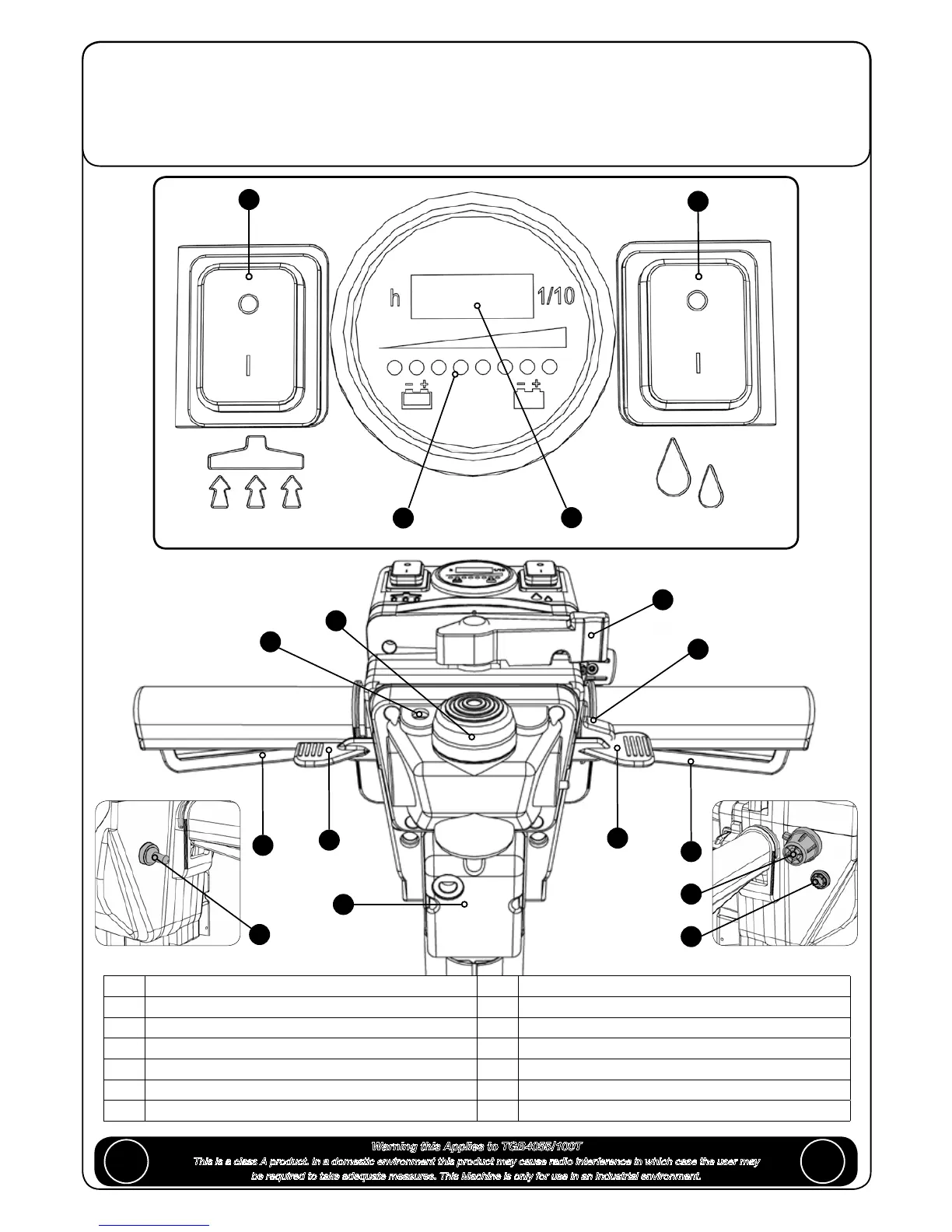

Control Panel Overview
5
TGB 4055/100T
BATTERY SCRUBBER DRYER, TRACTION DRIVE
6
11
10
6
12
13
10
5
7
8
9
14
1
2
3
4
1
Battery Charge Level Indicator
8
On / O Switch
2
Vacuum Pick Up On / O
9
Anti Crush Switch
3
Water Flow On / O
10
Speed Boost Lever
4
Hours Meter
11
Forward / Reverse Switch
5
Handle Position Lever
12
Speed Control Dial
6
Triggers
13
Safety Fuse (2.5Amp)
7
Charging Point
14
Traction Status LED
Warning this Applies to TGB4055/100T
This is a class A product. In a domestic environment this product may cause radio interference in which case the user may
be required to take adequate measures. This Machine is only for use in an Industrial environment.
!
!
