Machine Set-up Guide
Fuse Location
CONTENTS
●
2 x Isolator Keys
●
2 x 40 Amp Fuse
●
1 x 30 Amp Fuse
●
1 x 20 Amp Fuse
●
1 x 2.5 Amp Fuse
●
Maxi Fuse-puller
● Traction Model 2 x 50 Amp Fuse
For Charger-less Model,
all the above plus:
●
1 x Charger Connector
●
2 x Charger
Connector Terminals
●
4 x Battery
Terminal Connectors
●
1 x Fuse Holder

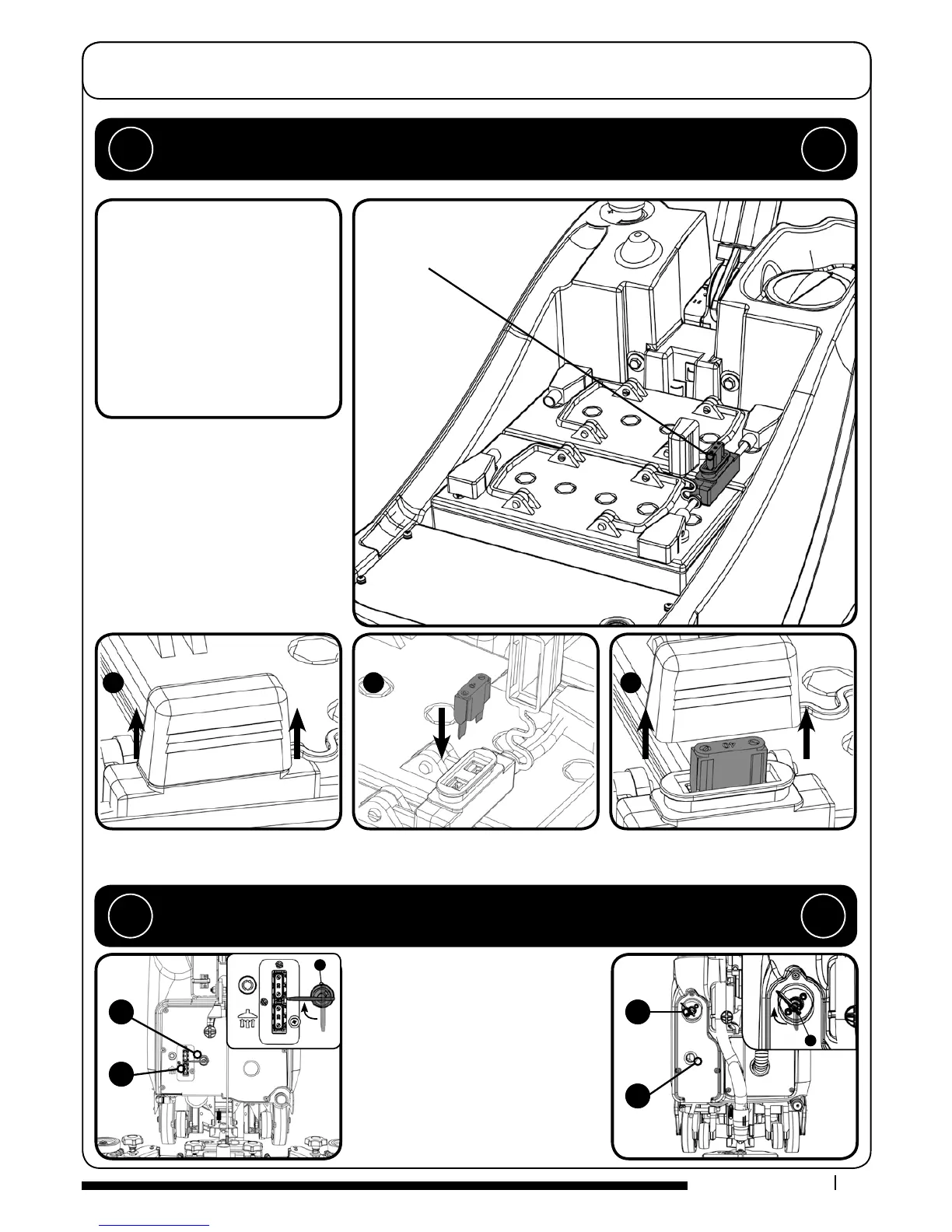

Lift o top tank assembly to reveal battery
compartment.
Fit battery fuses (contained in start-up
pack) into the battery fuse holder
as illustrated.
Fit the isolator key and switch the
machine on (See below, TGB 4045/100,
4055/100, 4055/100T (Fig. A)
HGB 3045/55, HBG 3045/55 & TGB
3045/55 (Fig.D)
NOTE: Wear suitable gloves when
inserting fuses.
PLEASE READ BEFORE COMMENCING ANY OPERATION AFTER THE REMOVAL OF ALL
THE PACKAGING, CAREFULLY OPEN AND CHECK THE CONTENTS.
!!
A
C
D
F
1
2
3
B
E
Ensure that no metal objects come into contact with battery terminals while the batteries
are exposed. When inserting the rst fuse you may notice a spark, this is normal.
!!
Less Battery Models - Numatic International Ltd recommends using Sonnenschein batteries for 3045 machines and
MK Batteries for 4045 and 4055 in the machines mentioned in this manual. For full battery spscications see pages 34, 38, 42, 46
Insert the Isolator key and switch the
machine on.
TGB 4045/100, 4055/100, 4055/100T
Isolator Key (Fig. A, B) Vac & Brush
Fuses (Fig.C)
HGB3045/55, HBG3045/55, TGB3045/55
Isolator Key (Fig D, E)
Vac & Brush Fuses behind cover plate (Fig.F)
