Nuomm NEWSCASTER VT2 - Figure 16: Pan & Tilt Power (120 VAC) Interconnect Diagram; Table 9: Pan & Tilt Power (120 VAC) Connector Pin-Outs

NewsCaster VT2 Installation
M17-0002-01A Rev 0.0 39 User Manual
The following Tables and Figures are provided to assist in preparing the interconnect cables for the
optional Pan & Tilt control.
Control Unit
“PAN/TILT POWER”
Function
Recommended
Wire Size (AWG)
RF Head
“PAN/TILT PWR
FROM CONTROL”
A +160VAC* #18 White A
B +160VAC* #18 Red B
C Not Used C
D Not Used D
E –160VAC* #18 Brown E
F –160VAC* #18 Black F
G Not Used G
H Not Used
*The motor for the 120 VAC Pan and Tilt actually requires 160 VAC.
Table 9: Pan & Tilt Power (120 VAC) Connector Pin-outs

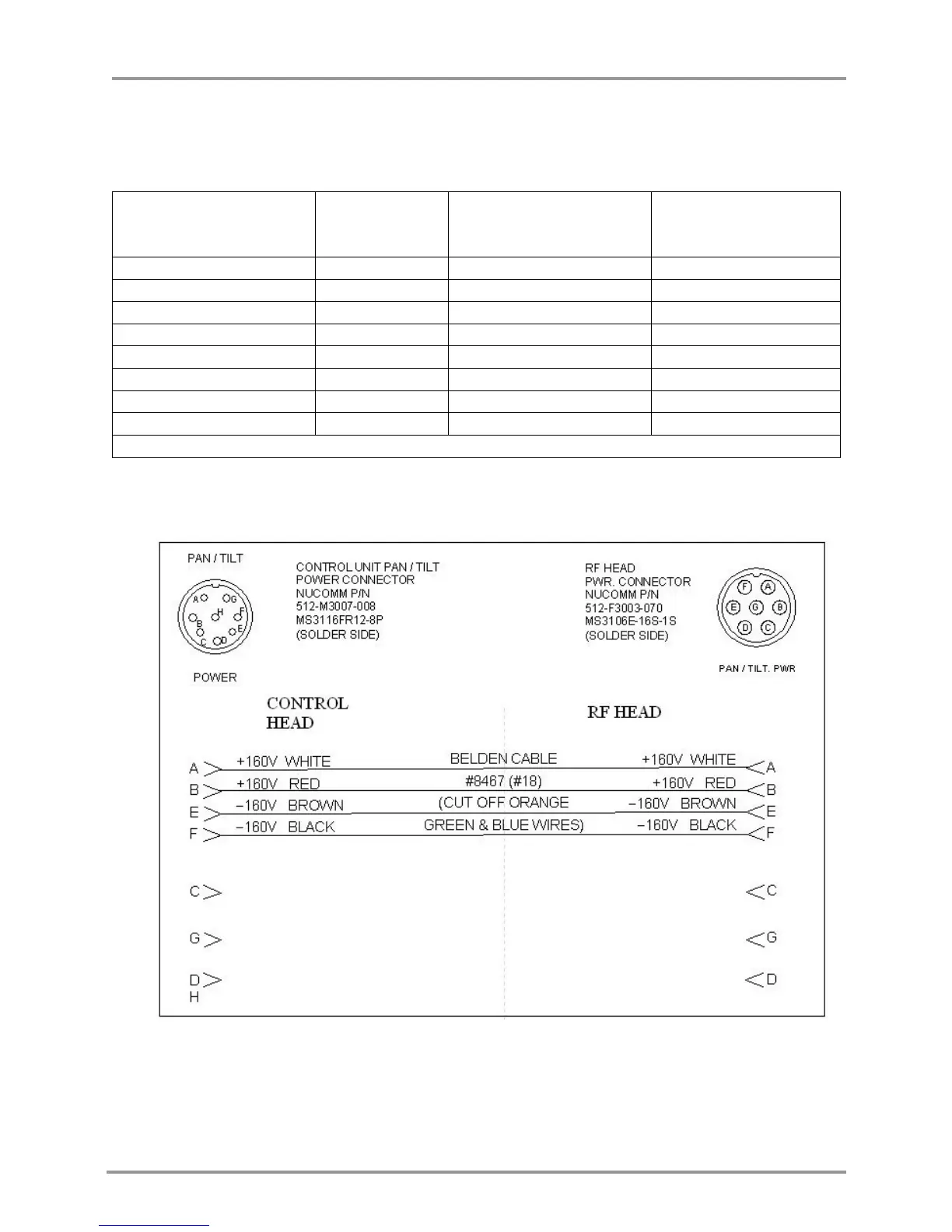

Figure 16: Pan & Tilt Power (120VAC) Interconnect Diagram
