Nuomm NEWSCASTER VT2 - Figure 18: Pan & Tilt Motor Interconnect Cable; Table 11: Quickset QPT90 12 VDC;120 VAC Pan & Tilt Connector Pin-Out

NewsCaster VT2 Installation
M17-0002-01A Rev 0.0 41 User Manual
CABLE ASSY Lengths & P/N’s
LENGTH P/N
4FT. 922-B206-04B
5FT. 922-B206-05B
6FT. 922-B206-06B*
12FT. 922-B206-12B
*Standard
512-F3001-170 (FEMALE)
512-M3009-018 (MALE)
J2
J1
RF HEAD
“TO PAN/TILT”
(18 PIN)
FUNCTION RECOMMENDED
WIRE SIZE (AWG)
PAN & TILT
MOTOR
(17 PIN)
A N/C #20 Green/Black A
B Position Pot-Ref B #20 Orange/Black B
C N/C #20 Blue/Black C
D Position Pot-Ref A #20 Black/White D
E AZ Left #20 Red/White E
F Elev. Pot Wiper #20 Green/White F
G Chassis Ground #20 Blue/White G
H Field “+” (120 VAC Units Only) #20 Orange H
J Elev. Up #20 Blue J
K Elev. Down #20 White/Black K
L AZ Right #20 Red/Black L
M Stow SW Up #20 Red M
N Stow SW Down #20 Green N
P Field “-” (120 VAC Units Only) #20 Black P
T AZ Pot Wiper #20 White T
U N/C N/A N/A
Table 11: Quickset QPT90 12 VDC/120 VAC Pan & Tilt Connector Pin-out
CONNECTORS:....................................................................................................J2
..............................................................................................................................AMPHENOL
MS3116F14-18S Provided with Quickset Unit)
..............................................................................................................................J1
..............................................................................................................................AMPHENOL
MS3106F20-29S
Cable: Belden # 9458, 15 Cond. #20

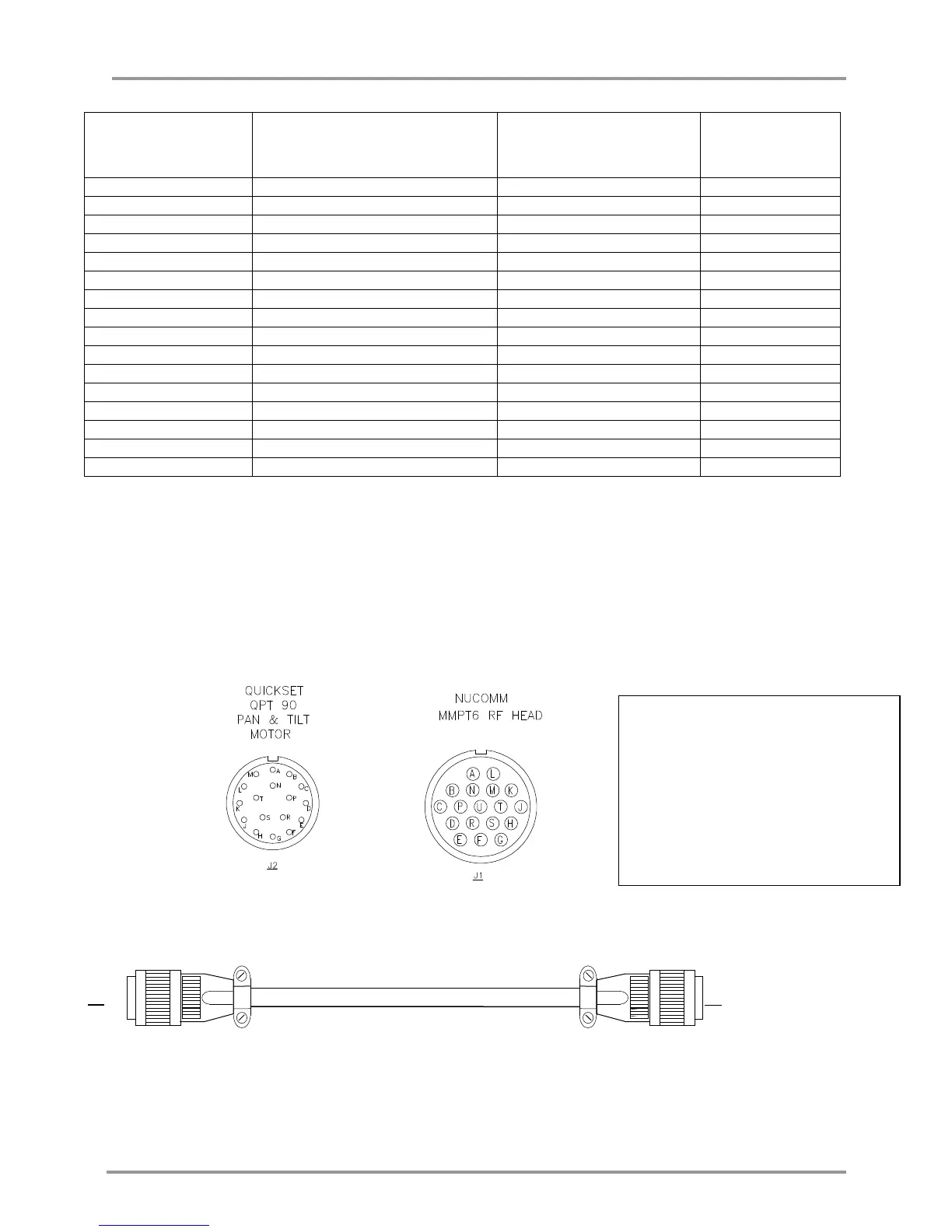

Figure 18: Pan & Tilt Motor Interconnect Cable
