Nuomm NEWSCASTER VT2 - Figure 17: Pan & Tilt Power (12 VDC) Interconnect Diagram; Table 10: Pan & Tilt Power (12 VDC) Connector Pin-Outs

NewsCaster VT2 Installation
M17-0002-01A Rev 0.0 40 User Manual
Control Unit
“PAN/TILT POWER”
Function
Recommended
Wire Size (AWG)
RF Head
“PAN/TILT PWR
FROM CONTROL”
A +12VDC #18 YELLOW A
B +12VDC #18 YELLOW B
C GND #18 BLACK E
D GND #18 BLACK F
No Connection Not Used C
No Connection Not Used D
No Connection Not Used G
Table 10: Pan & Tilt Power (12 VDC) Connector Pin-outs

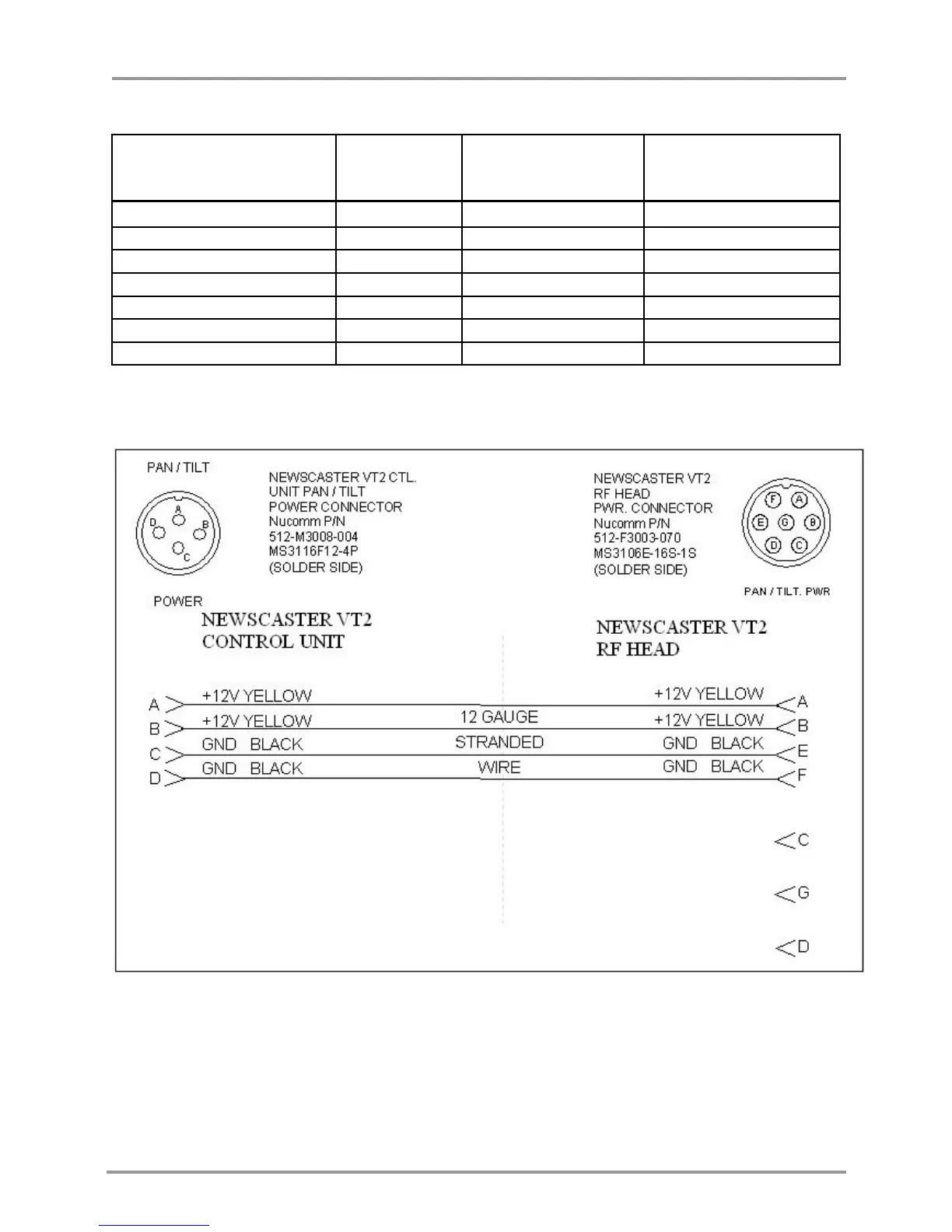

Figure 17: Pan & Tilt Power (12 VDC) Interconnect Diagram
