Nuomm NEWSCASTER VT2 - Figure 20: Radio Waves Quad Antenna Polarization Connections; Table 13: Radio Waves Quad Antenna Polarization Connector Pin out

72 pages

To Next Page

To Previous Page

NewsCaster VT2 Installation

M17-0002-01A Rev 0.0 43 User Manual

NCVT2 - RF HEAD Function Recommended

Wire Size (AWG)

Radio Waves

Antenna

N/C CW (Default) N/C N/C

E V #22 BROWN F

#22 RED B

D 2/7 GHz Band Select #22 GREEN G

F CCW #22 WHITE C

G Common +24V #22 BLACK K

N/C Shield GND N/C L

K DC GND #22 BLUE M

N/C N/C N/C A

N/C N/C N/C D

N/C N/C N/C E

N/C N/C N/C H

N/C N/C N/C J

Table 13: Radio Waves Quad Antenna Polarization Connector Pin Out

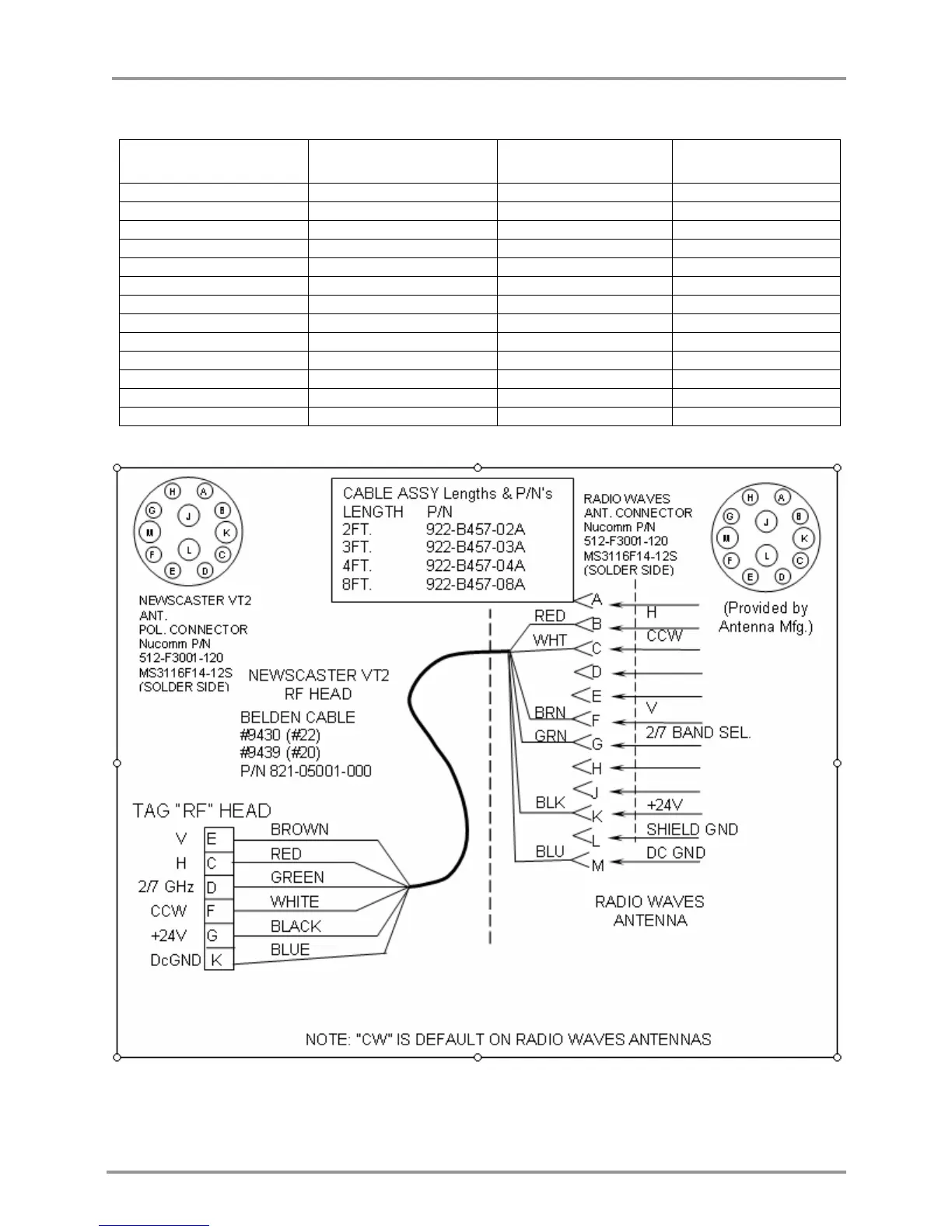

Figure 20: Radio Waves Quad Antenna Polarization Connections
