NewsCaster VT2 Installation
M17-0002-01A Rev 0.0 45 User Manual

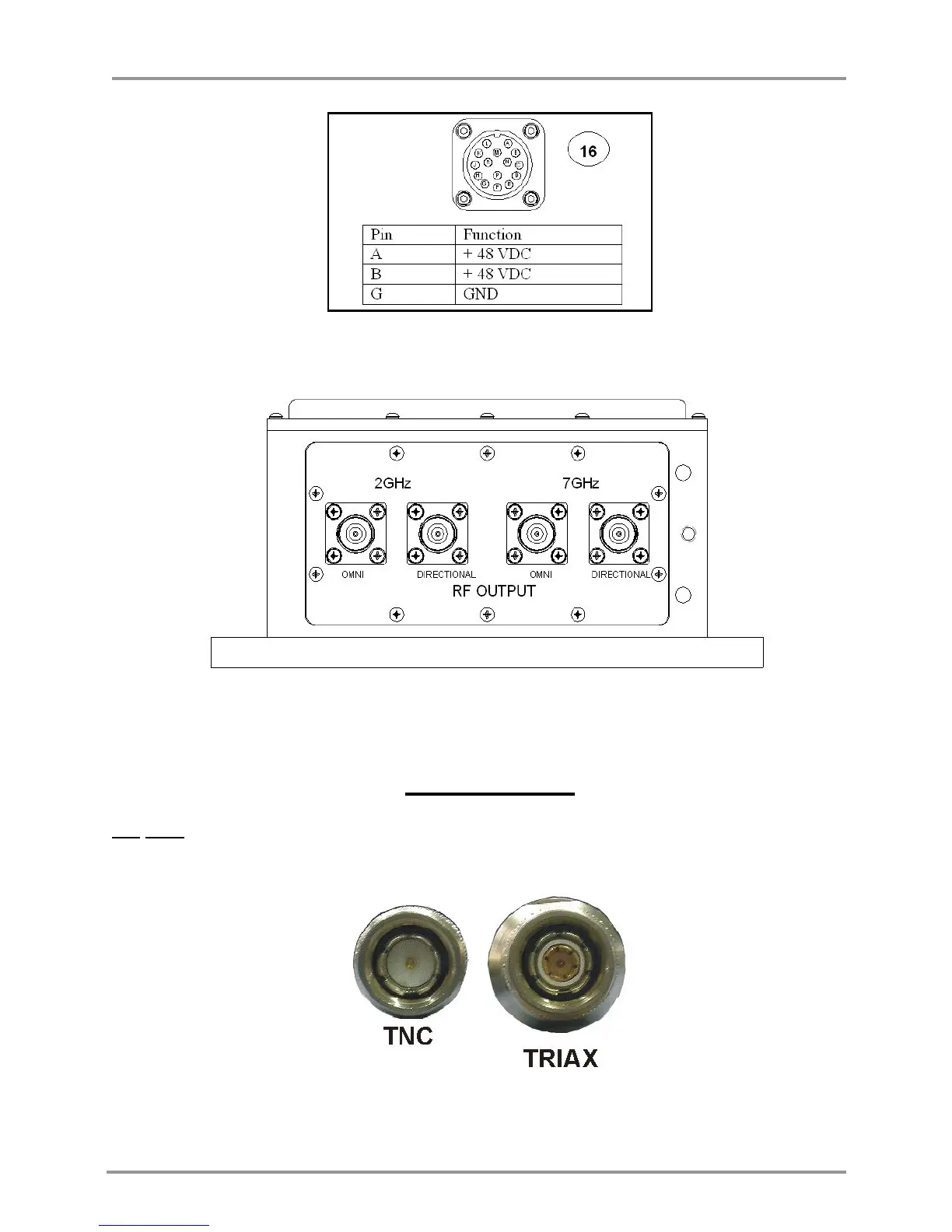

Figure 22: RF Head AUX Power Connector
Figure 23: RF Head, Rear Panel
(Dual Band shown, with optional Omni ports)
WARNING!!!
DO NOT connect the wrong type cable to the wrong type unit, since doing so will
damage one of the connectors and result in intermittent failures.
Figure 24: TNC and TRIAX Connectors
