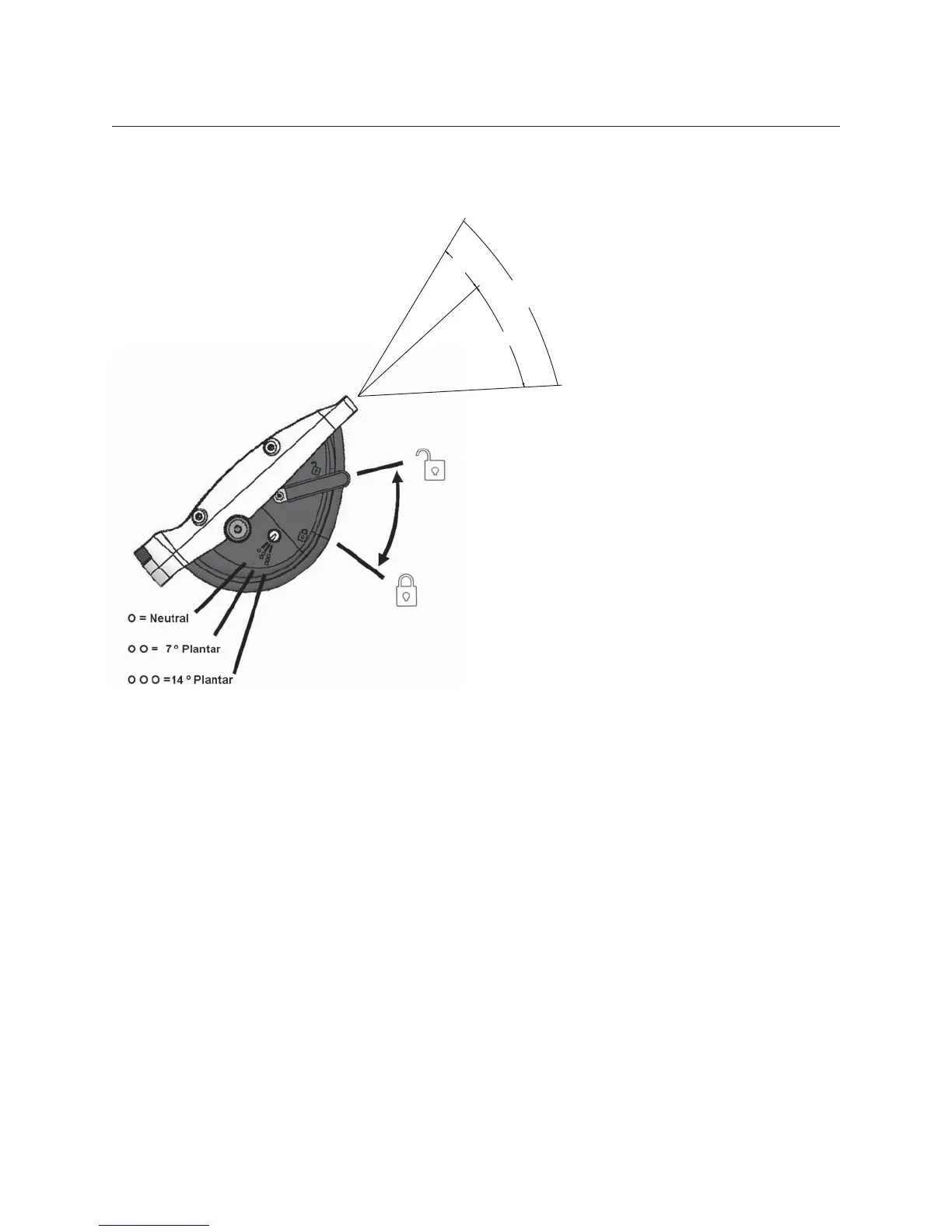

• Unlock for dorsi/plantar operation.
• Lock in any three positions to set angle.
Dorsi/Plantar Foot Pedal Operation (T5
XR
Only)
22°
32° Total
10°
UNLOCKED PEDAL LIMITS
LOCKED PEDAL POSITIONS
Plantar Limit
Dorsi Limit
Neutral Position
