28
Cover Removal / Installation
Tools Required
3 mm hex bit

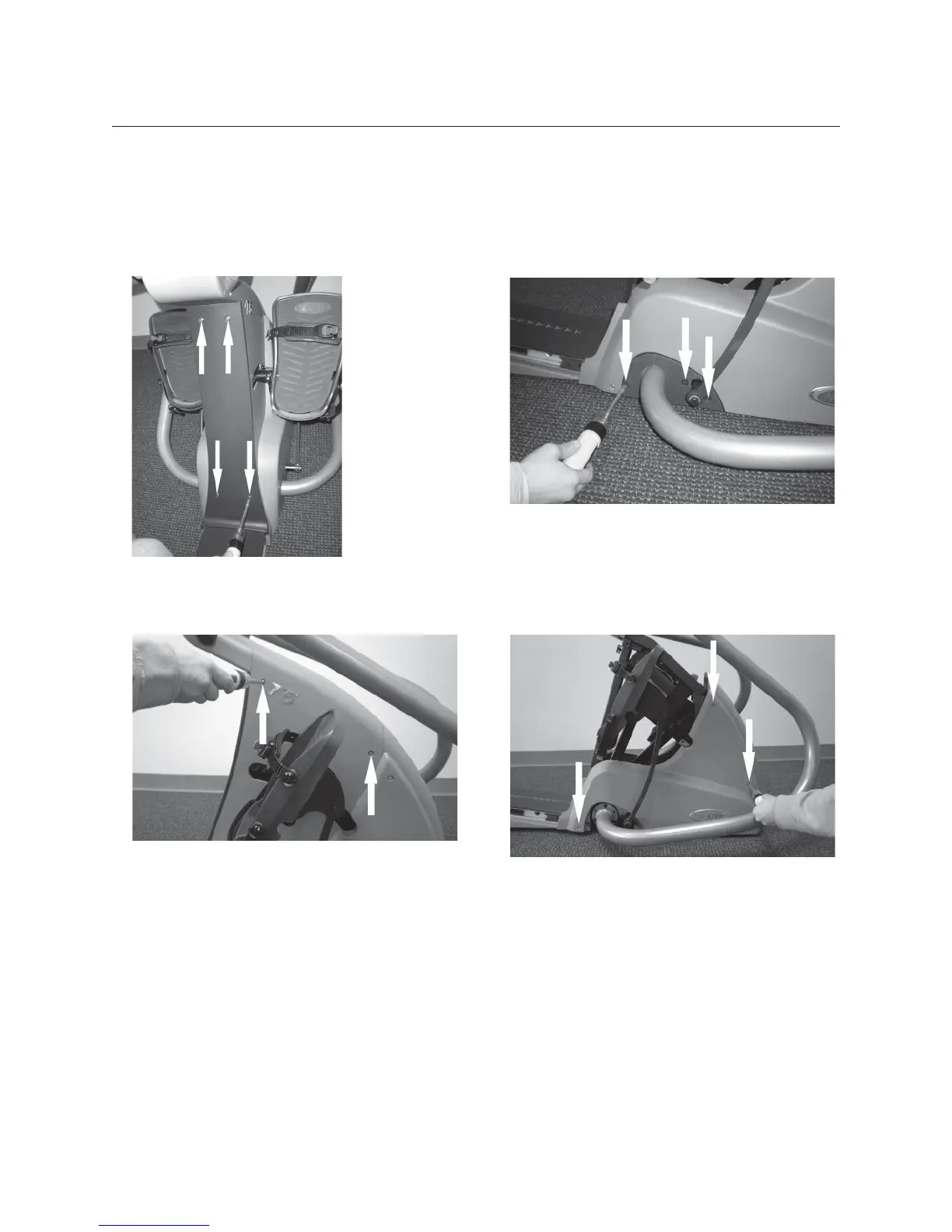

1. Remove 4 screws from front end
trim cover.
2. Remove 2 screws from each front
upper cover.
3. Remove 3 screws from arm
fl ange cover.
4. Remove 3 screws from each front
lower cover.
Note: Removal of front lower covers is
easiest with pedal toward the rear of
the machine.
To Next Page
