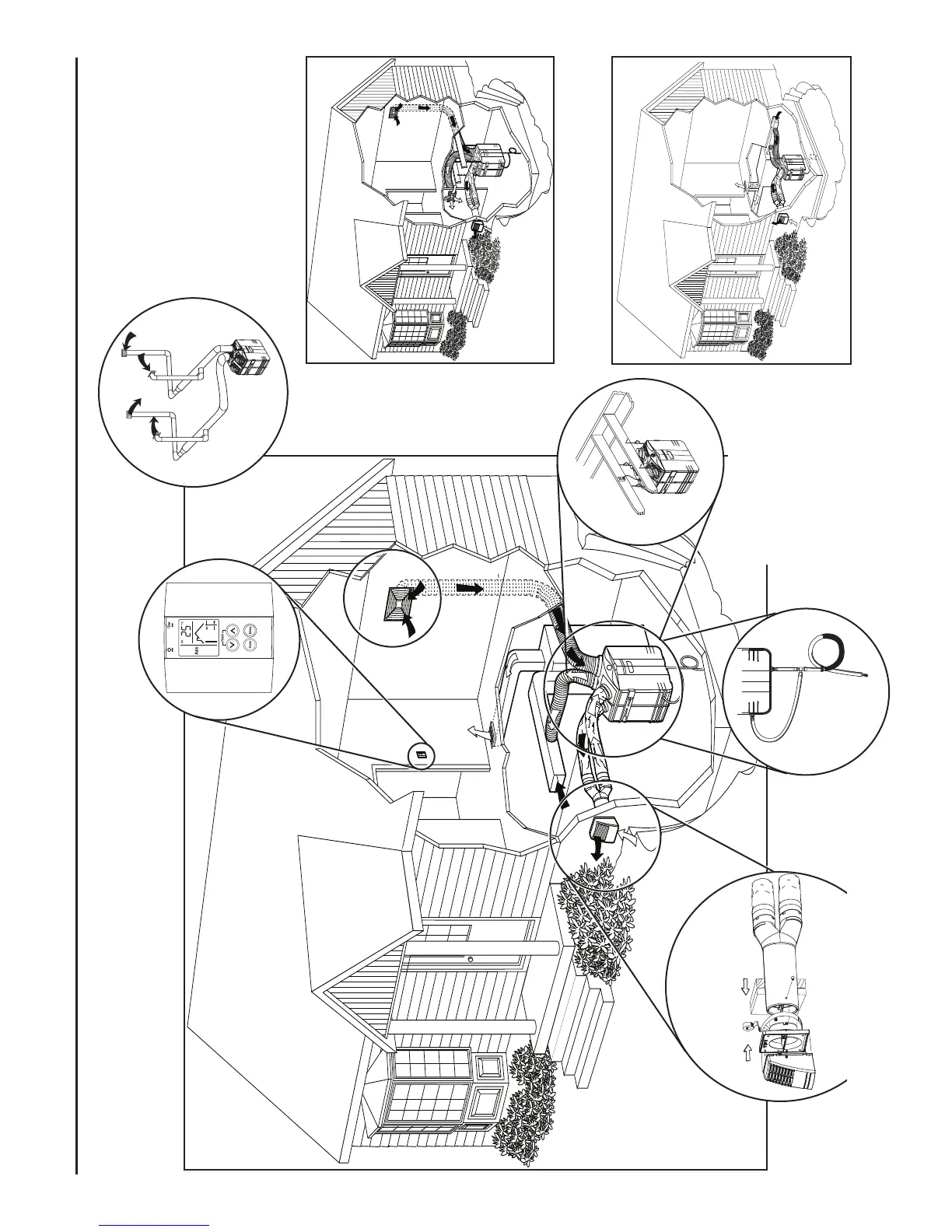

5.2 GSVH1K, GSHH3K AND GSEH3K UNITS INSTALLATIONS
VH0068
INSTALLATION TYPE SHOWN: CENTRAL DRAW POINT SEE SECTION 5.4.1
STAND ALONE INSTALLATION SEE SECTION 5.3.1
RETURN-TO-RETURN INSTALLATION SEE SECTION 5.5.1
HOW TO HANG THE UNIT
SEE SECTION 6.4
CONNECTING THE DRAIN SEE SECTION 6.10
SECTION 7: CONTROL
VH0039
VH0043
VD0150
VO0029
VC0098
- 10 -
INSTALLING 8’’ DUCTS AND REGISTERS SEE SECTIONS 6.5
VI0011
VD0149
OUTDOOR CONNECTION SEE SECTIONS 6.6, 6.7, 6.8 AND 6.9
NOTE: OTHER INSTALLATIONS SHOWN
NEXT PAGES
