• Inspect the exterior of the unit for shipping damage. Ensure there is no damage to the door, door latches, main switch, etc.

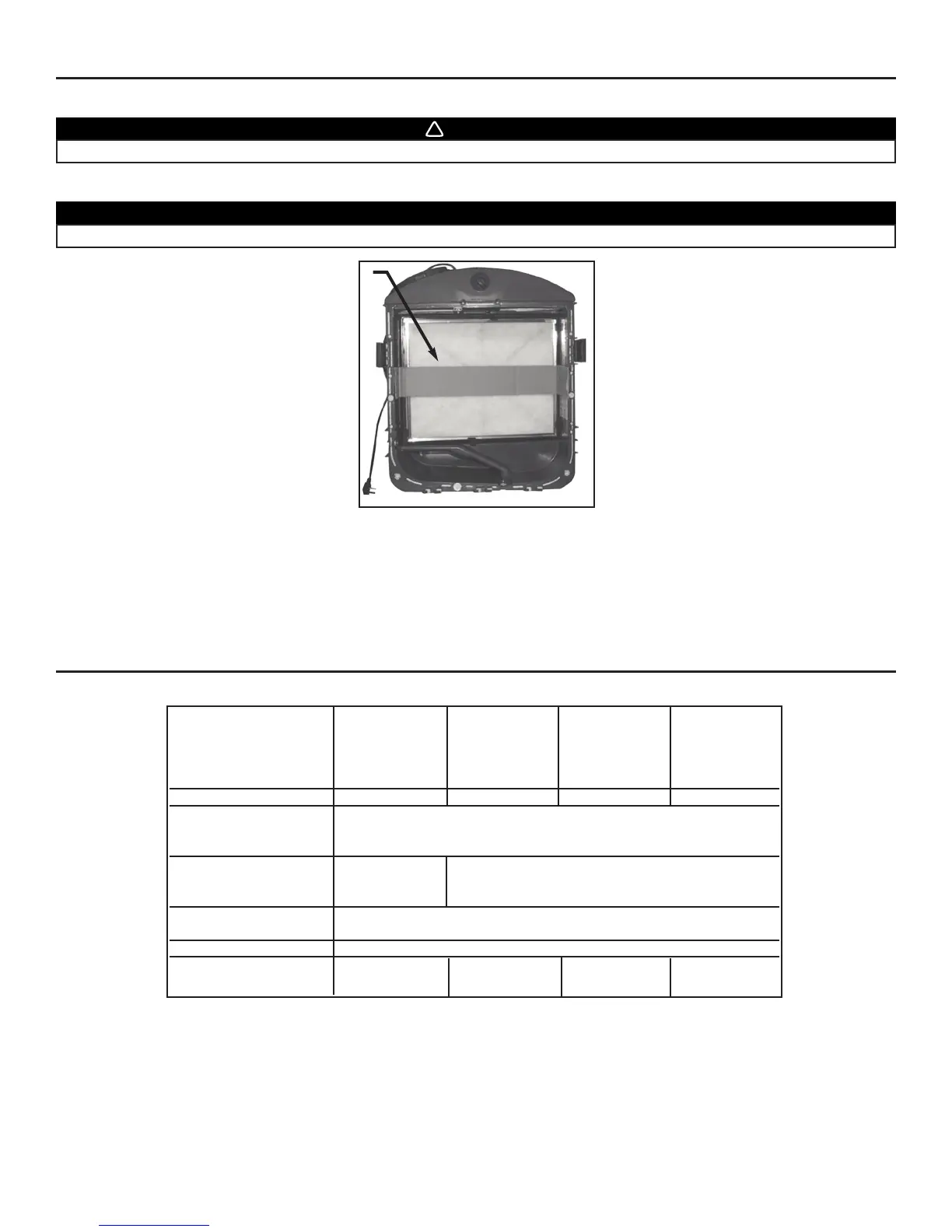

1) Cardboard strip
• Inspect the interior of the unit for damage. Ensure the blower assembly, heat recovery core (model GSHH3K), energy recovery core
(model GSEH3K), insulation, dampers (models GSVH1K, GSHH3K and GSEH3K), prefilter, HEPA filter, etc. are all intact.
• If the unit was damaged during shipping, contact your local distributor, or Broan-NuTone at 1-800-558-1711.
1. BEFORE STARTING
1.1 INSPECT THE CONTENTS OF THE BOX
NOTE: Due to our ongoing commitment to product quality and innovation, all specifications are subjected to change without notice.
VD0126
CAUTION
Remove the cardboard strip inside the unit (if applicable).
WARNING
To avoid risk of suffocation, discard the plastic bag wrapping the unit.
2. TECHNICAL DATA
GSFH1K GSVH1K GSHH3K GSEH3K
HEPA Filtration HEPA Filtration, HEPA Filtration,
Models HEPA Filtration & Fresh Air Fresh Air & Fresh Air &
Ventilation Heat Recovery Energy Recovery
Ventilation Ventilation
Weight 34 lb (15.4 kg) 36 lb (16.3 kg) 40 lb (18.2 kg) 40 lb (18.2 kg)
Oval shaped duct collars
for non-insulated ducts fits two 8” round ducts
to inside
Oval shaped duct collars
for insulated ducts N/A fits two 5” or 6” round ducts
to outside
Installation: Suspended Chains, springs and hooks (provided with the unit)
or rest on a shelf or floor: or 4 pads (provided with the unit)
Electrical Supply 120 Volts AC, 60 Hz
Power Consum. (Boost) 170 Watts 224 Watts 229 Watts 224 Watts
Power Consum. (Normal) 132 Watts 152 Watts 170 Watts 170 Watts
1
