- 15 -
6. INSTALL THE UNIT (CONT’D)
CAUTION
Make sure the unit is level.

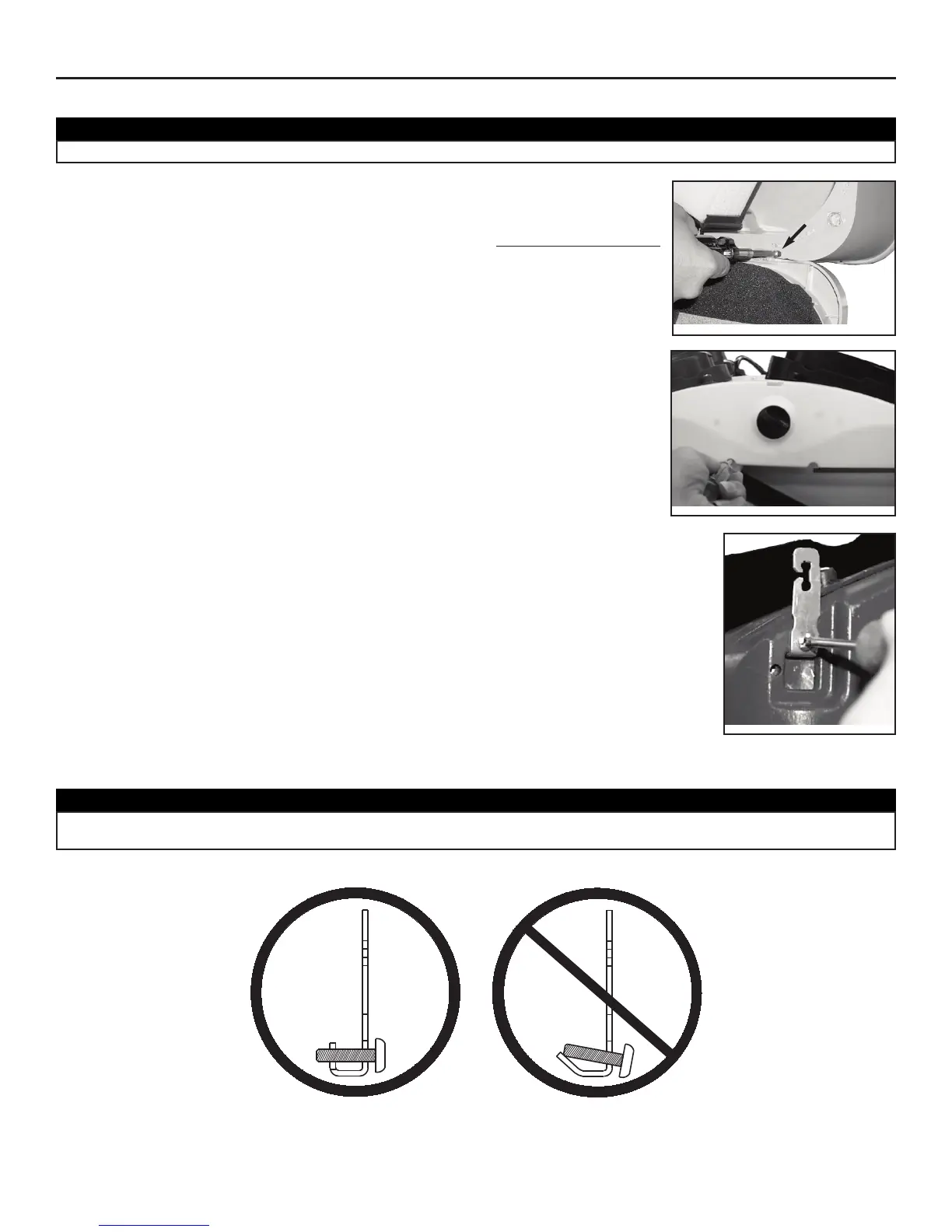

• Using a screwdriver, remove the two retaining screws of the front plate as shown, and
carefully remove the front plate from the unit.
• Insert the four hooks in the square holes and fix them to the unit using four screws no. 8-32 x 3/4”.
VO0019
VO0020
6.4 FOR SUSPENDED APPLICATIONS (CONT’D)
• To remove the door, verify the switch knob is in the OFF position in order to unlock the door.
Unlatch the door, using the 2 latches to open. Remove the stopper (A) located on the right
side of the door hinge, then, slide the door out of its hinge.
VD0170
A
CAUTION
Take care to insert the screws perpendicular to their hooks, in order to avoid potential damages due to loosen hooks.
See illustrations below.
