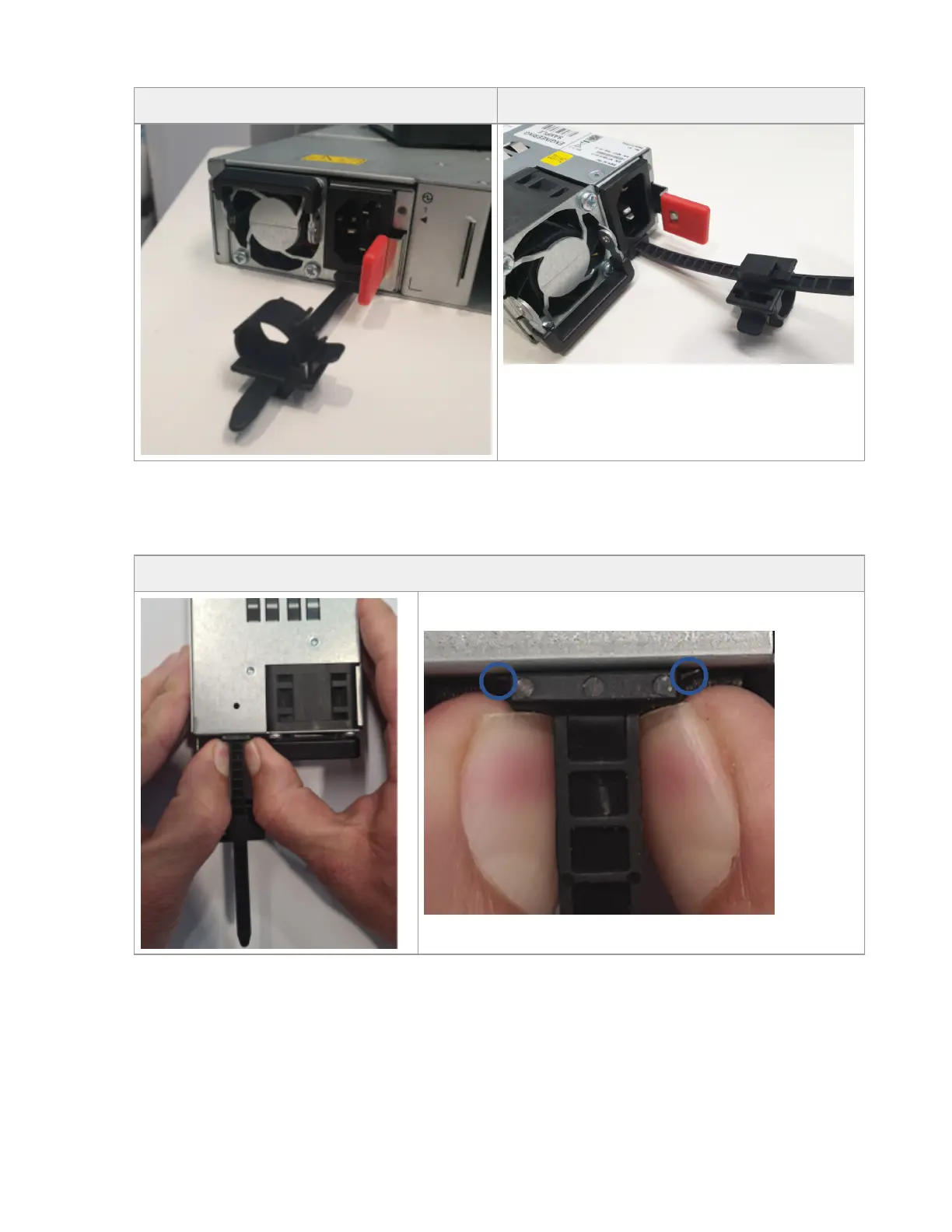

Correct Insertion Incorrect Insertion
3. Push the retainer until the shoulders' pins (in blue circles below) are open and aligned
with the PSU front panel, as shown in the following table:
Fully Mated Retainer
4. Make sure that the retainer is fully locked in place by gently attempting to pull it
outwards.
5. Open the plastic loop and route the AC cord through it. Locate the loop over the AC
cord, as shown in the following table, and fasten it tightly.
