NVIDIA Spectrum-2 SN3000 1U and 2U Switch Systems Hardware User Manual 128

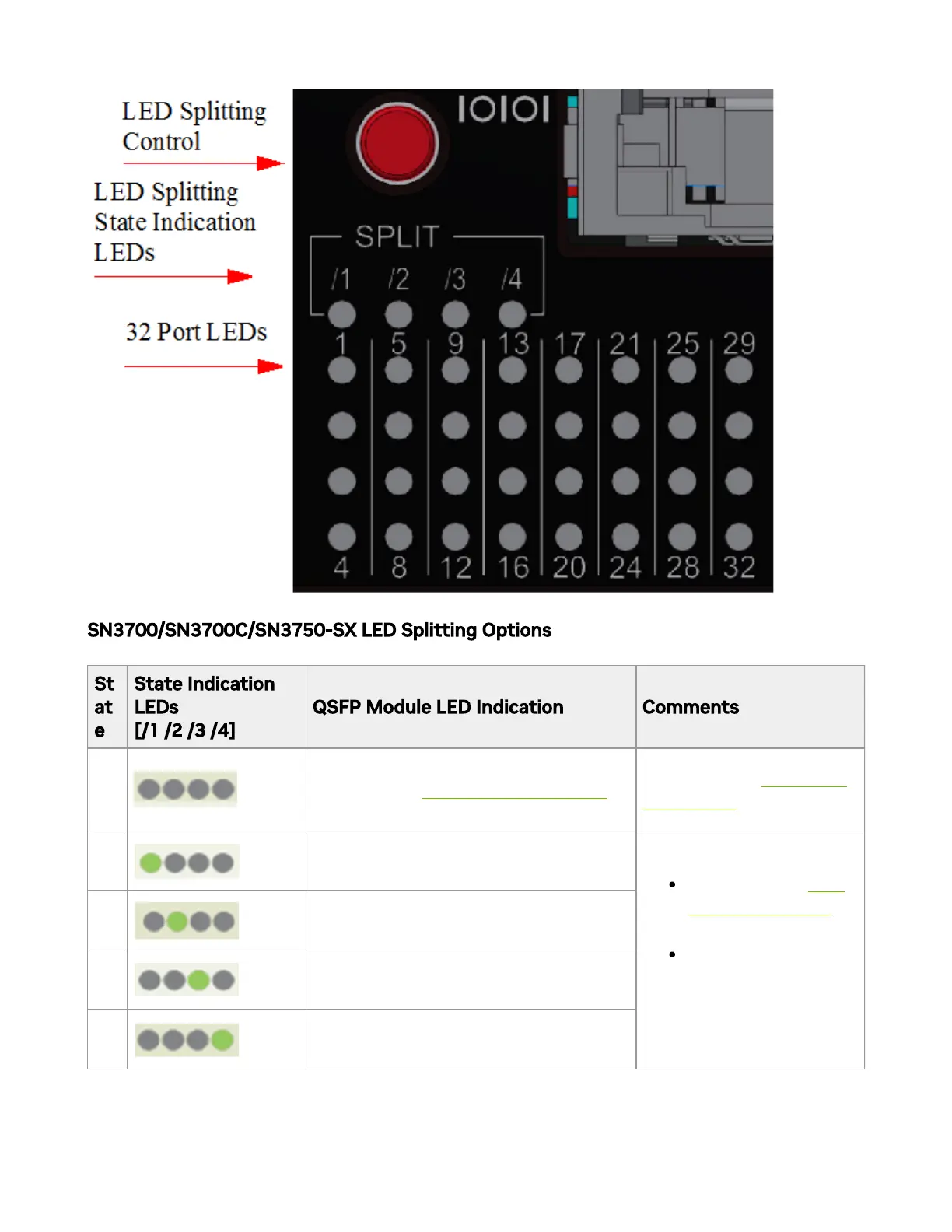

SN3700/SN3700C/SN3750-SX LED Splitting Options
St
at
e
State Indication
LEDs
[/1 /2 /3 /4]
QSFP Module LED Indication Comments
0
Indication for all link types, as
described in Port LEDs Indications
(State 0)
See details in Port LEDs
Indications (State 0)
1
LED indication for the following link
types: 4X/2XA/1XA
See details in Port
LEDs Indications
(States 1-4).
Only one of the link
types can be up at
a given time.
2
LED indication for the following link
types: 4X/2XB/1XB
3
LED indication for the following link
types: 4X/1XC
4
LED indication for the following link
types: 4X/1XD
The port LED behavior indicates the port state, as follows:
