Nvidia Spectrum-2 SN3420 - Page 78

NVIDIA Spectrum-2 SN3000 1U and 2U Switch Systems Hardware User Manual 77

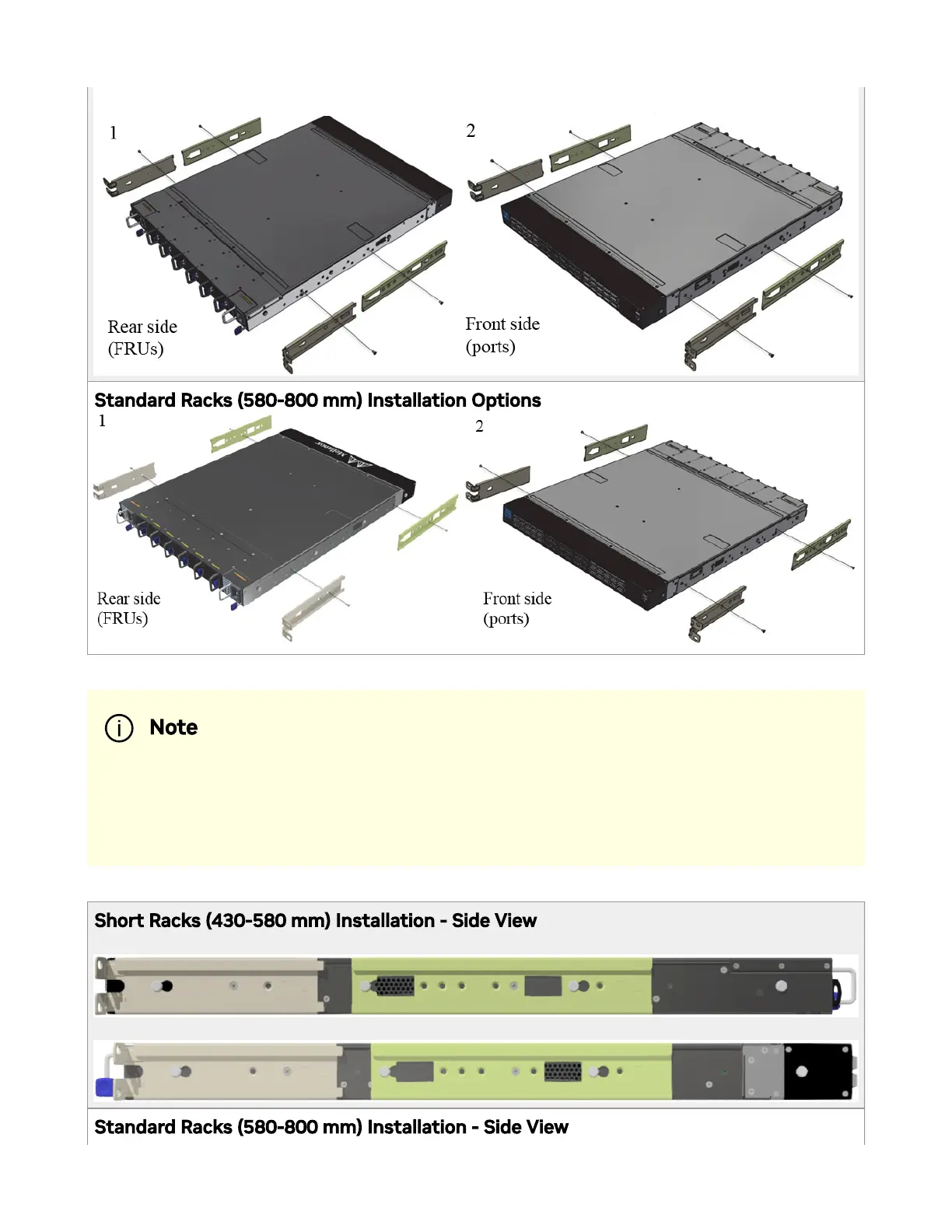

Standard Racks (580-800 mm) Installation Options
Short Racks (430-580 mm) Installation - Side View
Front side (ports):
Rear side (FRUs):
Standard Racks (580-800 mm) Installation - Side View
Note
In short racks, the system’s ventilation openings should be framed by
the designated windows in the rails, as shown below.
