Front side (ports):
Rear side (FRUs):

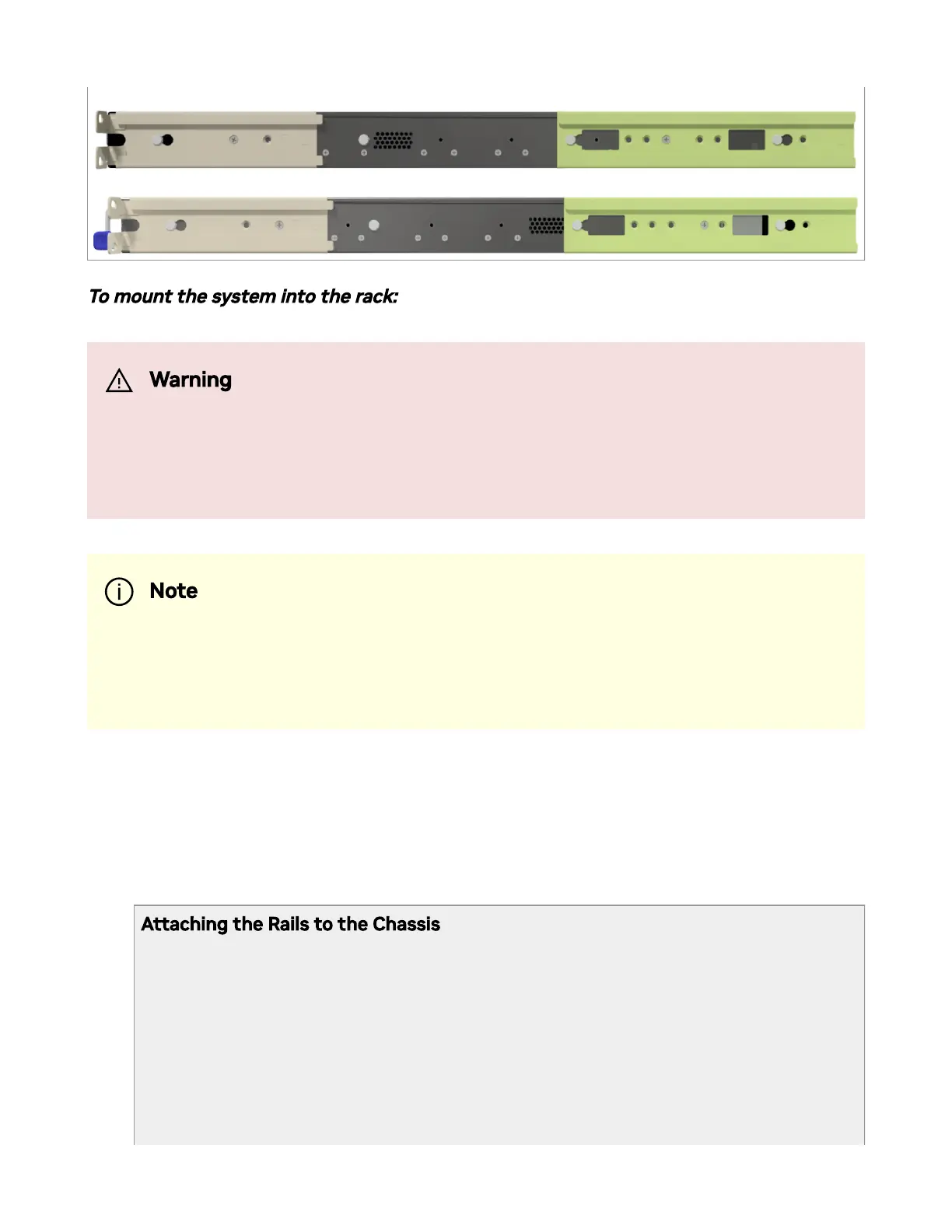

To mount the system into the rack:
1. Attach the left and right rack mount rails (A) to the switch, by gently pushing the
switch chassis’ pins through the slider key holes, until locking occurs.
2. Secure the chassis in the rails by screwing 2 at head Phillips screws (F) in the
designated points with a torque of 1.5±0.2 Nm.
Attaching the Rails to the Chassis
Warning
At least two people are required to safely mount the system in the
rack.
Note
The following steps include illustrations that show front side (ports)
installation, yet all instructions apply to all installation options.
To Next Page
