3. Attach the left and right rack mount ears (C) to the switch, by gently pushing the
switch chassis’ pins through the slider key holes, until locking occurs. Secure the
system in the brackets by screwing the remaining 2 at head Phillips screws (F) in
the designated points with a torque of 1.5±0.2 Nm.

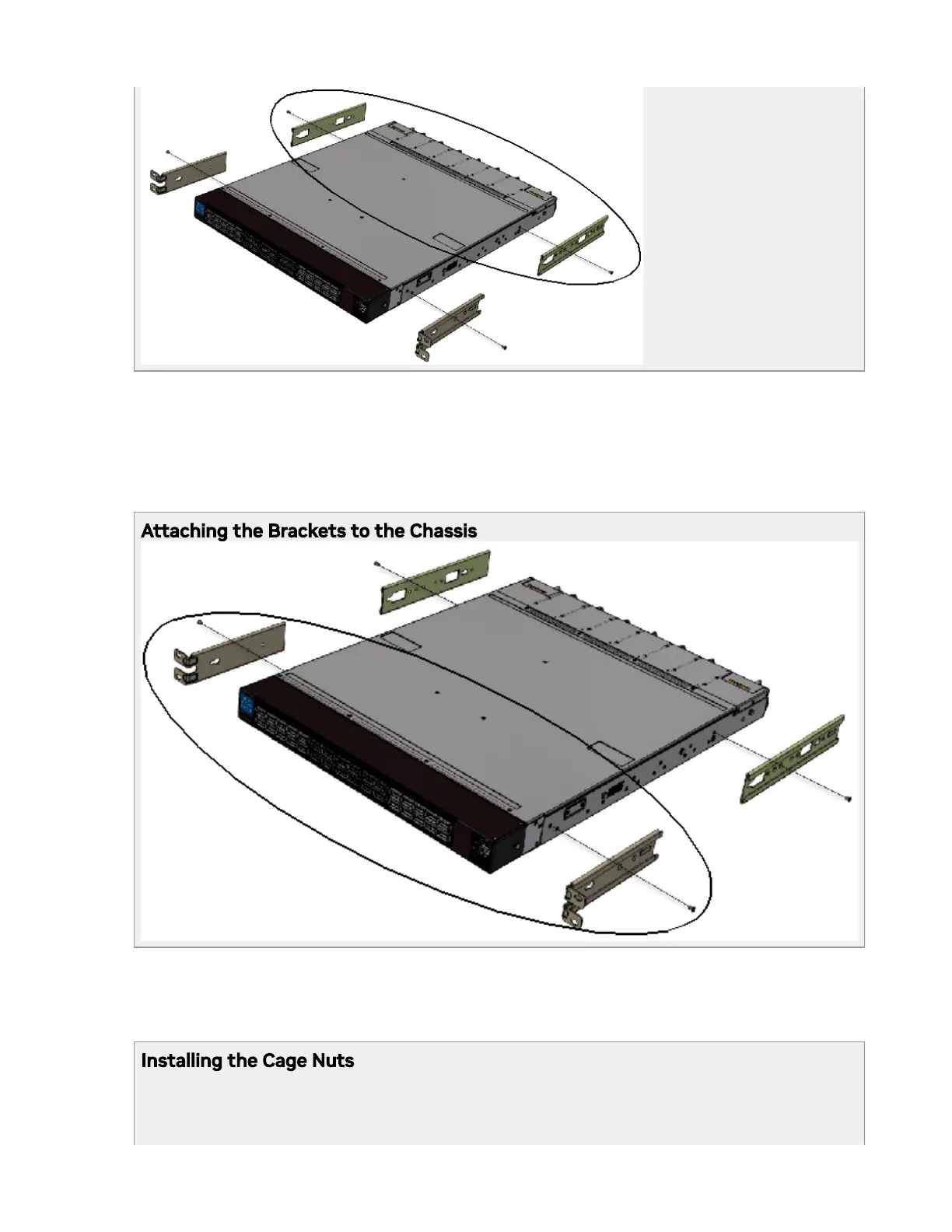

Attaching the Brackets to the Chassis
4. Install 8 cage nuts (D) in the desired 1U slots of the rack: 4 cage nuts in the non-
extractable side and 4 cage nuts in the extractable side.
Installing the Cage Nuts
