NVIDIA Spectrum-2 SN3000 1U and 2U Switch Systems Hardware User Manual 81

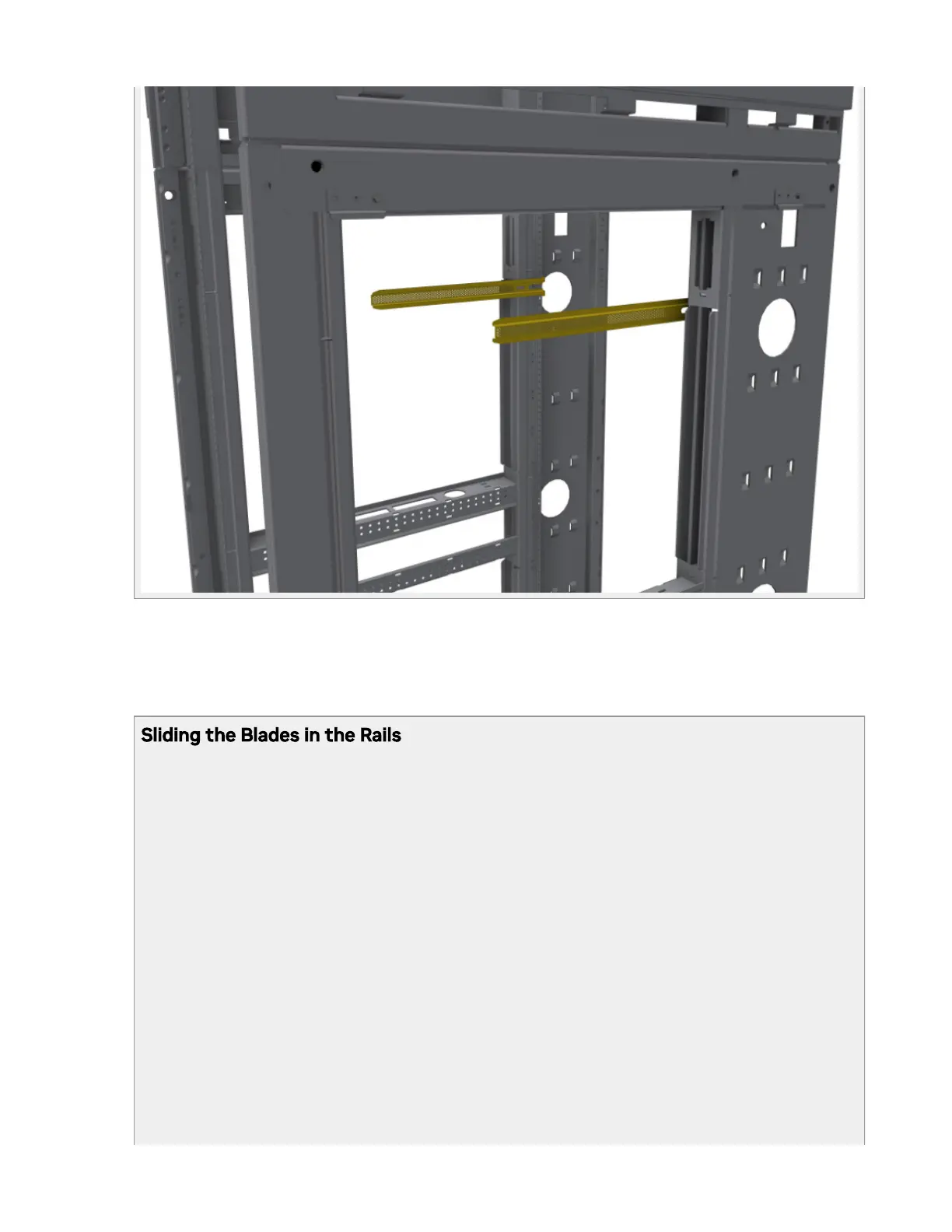

6. Slide the switch with the rails (A) and ears (C) installed on it into the left and right
rails (B) on the rack. Use four M6 screws (E) to x the rack mount ears (C) to the rack.
Do not tighten the screws yet.
Sliding the Blades in the Rails
