NVIDIA Spectrum-2 SN3000 1U and 2U Switch Systems Hardware User Manual 88

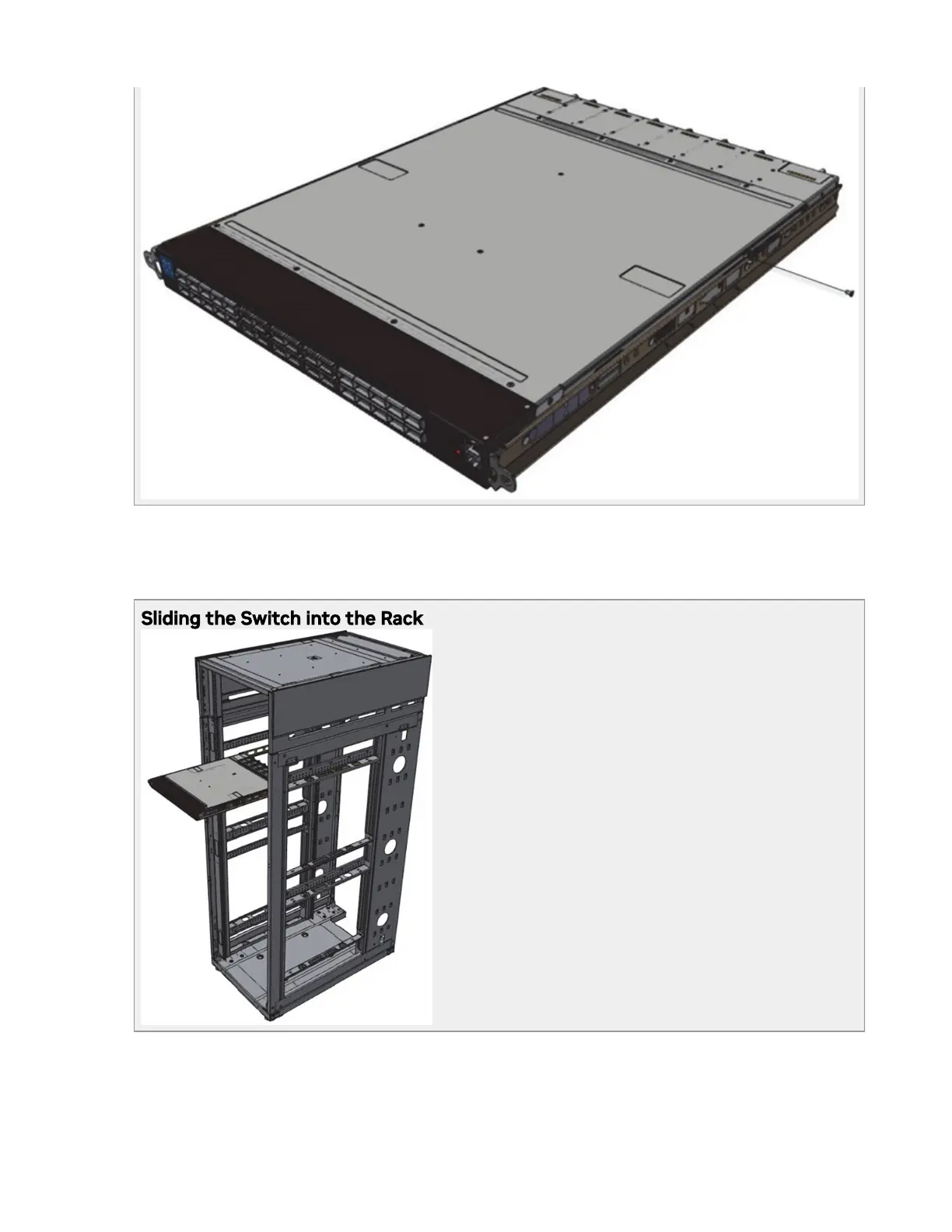

6. Slide the switch into the rack by carefully pushing the inner rails into the outer rails
installed on the rack.
Sliding the Switch into the Rack
7. When fully inserted, x the switch by closing the remaining 2 screws in the middle
and tightening the 8 screws inserted in Step 2 with a torque of 4.5±0.5 Nm.
