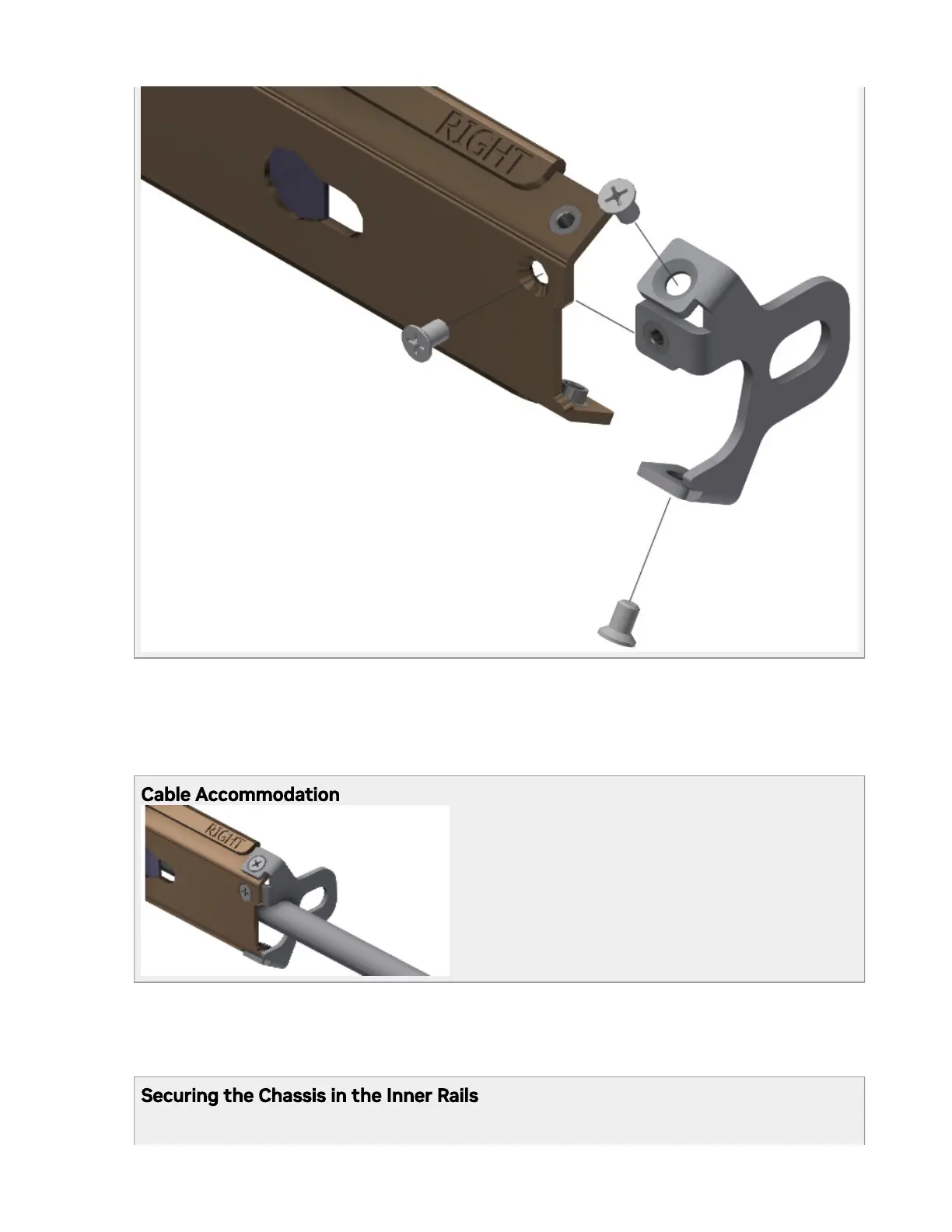

4. Route the power cable through either of the inner rails, and reassemble the brackets
by screwing the 3 screws (per rail) provided with the rail-kit (H) with a torque of
0.7±0.05Nm.
Cable Accommodation
5. Secure the chassis in the inner rails screwing the 2 at head Phillips screws (G) in the
designated points with a torque of 1.5±0.2 Nm.
Securing the Chassis in the Inner Rails
