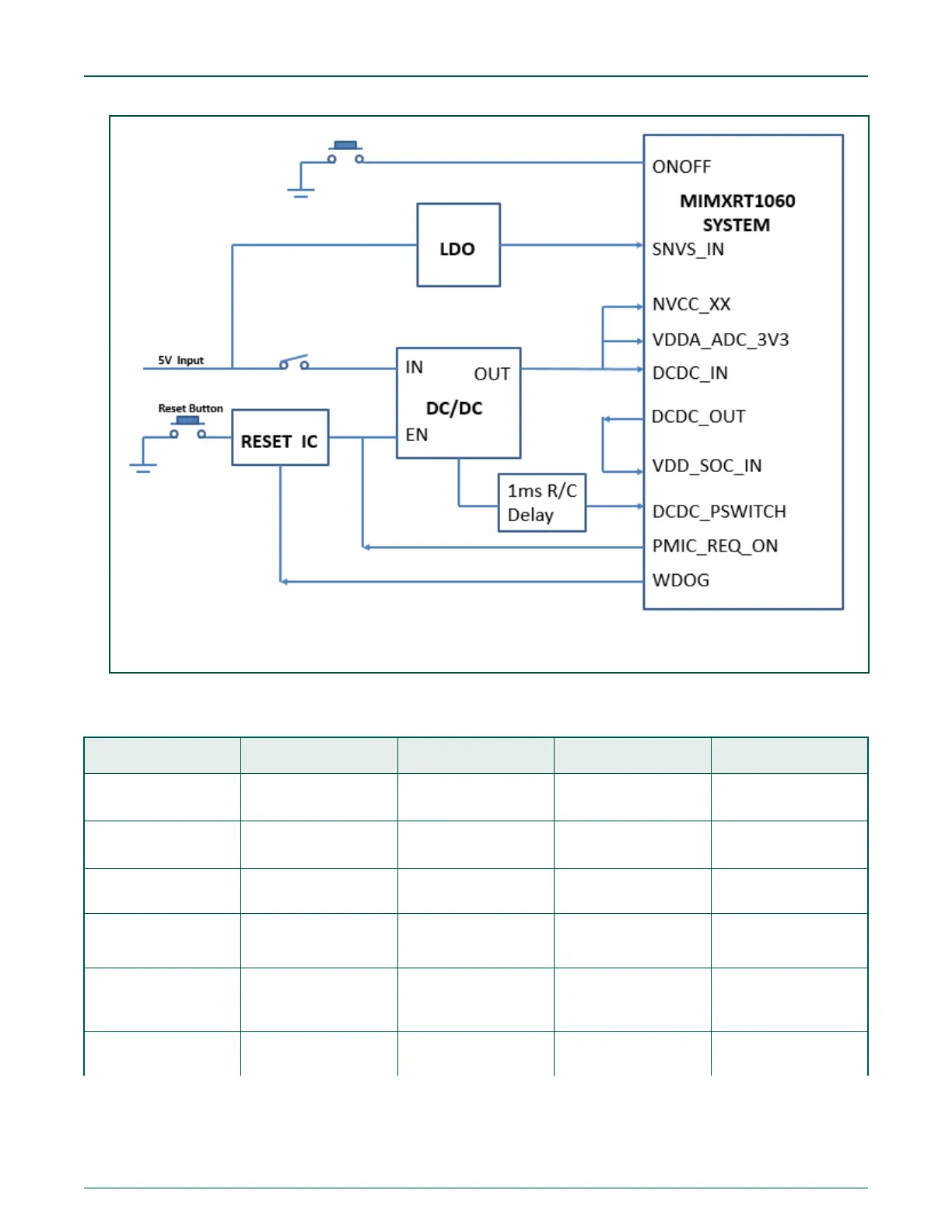

Figure 5. Power control diagram
The power rails on the board are shown in Table 6.
Table 6. Power rails
Power Rail MIN (V)
TYP (V) MAX (V) Description
VDD_SOC_IN
0.925 -- 1.3 Core supplies input
voltage
VDD_HIGH_IN
3
3.3 3.7 VDD_HIGH_IN supply
voltage
DCDC_IN 3
3.3 3.6 Power for DCDC
VDD_SNVS_IN
2.4
3
3.6
Power for SNVS and
RTC
USB_OTG1_VBUS
USB_OTG2_VBUS
4.4
5 5.5 Power for USB VBUS
VDDA_ADC 3
3.3 3.6 Power for 12-bit ADC
Table continues on the next page...
NXP Semiconductors
Specifications
MIMXRT1060/1064 Evaluation Kit Board Hardware User's Guide, Rev. 0, 06/2020
User's Guide 10 / 19
