RemarksActionStep

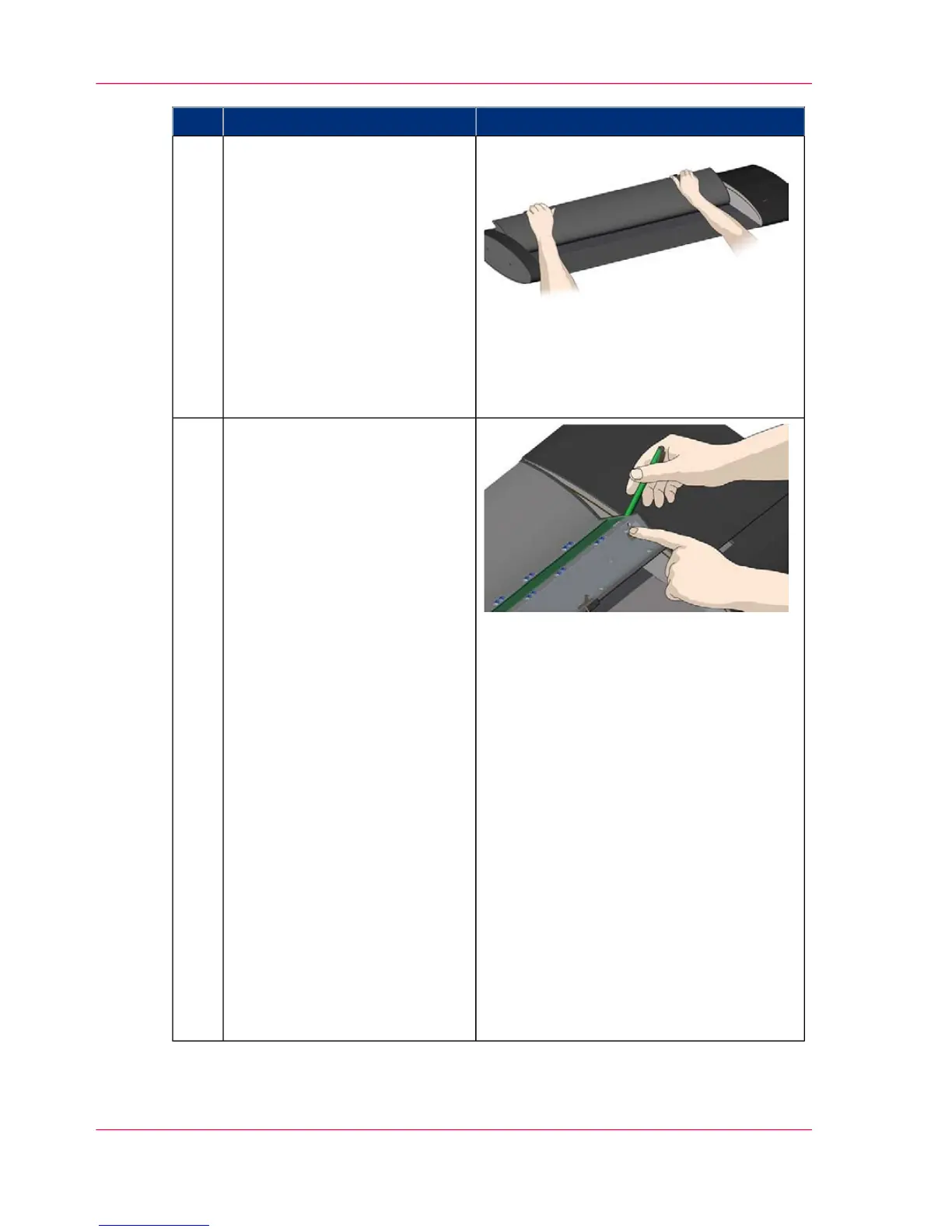

Open the scanner lid ( Pull the
lid back).
1. Retain pressure on the lid re-
lease buttons and your grip on
the lid edge as you pull the lid
backward towards your body.
2. Open the scanner lid all the
way back. You will need to locate
and recognize the key parts you
will use for replacing the glass
plate. See the overview of key
parts below.
4
Detaching the glass plate.
- free the 1st latch.
Stand at the front of the scanner.
You start at the scanner's right
side.
1. Detaching the first (right-
most) latch requires a sharp, flat
tool such as a pen or a small
screwdriver.
Note: Detaching the remaining
3 latches will not require use of
a tool.
2. Locate the arrow label at the
scanner's right side.
3. Position the tool just under
the glass plate edge where the
arrow label indicates. At the
same time; press down on the
latch release button in the first
(rightmost) square hole.
4. Carefully, use the tool to flip
the edge of the glass upwards
until it comes above and free of
the white latch that held it
down.
5. Release the latch release but-
ton.
5
Chapter 7 - Maintenance54
Replacing the glass plate
