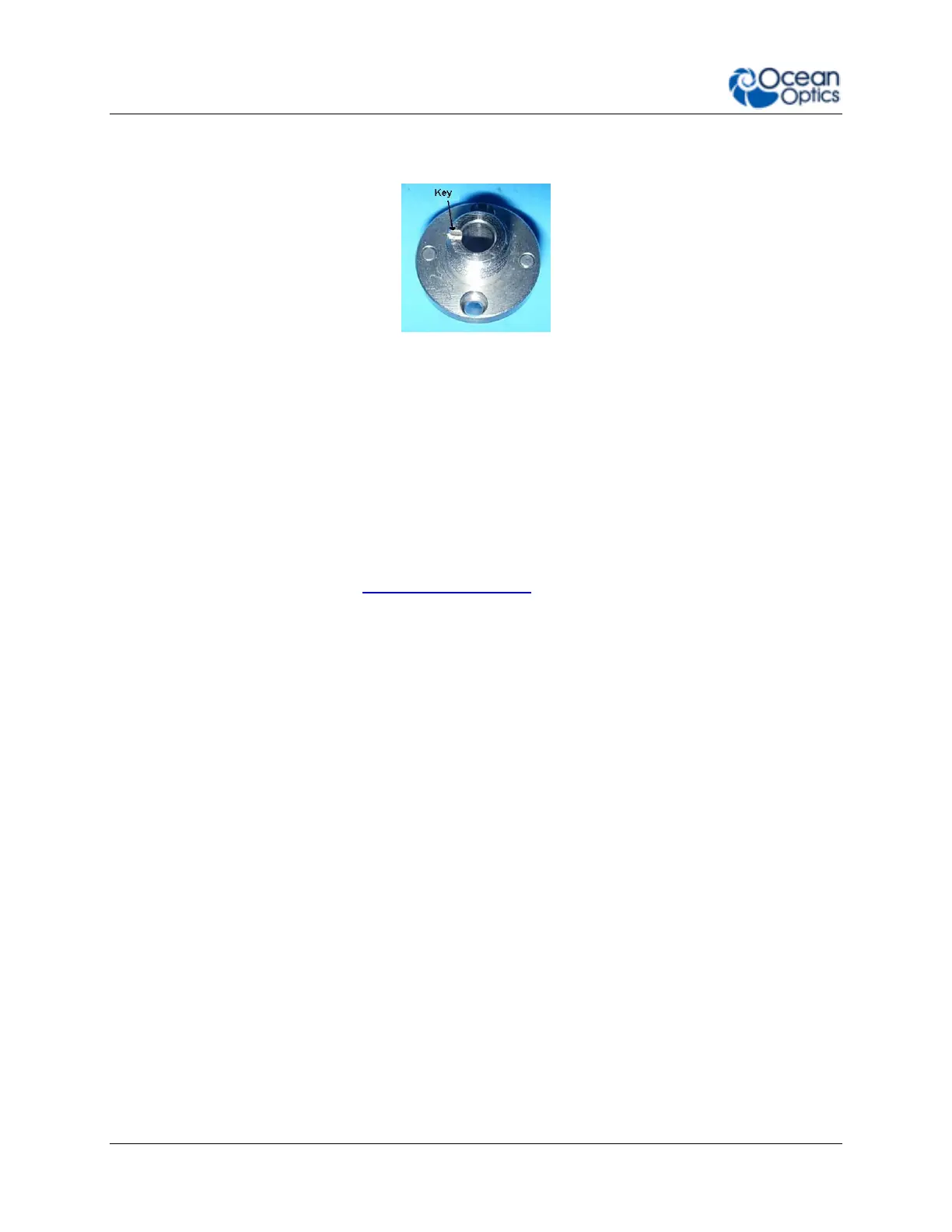

4. Put the new INTSMA slit connector into the spectrometer; with the key of the connector
on the left side.
5. Install the 2 screws again. Use the Allen key to tighten the screws carefully (do not
over-tighten).
6. If necessary, connect the fiber again.
Accessories
Ocean Optics provides a range of standard cables and accessories that connect the Flame to
our large range of sampling and light source accessories. Items specifically designed for the
Flame are described here; they are not provided with the Flame spectrometer and must be
purchased separately. Visit us at www.oceanoptics.com for a complete list of products available
for all of your spectroscopy needs.
Cables and Connectors
Cables are available to connect your Flame Spectrometer to accessories:
Accessory cable for light sources and other accessories (DB15 Connector Cable)
Accessory cable for HR-type connector (PAK50 Connector Cable)
Breakout board (DD4 -BREAKOUT-BOARD ) This breaks out the 40 pin DD4 connector to
a set of header pins that can be used to wire each pin, as required.
