Ocean Optics Flame-S - Connector Pinouts and Cables

2: Installation and Setup
225-00000-000-11-201604 15
DB15 Connector Cable (FLAME-CBL-DD4P-DB15P)
This cable connects the Flame to existing Ocean Optics accessories that use a DB-15HD
connector. These include the PX-2, LLS and HL-2000-FHSA light sources.

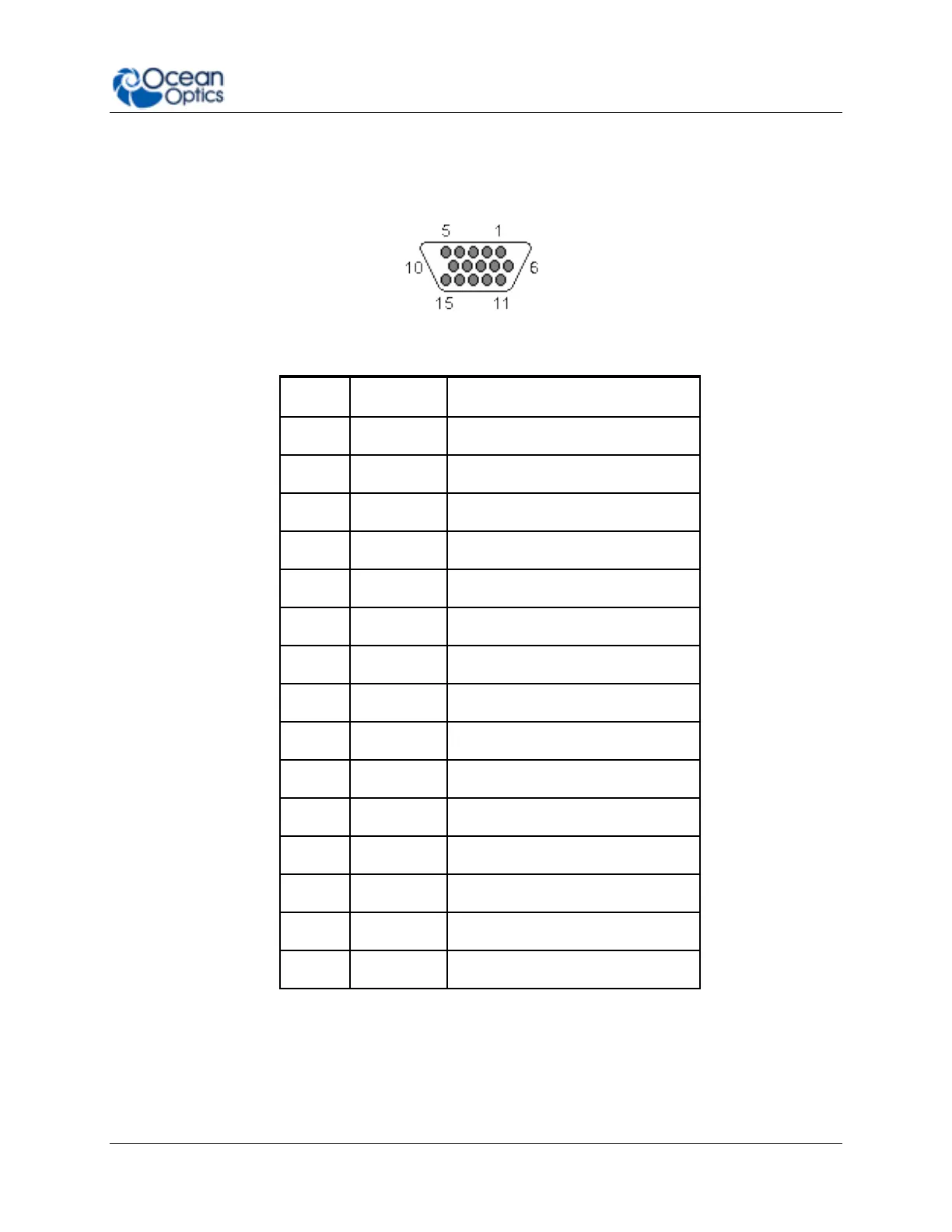

DD4-DB15 Pin Connections
15 PIN
DD4
Name
1
4
Single Strobe
2
3
Continuous Strobe
3
40
Vusb
4
2
External Trigger In
5
2
External Trigger In
6
7
GPIO 1
7
NC
Reserved (NC)
8
2
External Trigger In
9
8
GPIO 2
10
1
Ground
11
22
I2C SDA
12
21
I2C SCL
13
5
Lamp Enable
14
NC
Reserved (NC)
15
11
GPIO 4
