Ocean Optics Flame-S - Electrical Pinout and Communication Protocols

6: Technical Specifications
225-00000-000-11-201604 49
Electrical Pinout
The Flame features a 40-pin Accessory Connector, located on the front of the unit as shown:

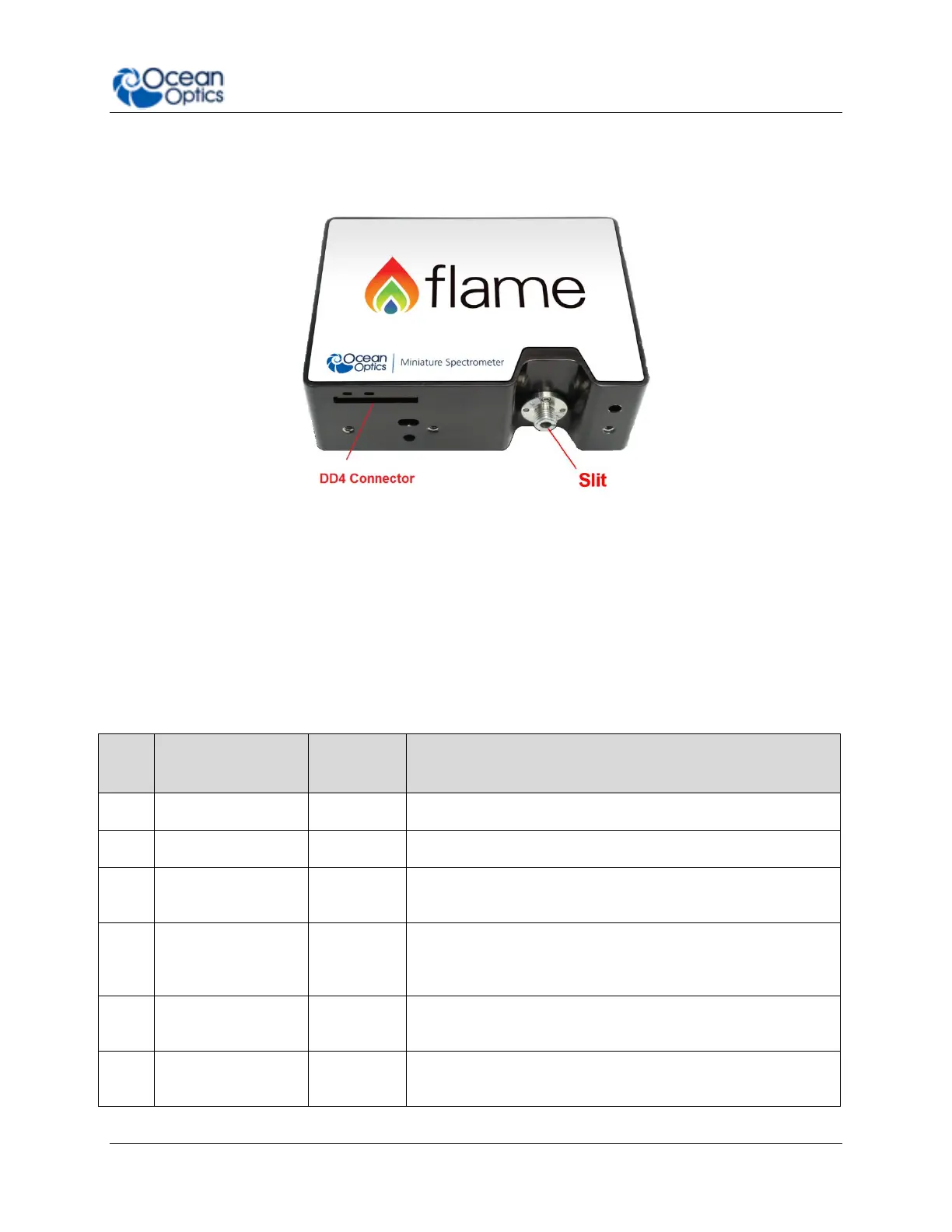

Location of Flame Accessory Connector
DD4 Accessory Connector Pinout Diagram
When facing the 40-pin Accessory Connector on the front of the vertical wall of the Flame, pin
number 1 is on the right.
Listed below is the pin description for the Flame Accessory Connector located on the front
vertical wall of the unit. The Flame will include a JAE DD4 receptacle, part number
DD4RA40JA1. Most accessories that plug into the Flame will include a JAE DD4 plug, part
number DD4PA40MA1. There is also a vertical connector, JAE part number DD4BA40WA1.
Pin #
Function
Voltage
Level
Description
1
Ground
N/A
Ground
2
Trigger
5 or 3.3 V
The TTL trigger signal.
3
Continuous Strobe
5 V
TTL output signal used to pulse a strobe that is divided
down from the Master Clock signal.
4
Single Strobe
5 V
TTL output pulse used as a strobe signal, which has a
programmable delay relative to the beginning of the
spectrometer integration period.
5
Lamp Enable
5 V
A TTL signal that is driven Active HIGH when the Lamp
Enable command is sent to the Flame.
6
GPIO 0
2.5 V
General Purpose Software Programmable Digital
Inputs/Output*
