6: Technical Specifications
58 225-00000-000-11-201604

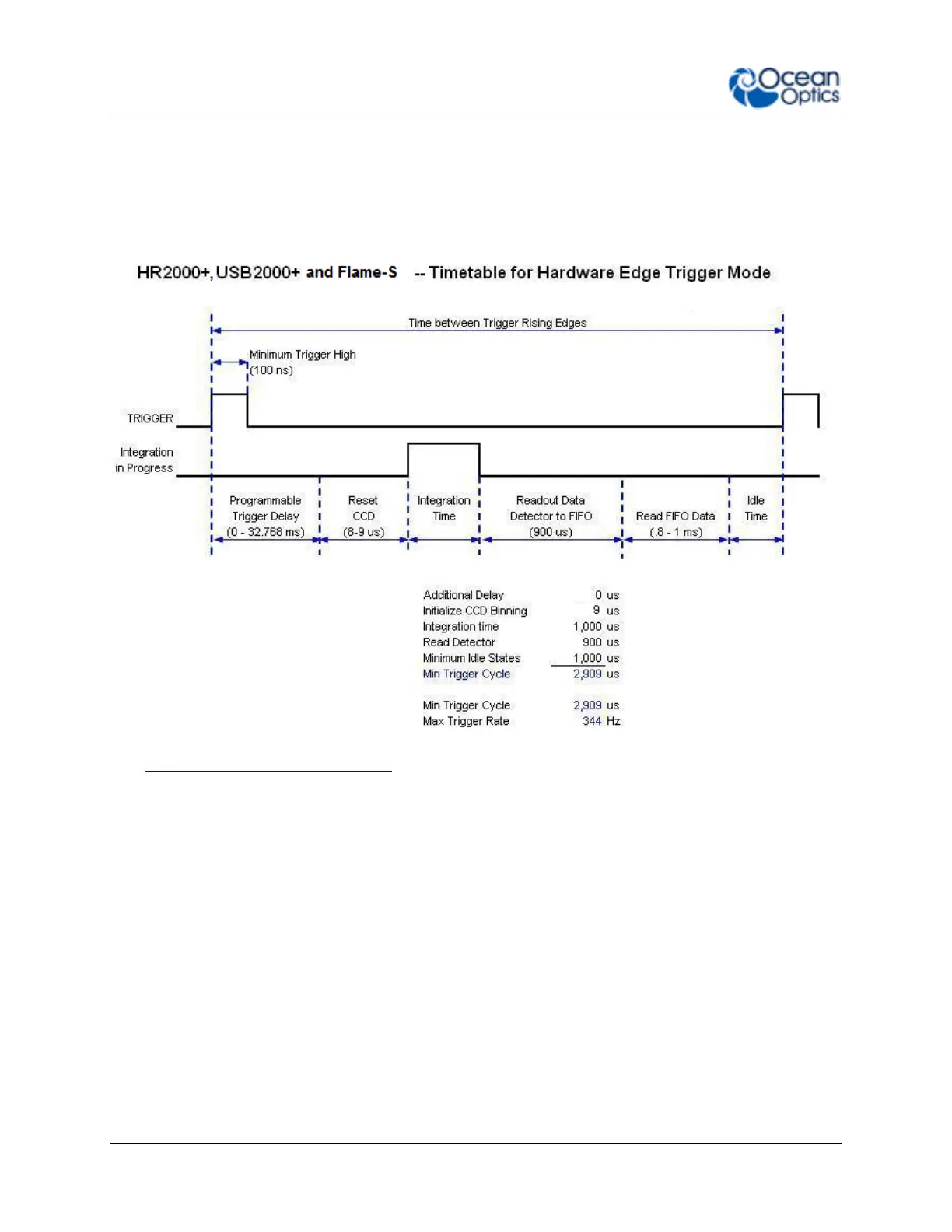

After the integration period, the spectrum is retrieved and is ready to be read by the user. If
another trigger is sent a new integration cycle will begin. If a spectrum request is not received
before the integration cycle has ended then that data will be deleted and a new trigger and
spectrum request is required. Only one acquisition will be performed for each External Trigger
pulse, no matter what the pulse’s duration is. No further spectra are acquired until the original
spectrum is read by the user.
See DD4 Accessory Connector Pinout Diagram to locate the pins to set up triggering.
