23
OCi OPERATING MANUAL
© 2002 Design, 2013 Doc. No. 12-5335-r02 (9/12/13)
SET TLBG (TISSUE LOADING BAR GRAPH) ALARM, information includes (Fig. 37):
> Graphics TLBG ALARM.
> Graphics OFF, ON, and SET; last saved (OFF or ON) fl ashing upon access.
> TLBG segments (last number set) with icon.
• S (2 sec) - to revert to the Set Alarms Menu without changing the setting.
• A (< 2 sec) - to step forward (down screen) through the selections OFF, ON, SET.
• M (< 2 sec) - to step back (up screen) through the selections.
• S (< 2 sec) - save the selection.
>> If OFF or ON is selected, operation reverts to the Alarms Menu.
>> If SET is selected, the TLBG segments will fl ash.
• A (< 2 sec) - to step upward through set points from 1 to 4 segments one at a time.
• M (< 2 sec) - to step back through set points one at a time.
• S (< 2 sec) - to save the setting with the TLBG segments solid and SET fl ashing allowing ON or OFF to be selected.
• M (2 sec), or 2 min of no button action, - to revert to the Surface Main.
FREE Mode has a separate TLBG Alarm.
SET DTR (DIVE TIME REMAINING) ALARM, information includes (Fig. 38):
> Graphics DTR ALARM.
> Graphics OFF, ON, and SET; last saved (OFF or ON) fl ashing upon access.
> DTR value (hr:min), last set.
• S (2 sec) - to revert to the Set Alarms Menu without changing the setting.
• A (< 2 sec) - to step forward (down screen) through the selections OFF, ON, SET.
• M (< 2 sec) - to step back (up screen) through the selections.
• S (< 2 sec) - save the selection.
>> If OFF or ON is selected, operation reverts to the Alarms Menu.
>> If SET is selected, the Time digits will fl ash.
• A (hold) - to scroll through set points 8/sec from 0:05 to 0:20 (hr:min) in increments of 0:01 (:min).
• A (< 2 sec) - to step upward through set points one at a time.
• M (< 2 sec) - to step back through set points one at a time.
• S (< 2 sec) - to save the setting with the Time digits solid and SET fl ashing allowing ON or OFF to be selected.
• M (2 sec), or 2 min of no button action, - to revert to the Surface Main.
SET TURN (TMT 1 PRESSURE) ALARM, information includes (Fig. 39):
> Graphics TURN ALARM.
> Graphics OFF, ON, and SET; last saved (OFF or ON) fl ashing upon access.
> Pressure value with PSI (or BAR) icon, last set.
• S (2 sec) - to revert to the Set Alarms Menu without changing the setting.
• A (< 2 sec) - to step forward (down screen) through the selections OFF, ON, SET.
• M (< 2 sec) - to step back (up screen) through the selections.
• S (< 2 sec) - save the selection.
>> If OFF or ON is selected, operation reverts to the Alarms Menu.
>> If SET is selected, the Pressure digits will fl ash.
• A (hold) - to scroll through set points 8/sec from 1000 to 3000 PSI (70 to 205 BAR) in increments of 250 PSI (5 BAR).
• A (< 2 sec) - to step upward through set points one at a time.
• M (< 2 sec) - to step back through set points one at a time.
• S (< 2 sec) - to save the setting with the Pressure digits solid and SET fl ashing allowing ON or OFF to be selected.
• M (2 sec), or 2 min of no button action, - to revert to the Surface Main.
SET END (TMT IN USE PRESSURE - 1, 2, 3, or 4) ALARM, information includes (Fig. 40):
> Graphics END ALARM.
> Graphics ON and SET; with ON fl ashing upon access.
This feature does not have an OFF selection.
> Pressure value with PSI (or BAR) icon, last set.
• S (2 sec) - to revert to the Set Alarms Menu without changing the setting.
• A or M (< 2 sec) - to toggle between ON and SET.
• S (< 2 sec) - save the selection.
>> If ON is selected, operation reverts to the Alarms Menu.
>> If SET is selected, the Pressure digits will fl ash.
• A (hold) - to scroll through set points 8/sec from 300 to 1500 PSI (20 to 105 BAR) in increments of 100 PSI (5 BAR) .
• A (< 2 sec) - to step upward through set points one at a time.
• M (< 2 sec) - to step back through set points one at a time.
• S (< 2 sec) - to save the setting with the Pressure digits solid and SET fl ashing allowing ON to be selected.
• M (2 sec), or 2 min of no button action, - to revert to the Surface Main.

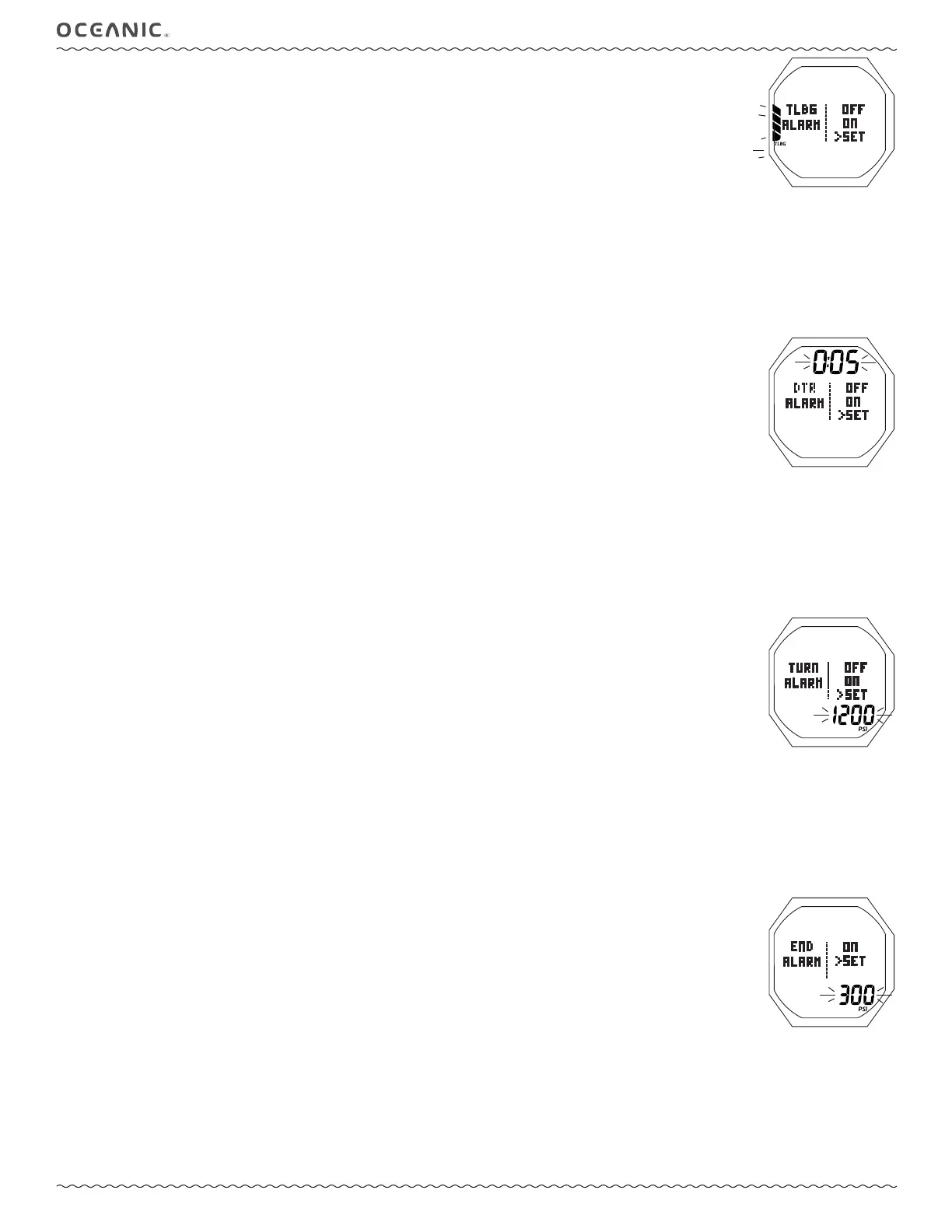

Fig. 37 - SET TLBG AL
Fig. 38 - SET DTR AL
Fig. 39 - SET TURN AL
(TMT 1 only)
Fig. 40 - SET END AL
(TMT in use)
