3. ENGINE
3-

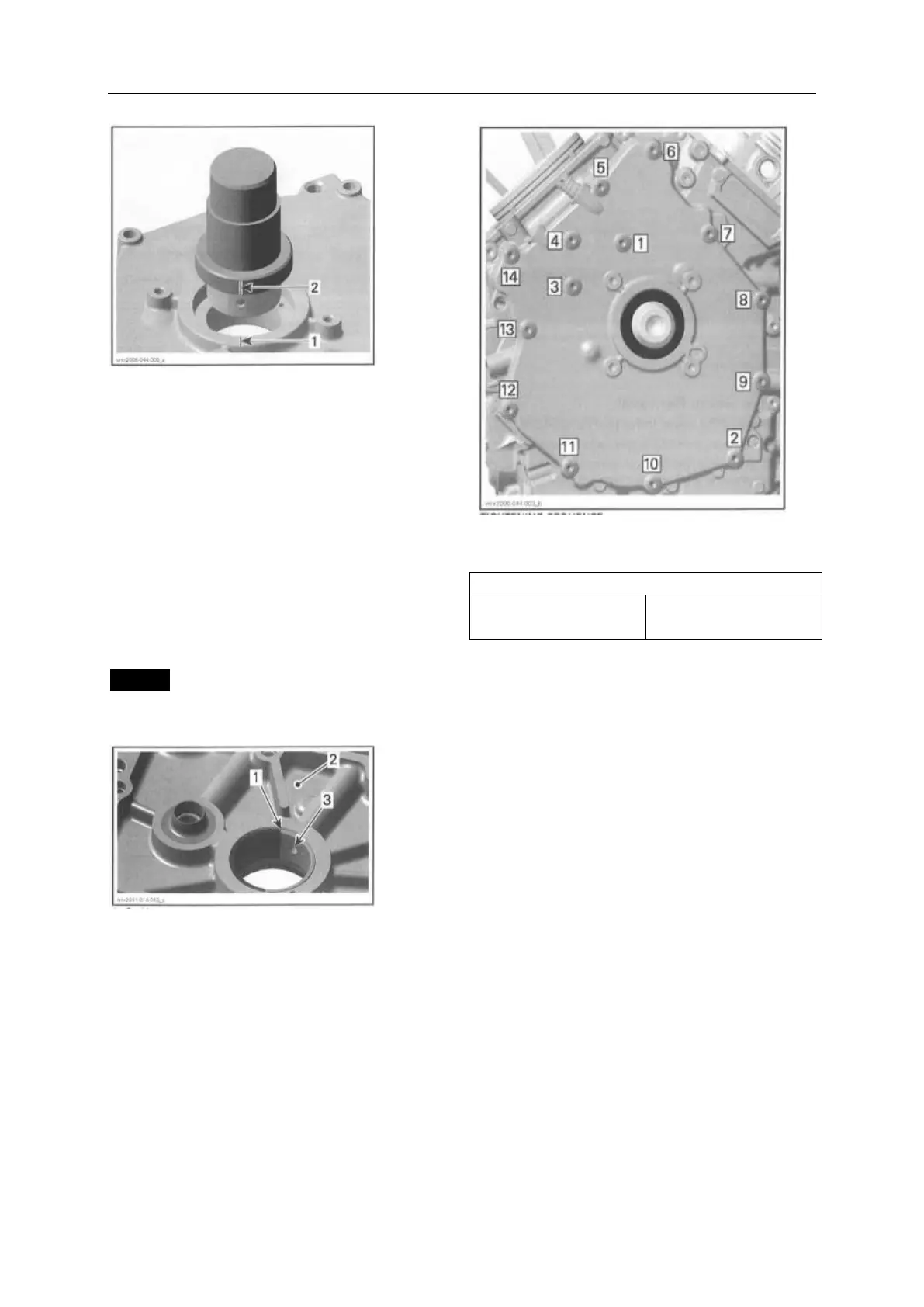

1. Mark position of oil bore on PTO cover
2. Mark position of oil bore on plain bearing
remove/installer
Carefully press-in the plain bearings in the same
direction as during disassembly, from the outside
towards the inside. Support PT0 cover with
suitable support with straight surface, in order to
prevent damage of the sealing surface.
NOTE: Wrong oil bore position will stop oil
supply to plain bearings and wil1 damage the
engine.
NOTICE The partition of the plain bearings must
be positioned near to oil bore in counterclockwise
direction.
1. Partition
2. PTO cover (inside)
3. Oil bore
PT0 Cover Installation
For installation, reverse the removal procedure.
Pay attention to the following details.
NOTE: At installation, replace PTO cover gasket
and oil seal.
Tighten PT0 cover screws following the illustrated
sequence.
TIGHTENING SEQUENCE
10N·m 士 1 N·m
(89lbf·in 士 9lbf·in)
DRIVEGEARS
Drive Gears Location
The engine is equipped with a breather gear which
prevents engine o11 coming out through the
breathing system into the air intake system. The
drive gears are located on the engine PT0 side
behind the PT0 cover.
