3. ENGINE
3-
Never substitute conical spring washer and/ or screw with jobber ones. Always use genuine parts for
this particular case.
Install thrust washer with its concave side towards drive pulley then install drive pulley screw.
To torque the drive pulley screw, block the drive pulley. Refer at the beginning of this section.
When the drive pulley is blocked, torque screw to 100N.m.

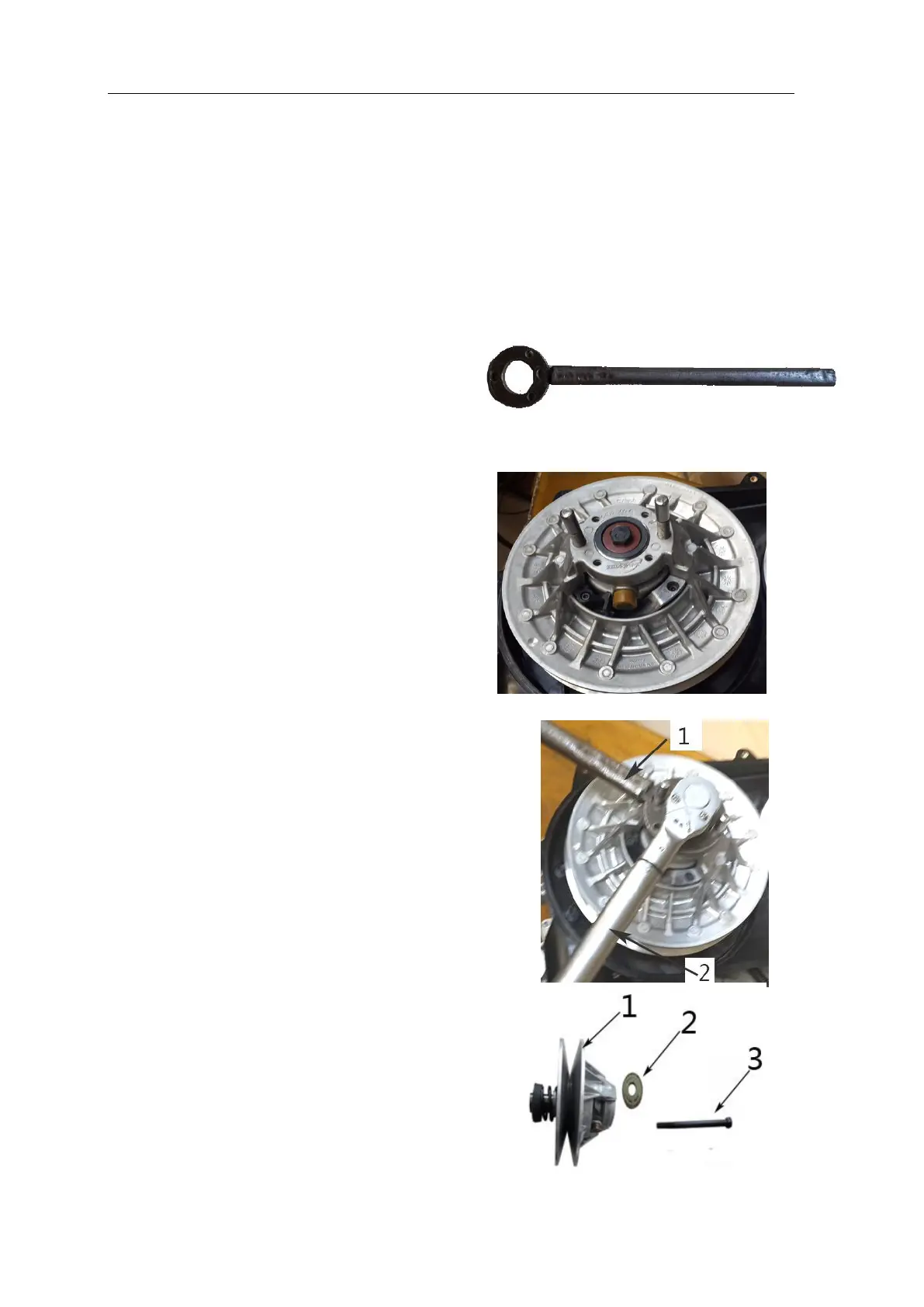

DRIVEN PULLEY
Removal
remove variator cover and gasket.
Remove belt
Using the pulley holding tool, hold the driven
pulley during the removal of the driven pulley
screw, do not remove screw completely.
Put in tow STUD to Driven Pulley
1. Driven Pulley holding tool
2. Torque wrench
When the driven pulley is blocked, unscrew the
driven pulley screw.
1. Driven pulley
2. Thrust washer
3. Driven pulley screw
