3. ENGINE
3-
92
If resistance is out of specification, check
wires and connectors. Repair and reset
fault codes.
If resistance is good and the other tests
succeeded, replace the GBPS and reset
fault codes.
NOTE: The GBPS must be reset.

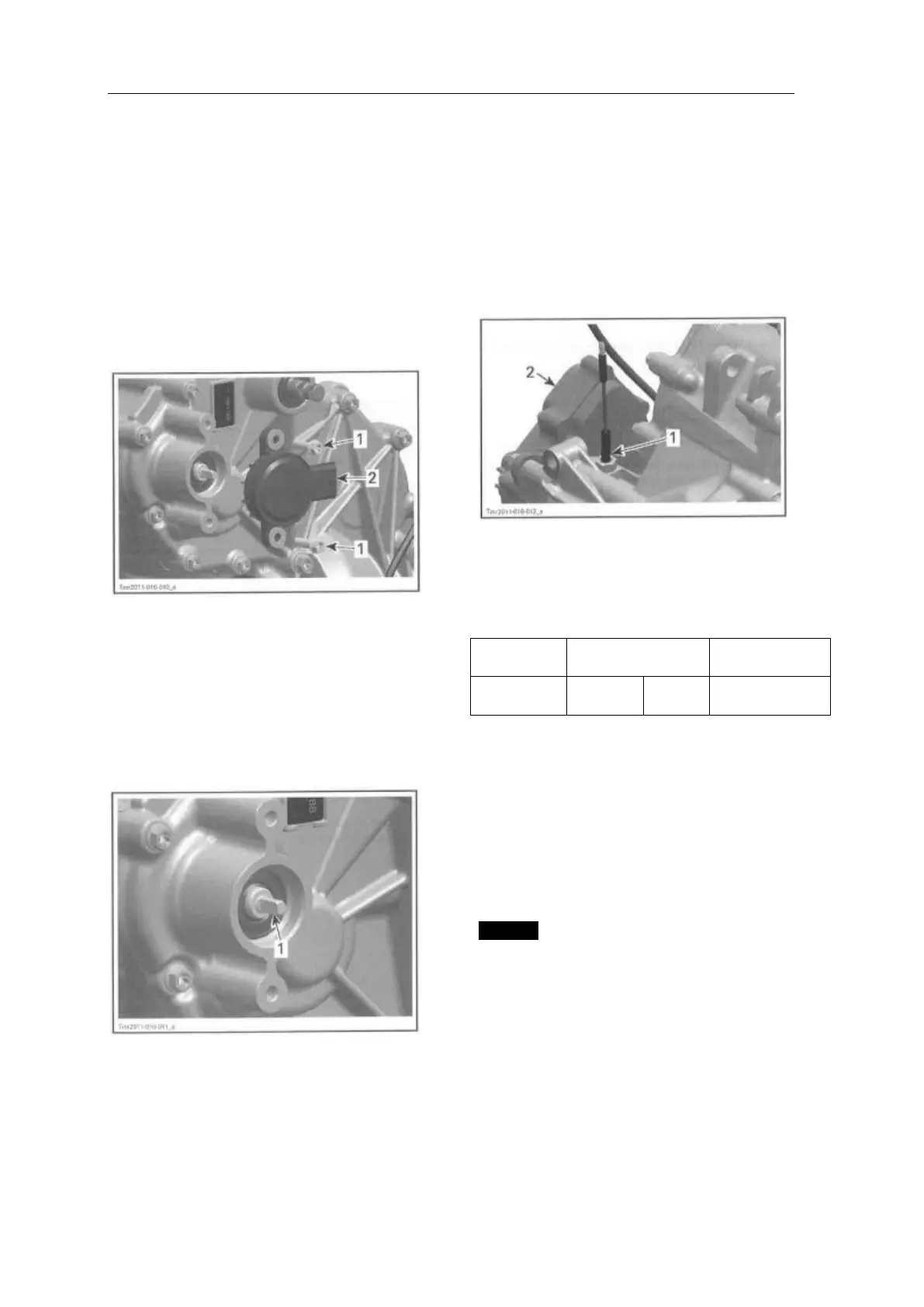

GBPS Removal
Set shift lever in NEUTRAL position.
Unplug GBPS connector.
Remove screws and withdraw GBPS.
1. Screws
2. Gearbox Position Sensor (GBPS)
GBPS Installation
For installation, reverse the removal procedure.
Pay attention to the following details.
Shift lever must be in the NEUTRAL position.
Align GBPS with the flat on the shift drum
shaft.
1. flat on shift drum shaft
Reset the GBPS. Refer to GBPS RESET in this
subsection.
4WDINDICATOR SWITCH
4WDlndicator Switch Access
To reach the4WD indicator switch, remove the
fo1lowing parts:
_ Passenger seat
- RH lateral console panel
- Fuel tank cowl.
4WDlndicator Switch Removal
Disconnect 4WD indicator switch connector.
1. 4 WD indicator switch
2. Actuator
4WDlndicator Switch Test
Measure switch resistance as follows
SWITCH
POSITION
SWITCH WIRE
RESISTANCE
2WD
BLACK/
BEIGE
Engine
ground
Infinite (OL)
If the resistance is out of specification, replace
the 4WD indicator switch.
4WDlndicator Switch Installation
For installation, reverse the removal procedure.
Pay attention to the following details.
Take care do not damage indicator switch
threads during installation.
Apply carefully some LOCTITE 5910(P/N293
800 081) on threads of indicator switch.
NOTICE Do not apply Loctite5910 on switch
plunger, as it will lead to switch malfunction.
