ODES UTV Desertcross 1000cc-3 - ACTUATOR

3. ENGINE
3-
93
ACTUATOR
Actuator Access
To access the actuator, remove the fol1owing
parts:
- Passenger seat
- RH lateral console panel
- Fuel tank cowl.
Remove screws securing fuel tank and move
tank on passenger's floor without disconnecting
hoses and connector from fuel pump.
Actuator Test
Check if the2WD/4WD selector works properly.
Unplug actuator connector.
Turn ignition key ON.
Measure voltage as follows .
REQUIRED TOOL
FLUKE 115
MULTIMETER
SWITC
H
POSITI
ON
SWITCH WIRE
VOLTA
GE
2WD
WHITE/BL
UE
WHIT
E
Battery
voltage
4WD
WHITE/
BLACK
If the selector is out of specifications, check
wires, connectors and replace the selector if
necessary.
If the selector is good, check the vehicle
harness.
If the vehicle harness is good, replace the
actuator.
Actuator Removal
NOTE: Before beginning any servicing on the
actuator, make sure the vehicle is in4WD
position.
No need to remove engine from vehicle.
Place a drain pan under actuator.
Remove actuator screws.

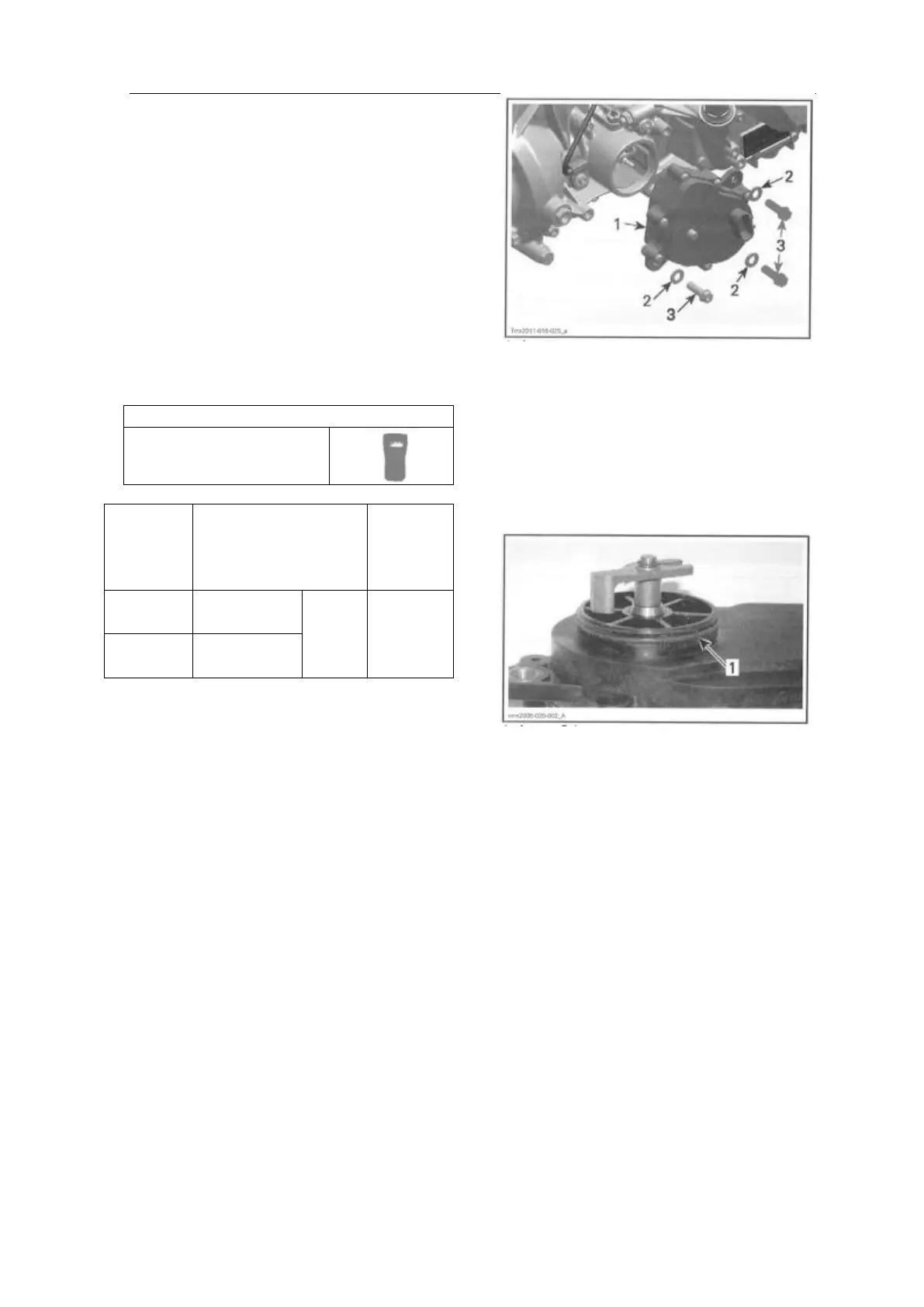

1. Actuator
2. Washer
3. Screw
Pull the actuator out of housing.
Actuator Installation
Apply a small amount of SUPER LUBE
GREASE (P/N293 550 030) on actuator 0-ring.
1. Actuator0-ring
Ensure coupling fork is in4WD position
(toward the front of vehicle).
