2.PERIODIC MAINTENANCE
2-

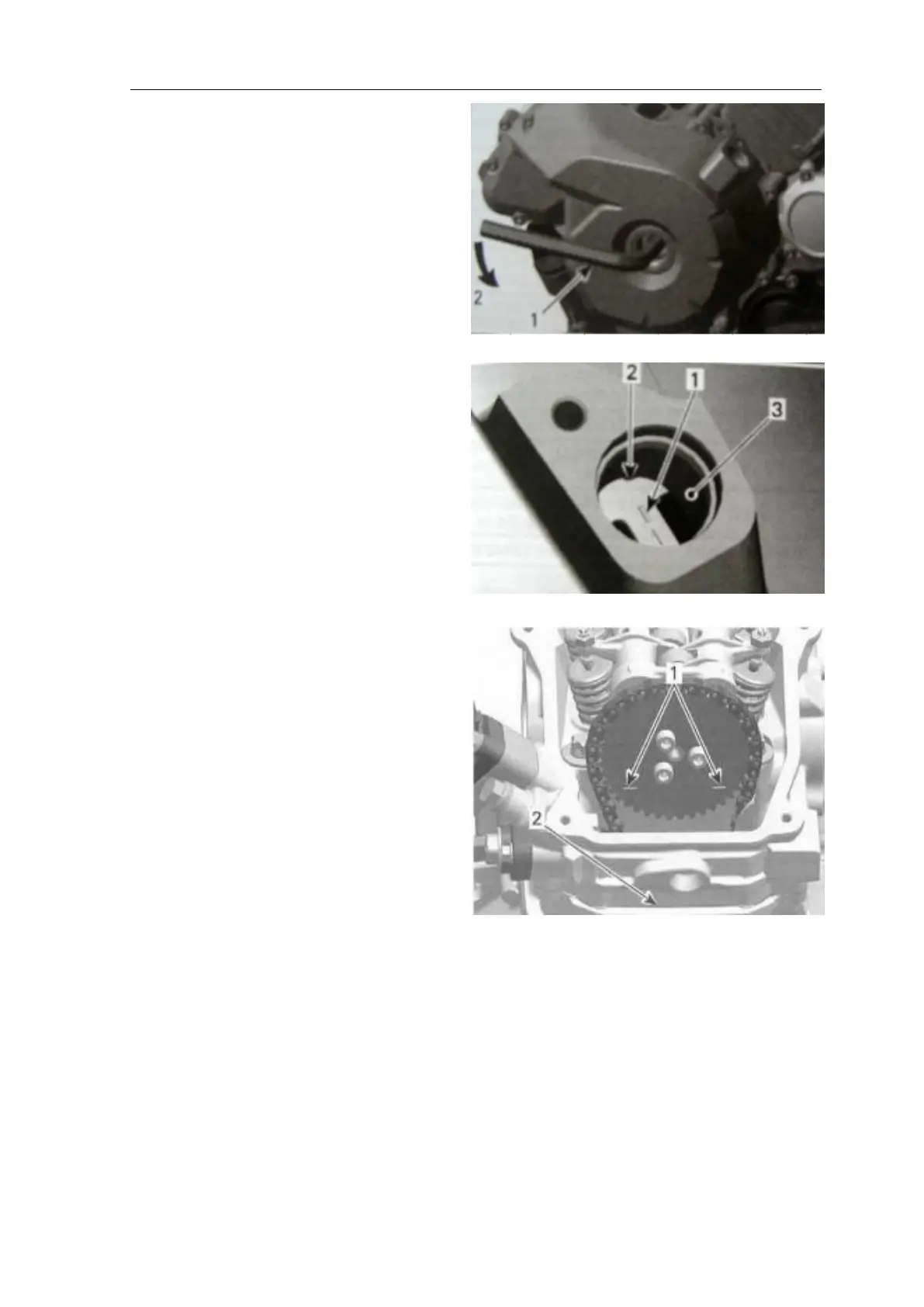

Valve clearance of cylinder 1
Using a 14 mm Allen key, turn crankshaft
280 °counterclockwise.
1. Allen key 14mm
2. Turn crankshaft 280°counterclockwise
Until marks on magneto flywheel “1” and
magneto cover are aligned.
1. Mark “1” on magneto flywheel
2. Notch on magneto cover
3. Location of crankshaft position sensor
At TDC ignition, the printed marks on the
camshaft timing gear have to be parallel to
cylinder head base as per following
illustration.
TYPICAL
1. Printed marks on camshaft timing gear
2. Cylinder head base
