10. ELECTRICAL SYSTEM
10-
10. ELECTRICAL SYSTEM
Warning
‹ Bulb will be very hot after turning on headlamp. Please do not touch it immediately after its off.
In operation, bulb needs to be cooled.
‹ In warning inspection of water temperature, fire or high temperature liquid may be needed.
Keep it far away from inflammable and do not to be burnt.
‹ The temperature will be very high in turning of headlamp. For replacement, grease dirt will be
splashed to glass in case of operation with bare hands or wearing dirty gloves. As a result,
hot spots and glass deformation may be caused with damage to bulb as well.
‹ Pay attention to the following in replacing bulb:
-- Do not replace bulb when it is on. Turn off ignition switch and replace it after cooling bulb.
-- In order to avoid splashing grease to glass, wear clean gloves in replacing bulb.
-- Use cloth with alcohol or banana water to clean glass to prevent any grease sticking to glass.
‹ Check battery to confirm whether it is normal.
‹ Regularly check switch and do not dismantle it from vehicle in inspection.
‹ Cables and wires of each part need to be arranged reasonably.
power supply system

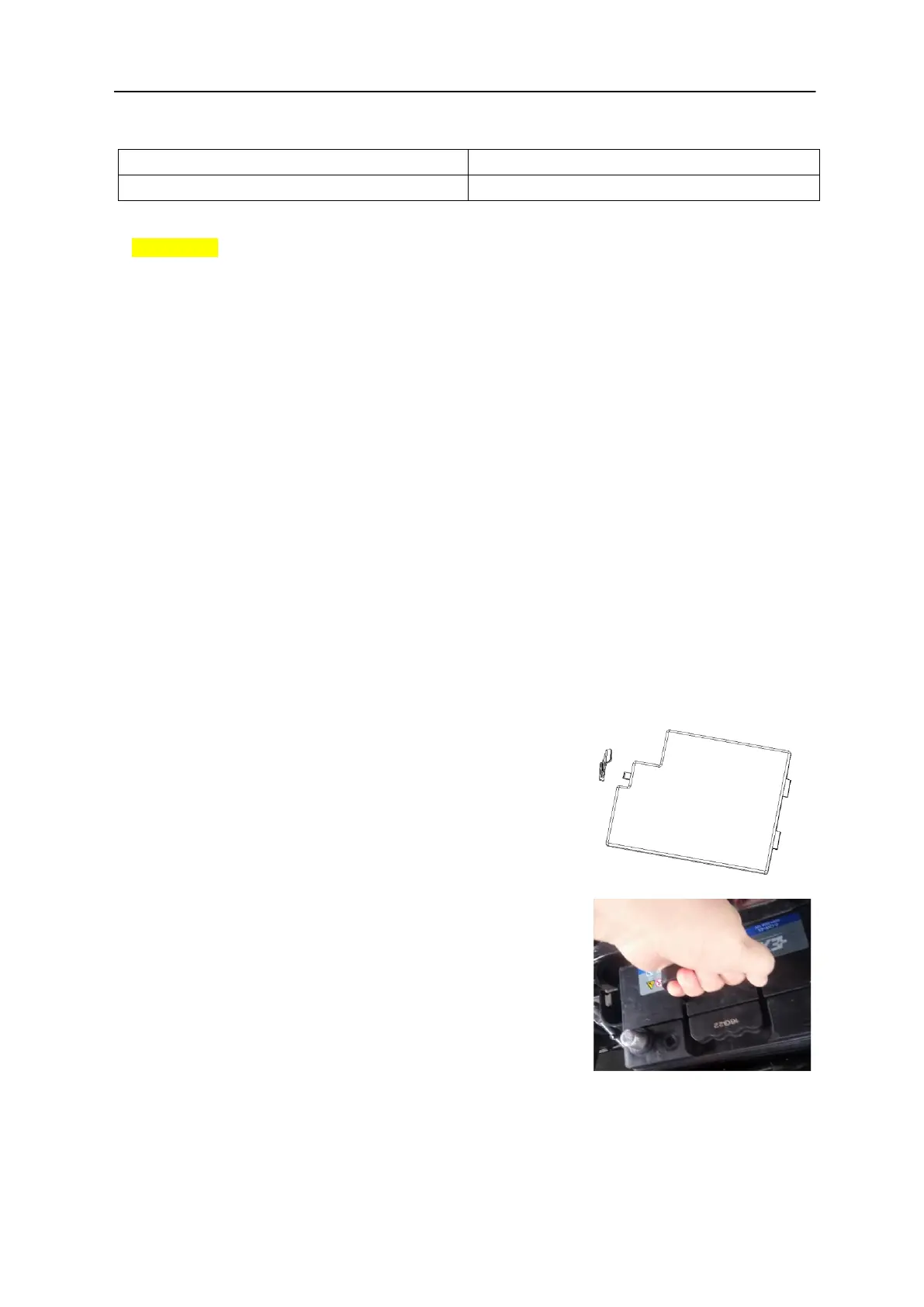

Removal and installation of battery
1、The cab seat has been opened;
2、 Open the lid of the battery box, open the
upper lid;
3、Use appropriate tools to loosen the positive
and negative
clamps of the battery connection post and
remove the positive
and negative connection post from the battery
connection post;
4、Remove the battery from the battery box
Precautions for Fuse Application
After determining the cause of the burn and troubleshooting, replace the broken fuse with a
specified type of fuse. If no troubleshooting is done before replacement, the fuse may be
burned again。
