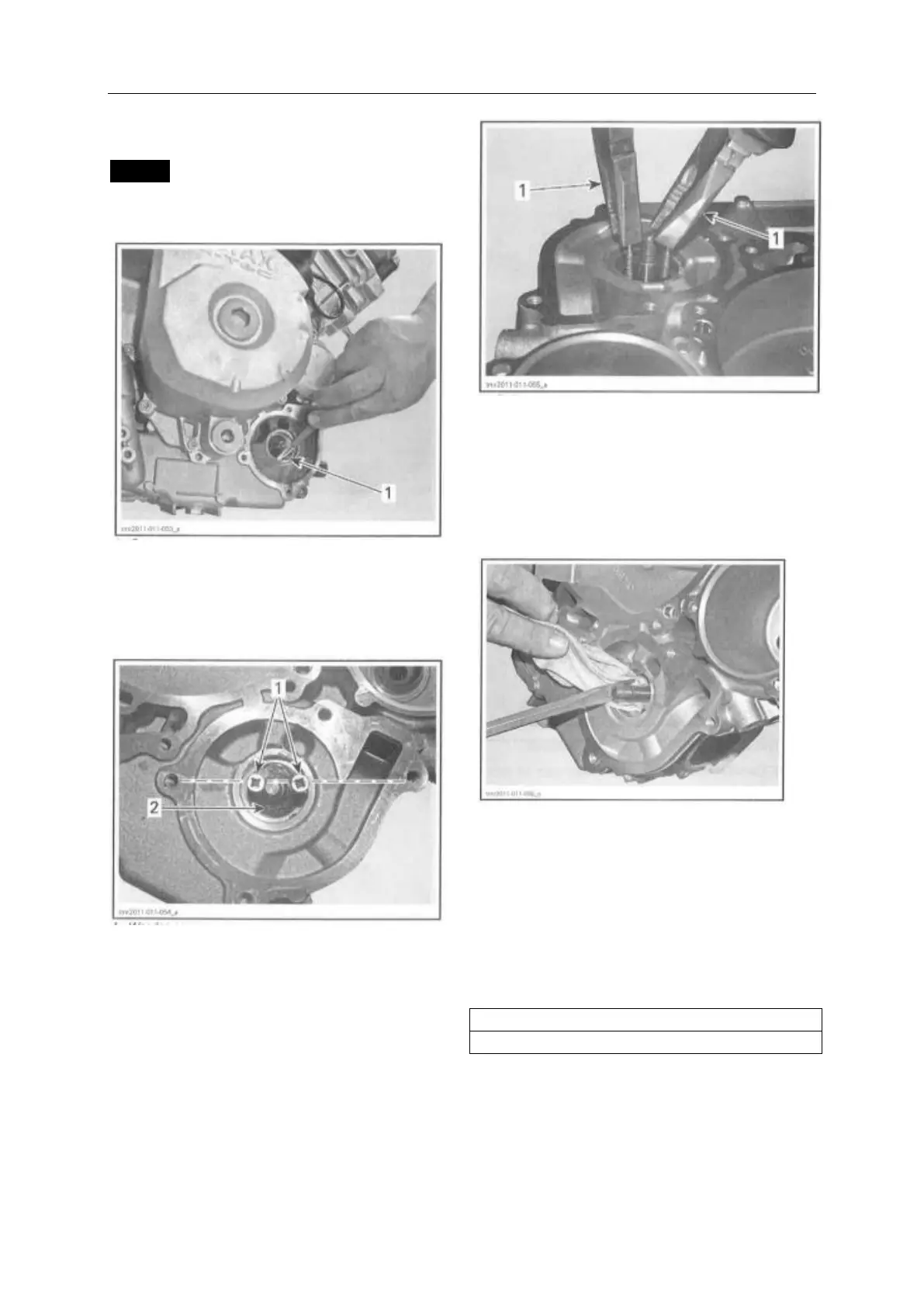

5. Thoroughly remove carefully sealing residue
and burr of rotary seal using a scraper.
NOTICE Be careful not to damage water pump
shaft.
1. Scraper
6. Install 2 wooden screws in the seal
1. Wooden screws
2. Oil seal
7. Remove oil seal from crankcase by pulling
screws with pliers.
1. Pull on screws to remove seal
8. Check water pump shaft axial play. lf not
adequate, engine must be disassembled to replace
the water pump shaft.
9. Clean oil seal seat.
Seals Installation
1. Apply engine oi1 on water pump shaft.
2. Apply grease to the lips of the oil seal.
3. Carefully install the oil seal over the water pump
shaft.
4. Push the oil seal into the water pump cavity.
17mm(11/16in) deep socket
