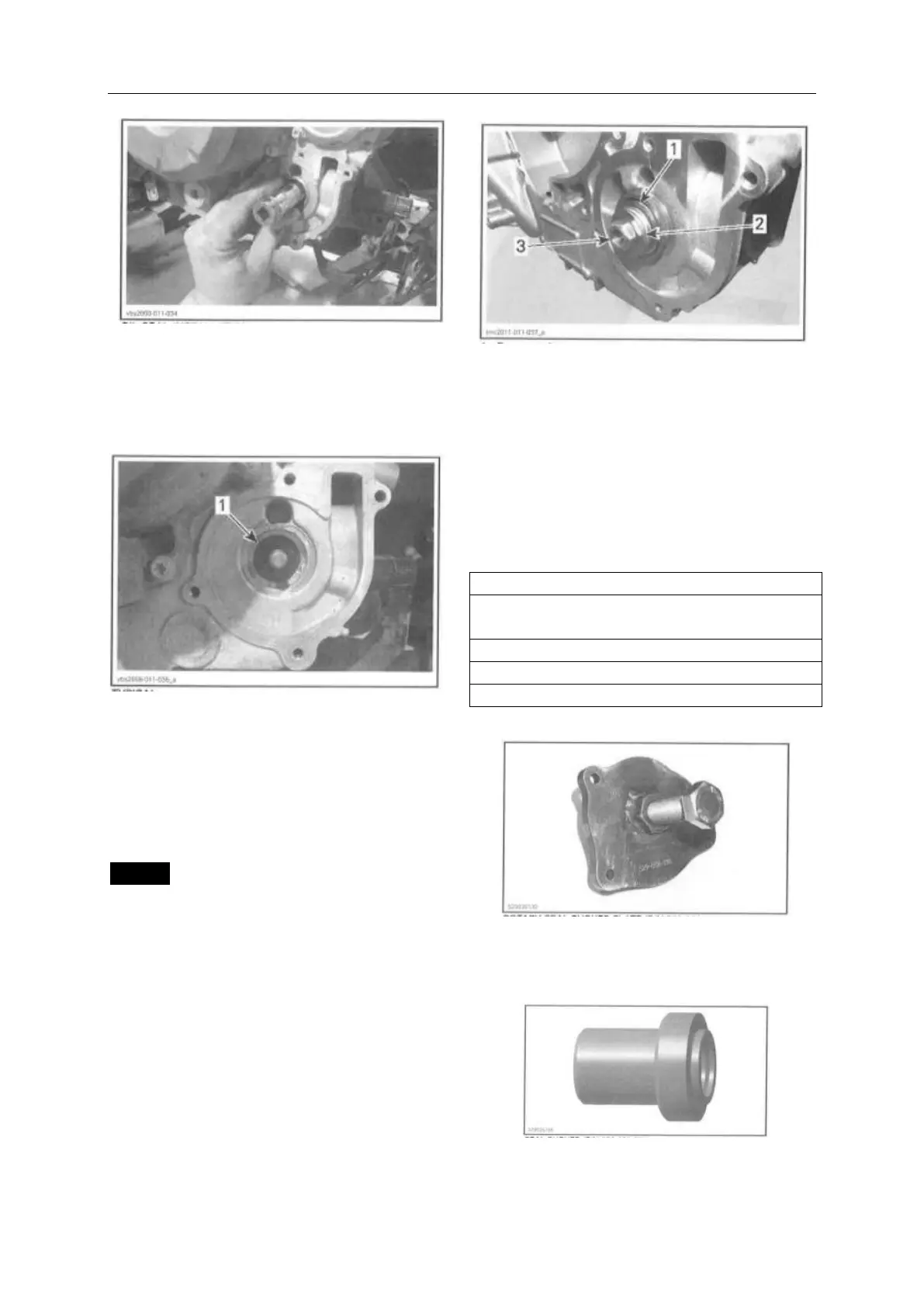

OIL SEAL INSTALLATION
5. Ensure that the oi1 seal is properly seated in
water pump cavity.
TYPICAL
1. Oil seal proper/y seated
6. Apply engine oil on water pump shaft.
7. Place rotary seal onto water pump shaft and pull
out water pump shaft by hand.
NOTICE Do not install the rotary seal completely
into the crankcase to prevent the water pump shaft
plastic gear from breaking. Push it partia1ly in then
pull the shaft.
8. Place a robust M8 flat washer (P/N420227935)
onto water pump shaft.
9. Install a M8×1.25 nut onto water pump shaft by
hand.
10. Then thread nut1-1/2 turns to pull the shaft into
rotary seal.
1. Rotary seal
2. M8 robust flat washer (P/N 420 227 935)
3. M8×1.25 nut (P/N 233 281 414)
11. Remove M8 nut.
NOTE: The robust M8 flat washer remains on
water pump shaft.
12. Install rotary seal installation tools on
crankcase as follows.
REQUIRED TOOLS
ROTARY SEAL PUSHER PLATE
(P/N529 036 130)
4×M6×85 screws(P/N420440347)
4×tubes70mm(2.75in)
SEAL PUSHER(P/N529 035 766)
ROTARY SEAL PUSHER PLATE (P/N529 036
130)
SEAL PUSHER (P/N529 035 766)
