ODES UTV Desertcross 1000cc-3 - Page 53

3. ENGINE
3-
23
WATER PUMP SHAFT PROPERYL ADJUSTED WISH
ROTARY SEAL
NOTICE The water pump shaft must be properly
adjusted with rotary seal.
The water pump shaft must move freely while
pushing it toward the crankcase.
18. Install the following parts, see procedure in this
subsection
- WATER PUMP IMPELLER
- WATER PUMP HOUSING
19. Refill and bleed cooling system. Refer to
PERIODIC MAINTENANCE PRODUCEDURES
subsection.
20. Check cooling system for leaks
Water Pump Shaft and Seals
Replacement (Disassembled Engine)
Water Pump Shaft and Seals Removal
1. Remove the following parts:
- WATER PUMP HOUSING
- WATER PUMP IMPELLER
- WATER PUMP GEARS

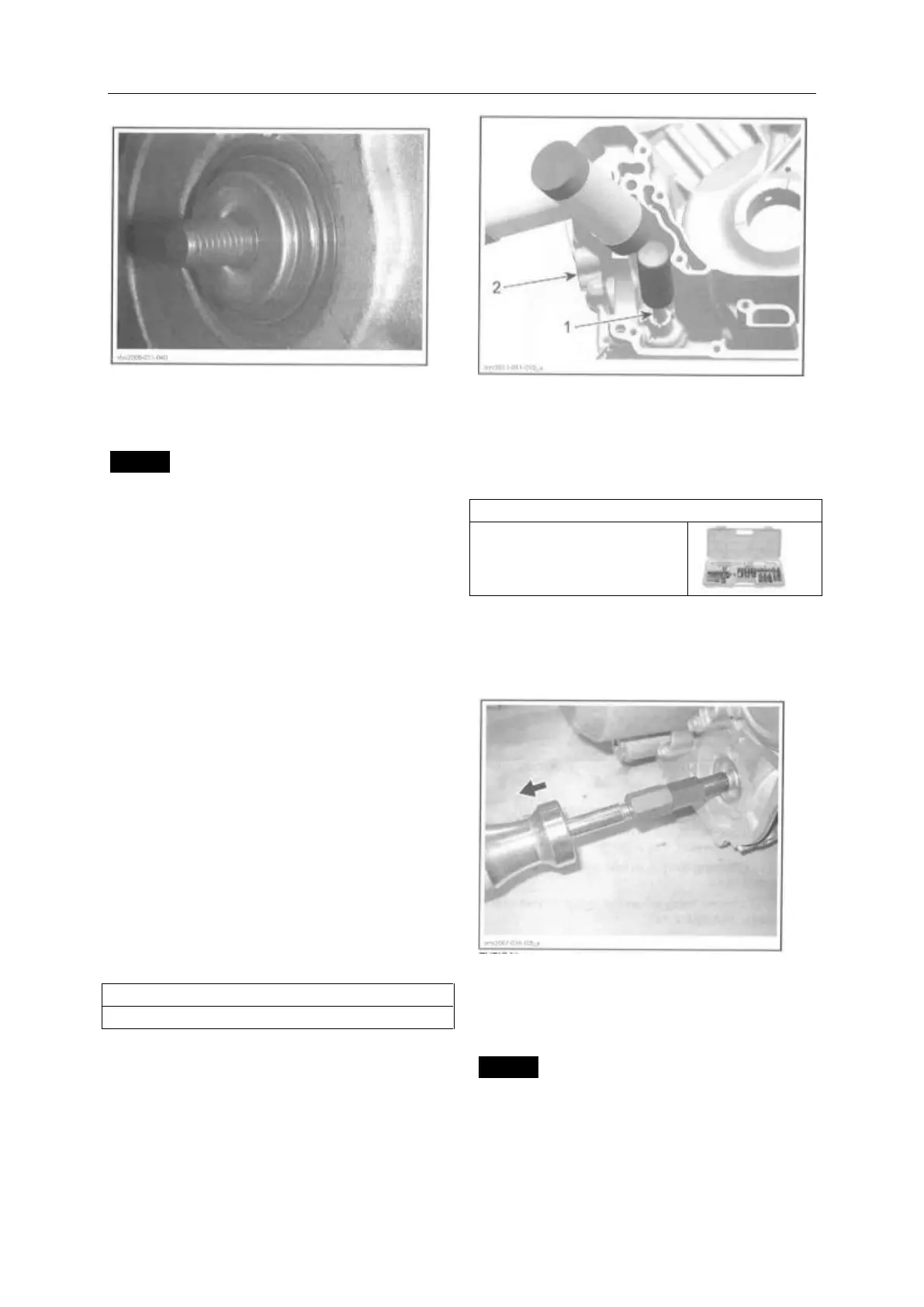

2. Push out water pump shaft with inner portion of
rotary seal from inside of crankcase MAG side.
REQUIED TOOL
Soft hammer
1. Water pump shaft
2. Crankcase MAG side
3. Remove outer part of rotary seal.
REQUIED TOOL
BLAND HOLE PULLER KIT
(P/N 529 036 056)
4. Install expander snugly against outer part of
rotary seal and pu11 seal out.
TYPICAL
5. Remove oil seal from inside of crankcase MAG
side using a pusher tool.
NOTICE Be careful not to damage the rotary
seal surface in crankcase.
