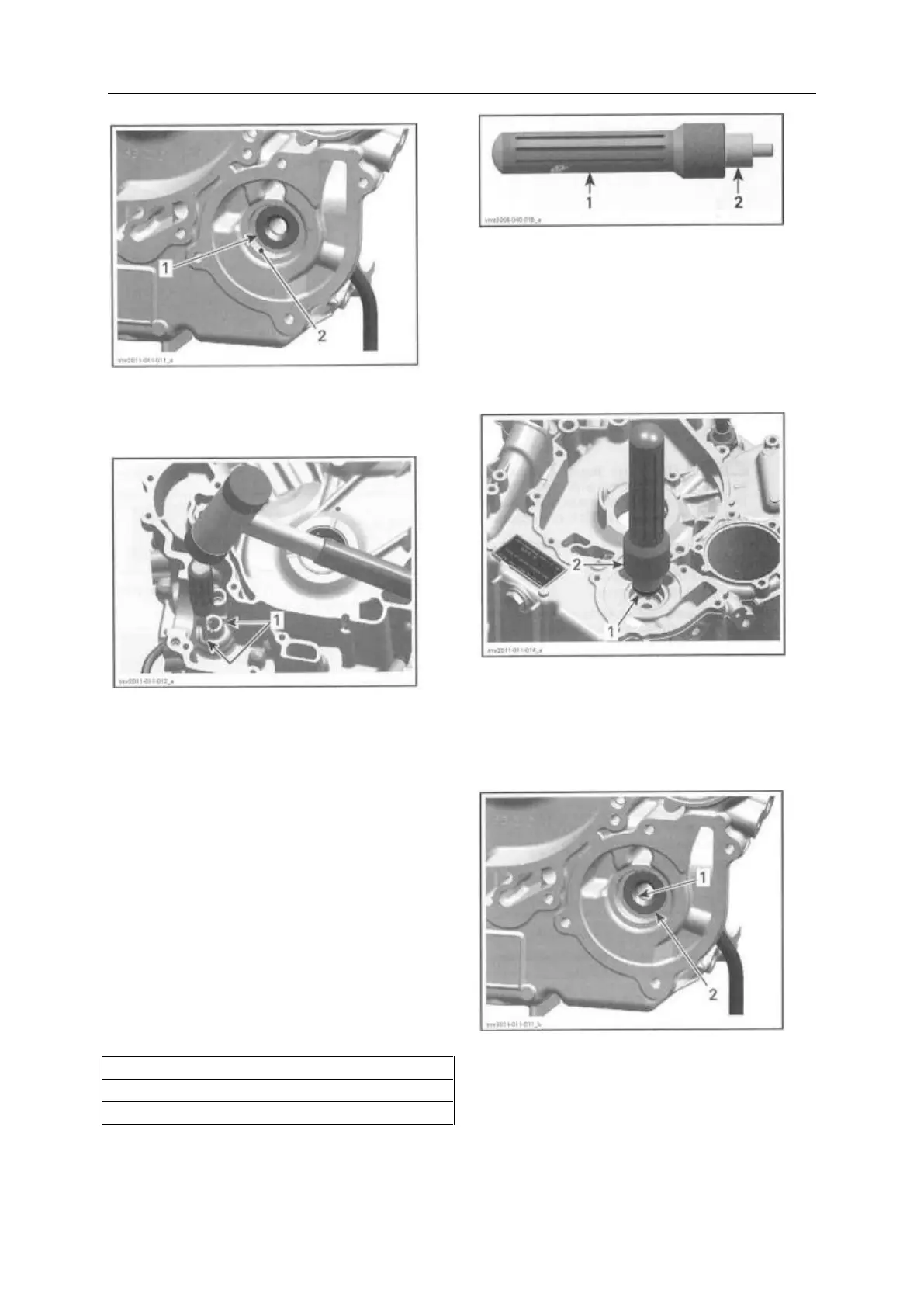

3. ENGINE
3-
1. Oil seal
2. Machined surface for rotary seal
OIL SEAL REMOVAL-FROM INSIDE
CRANKCASE MAG SIDE
1. Orifices for oil seal removal
Water Pump Shaft and Seals Installation
The installation is there verse of the removal
procedure. However, pay attention to the
following.
Use tightening torque values specified in the
exploded view.
NOTE: Never apply oil on the press fit area of the
oil seal and rotary seal.
Clean rotary seal surface of any old sealant.
Install oil seal.
OIL SEAL PUSHER (P/N 529035757)
.
1.Handle
2. Pusher
When installing the oil seal on the pusher, make
sure the sealing lip points outwards.
Push NEW oil seal in place.
1. Oil seal
2. Installer handle with oil seal pusher
Apply DOW CORNING 111 (P/N413 707 000) on
Sealing lip of the oil seal.
1. Sealing lip
2. Oil seal properly installed
Apply engine oil on the water pump shaft and
intermediate shaft.
Slide NEW water pump shaft assembly into
crankcase.
