3. ENGINE
3-

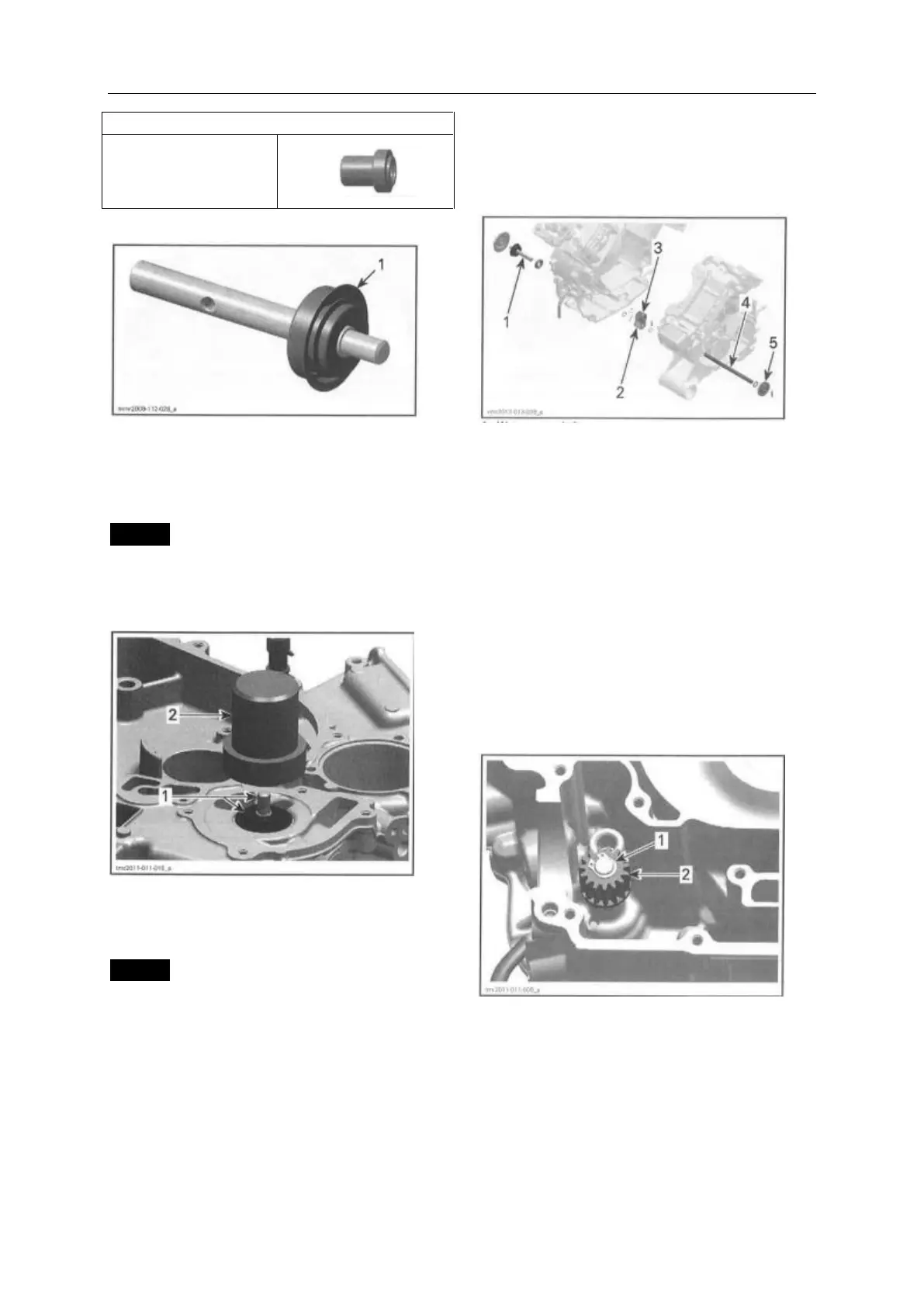

SEAL PUSHER
(P/N 529035766)
7. Surface where rotary seal is pushed by tool
Water Pump Shaft Assembly
NOTICE Never use a hammer for rotary seal
installation. Only use a press to avoid damaging
the ceramic component.
1. Water pump shaft with rotary seal
2. Water pump seal installer
NOTICE After installation, water pump shaft with
rotary seal must rotate freely.
WATER PUMP GEARS
Water Pump Gears Identification
1. Water pump shaft
2. Water pump gear
3. Water pump intermediate drive gear
4. Water pump intermediate shaft
5. Water pump drive gear (see BOTTOM END
subsection
Water Pump Gears Inspection
Water Pump Gear
Inspect water pump gear for wear and damage on
the snap mechanism to the needle pin. Replace if
damaged.
CRANKCASE MAG SIDE
7. Circlip
2. Water pump gear
Water Pump Intermediate Drive Gear
Check water pump intermediate drive gear for
wear or broken teeth. Replace if damaged.
